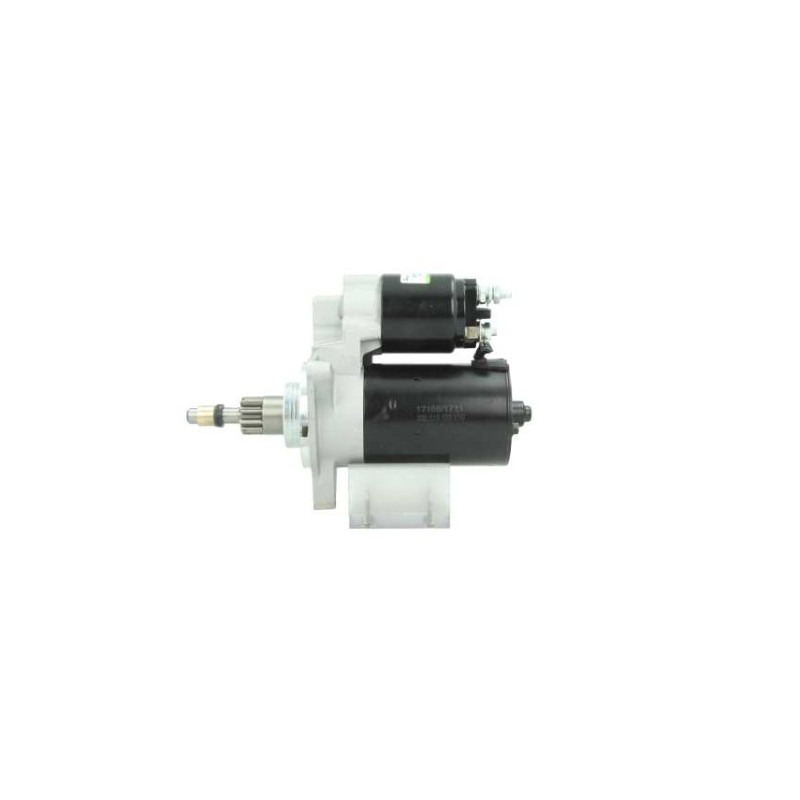

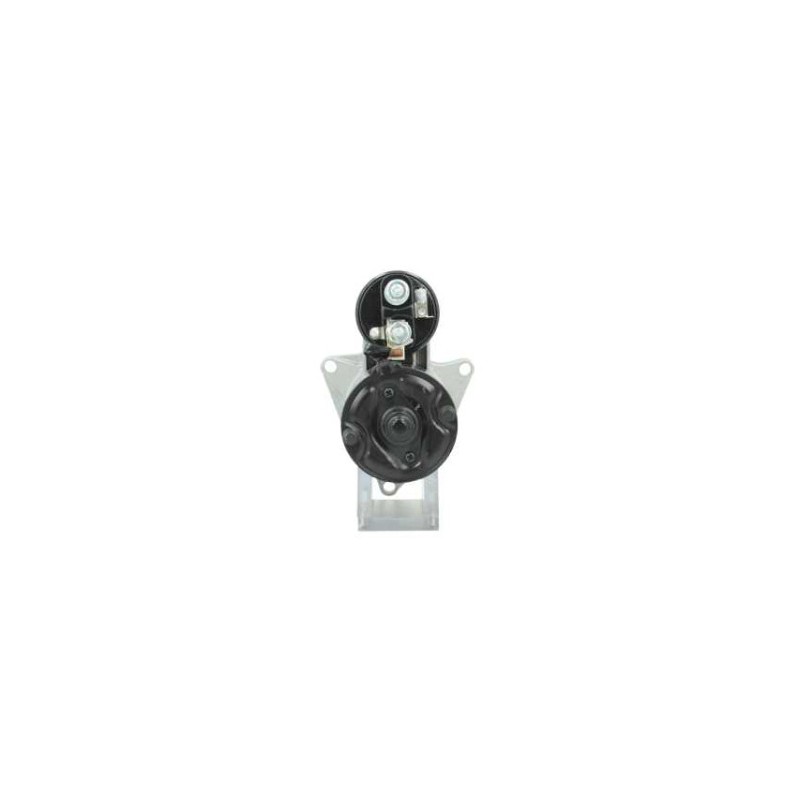

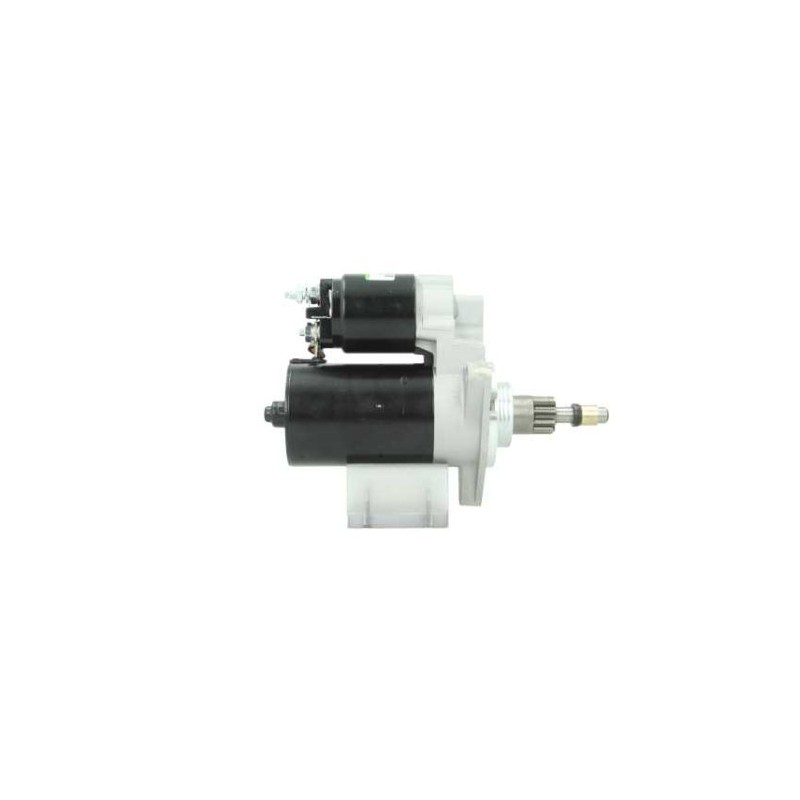

Starter replacing 0001107005 / 0001107006 / 0001108096 / 0001108097 / AZE2640
Starter replacing 0001107005 / 0001107006 / 0001108096 / 0001108097 / AZE2640 / 9141390 / 11131178 / 11.131.178 / 02B911023B /
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 1.1 | |

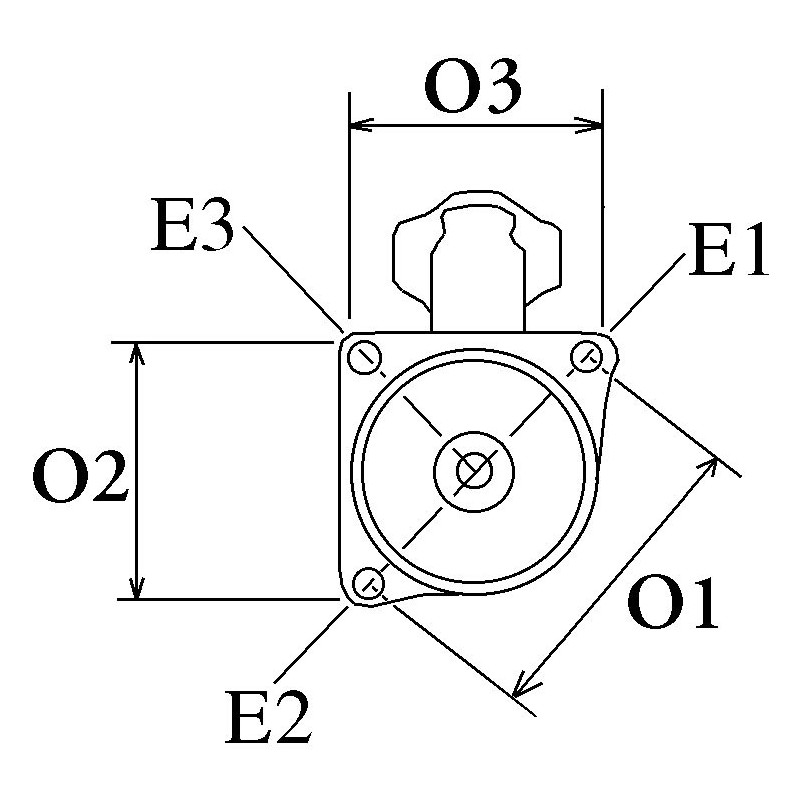

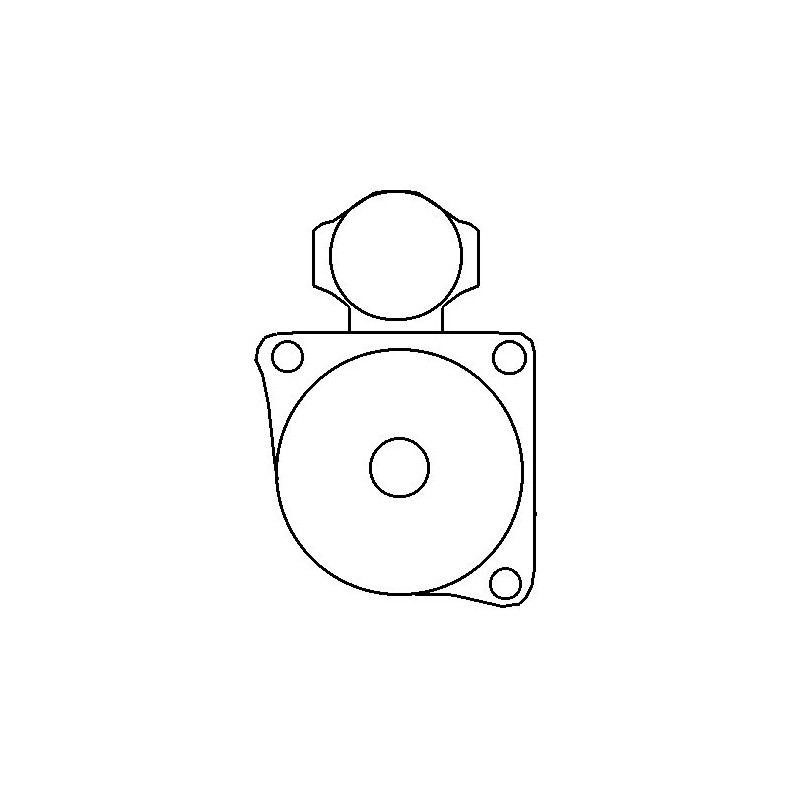

Physical Information | ||
|---|---|---|
| H | Nbr of teeth | 10 |
| P | Rotation | COUNTER CLOCKWISE |
| N | Gear type | Gr |
| A | Mount flange | 76.00 |
| I | B+ | M8 |
| B | Drive distance | 52.00 |
| E | Mounting holes | 9.50 |
| E | Mounting holes 2 | 9.50 |
| E | Mounting holes 3 | 9.50 |
| F | Distance / Back | 159.00 |
| G | Distance / Front | 93.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 100.60 |
| O | Distance 2 | 105.30 |
| O | Distance 3 | 101.00 |
| R | Total length mm | 254.00 |
Replacing | |
|---|---|
| 0001107005 | BOSCH |
| 0001107006 | BOSCH |
| 0001108096 | BOSCH |
| 0001108097 | BOSCH |
| 02B911023B | VOLKSWAGEN |
| 02B911023BX | VOLKSWAGEN |
| 11.131.178 | ISKRA |
| 9141390 | MAGNETON (Pal/SKODA) |
| AZE2640 | ISKRA |
| CS597 | HC-PARTS |
VOLKSWAGEN
| Model | Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Caravelle | Caravelle | 1.8 | Unleaded | 1990 12 | 1992 07 | PD | 49 | 67 | De bus | 1781 | 4 | |||
| Eurovan | Eurovan | 1.8 | Unleaded | 1990 12 | 1992 07 | 49 | 67 | Boîte/Trucksnette | 1781 | 4 | 70A, 70H, 7DA, 7DH | |||
| Multivan | Multivan | 2.0 | Unleaded | 2003 04 | - | AXA | 85 | 115 | MPV | 1984 | 4 | 7HM | ||
| Trans r | Trans r | 2.0 | Unleaded | 1990 07 | 2003 04 | AAC | 62 | 84 | Boîte/Trucksnette | T4 | 1968 | 4 | ||
| Trans r | Trans r | 2.0 | Unleaded | 1990 09 | 2003 04 | AAC | 62 | 84 | De bus | T4 | 1968 | 4 | ||
| Trans r | Trans r | 2.0 | Unleaded | 1990 07 | 2004 03 | AAC | 62 | 84 | Pick-up | T4 | 1968 | 4 | ||
| Trans r | Trans r | 1.8 | Unleaded | 1990 12 | 1992 07 | PD | 49 | 67 | Pick-up | T4 | 1781 | 4 | 70XD |
