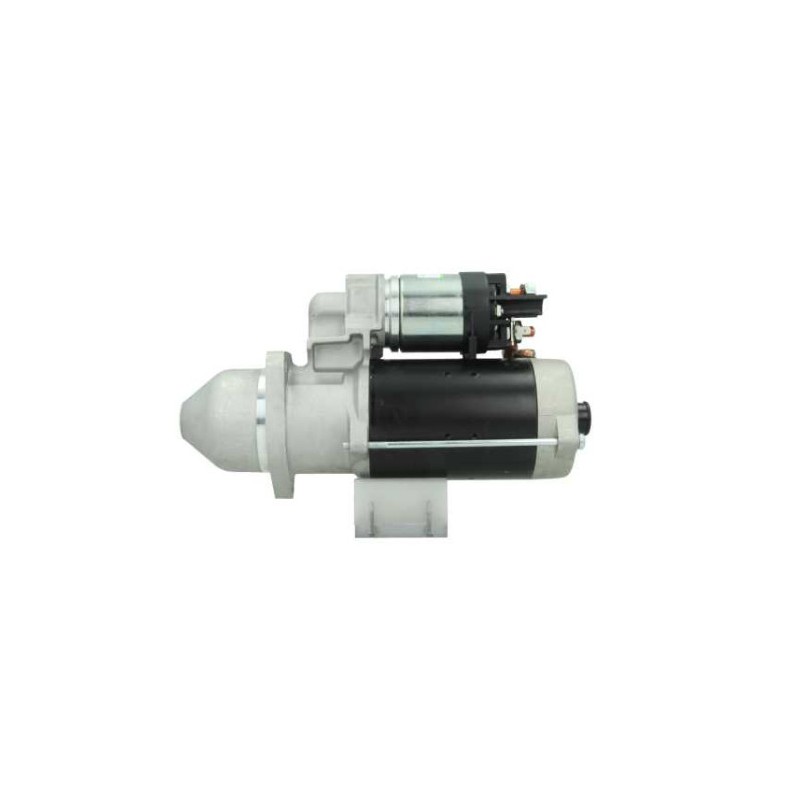

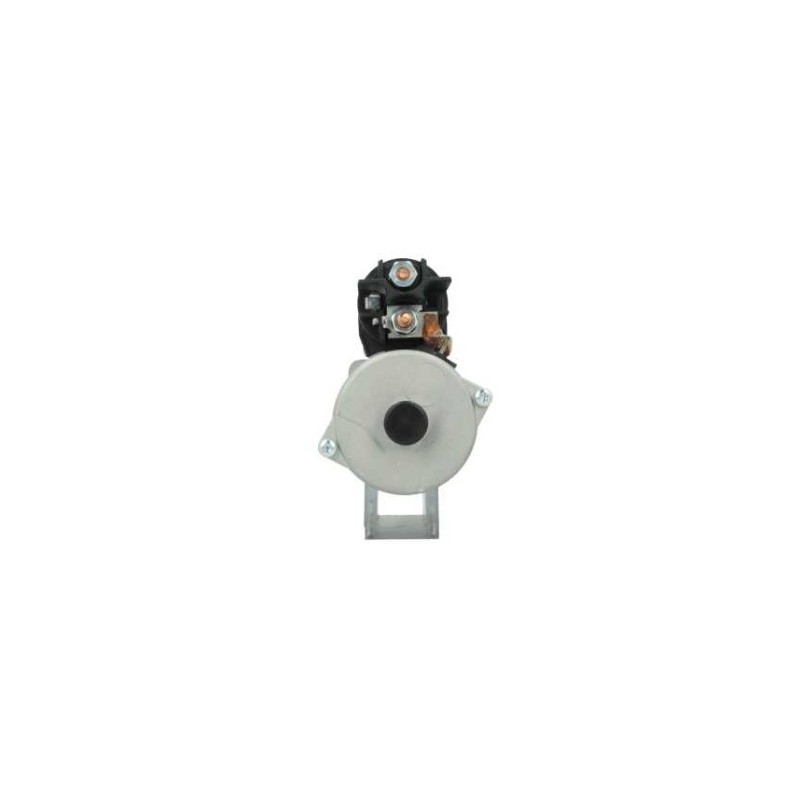

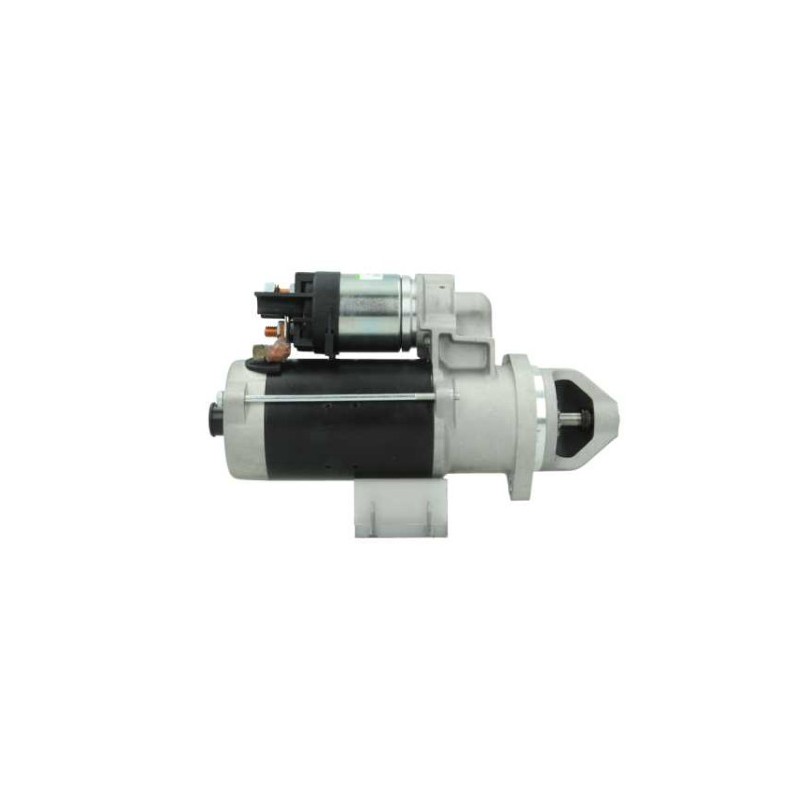

Starter replacing 0001230013 / 01181570 / 01181570KZ / AZF4229 for DEUTZ-fahr / KHD
Starter replacing 0001230013 / 01181570KZ
ISKRA / MAHLE 11.131.645 / 11.131.862 / AZF4167 / AZF4229 / IS1237 / MS67
KHD 1181570 / 1182179 / 1182388 / 4300287
NO CORE EXCHANGE NEEDED
More info
Electrical information | |
|---|---|
| Voltage | 12 |
| Kw | 3.0 |
Catalogue information | |
|---|---|
| Clutch type | Dry |
| Drive type | Steel |

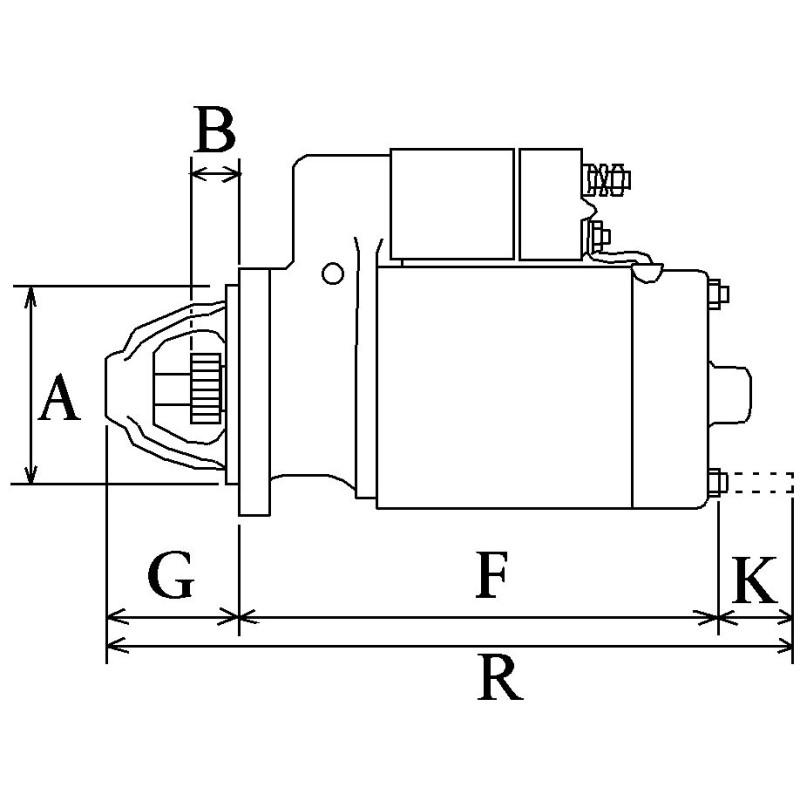

Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |

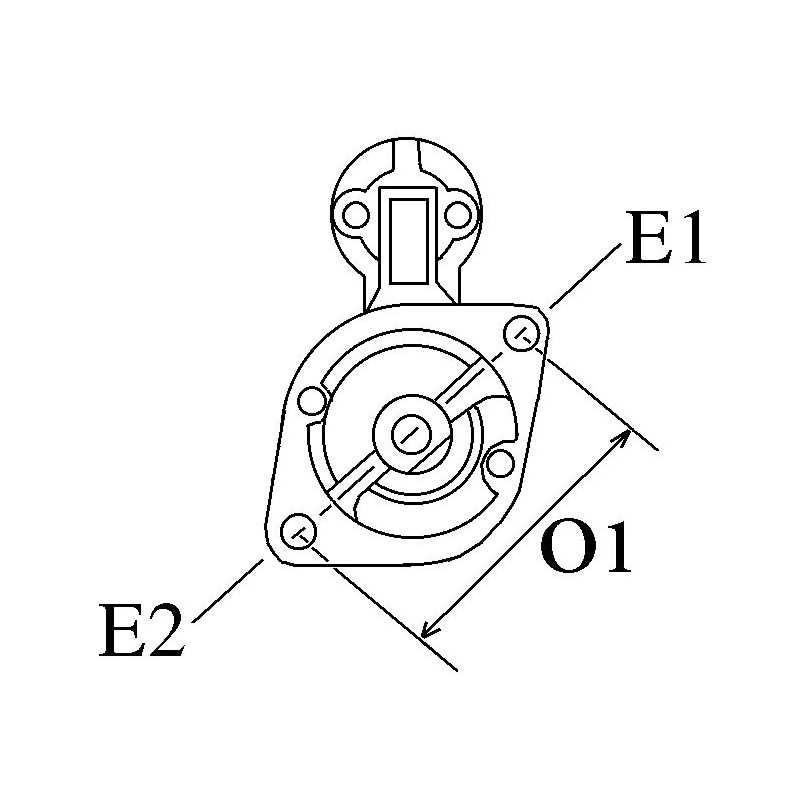

| A | Mount. flange | 82.50 |
| I | B+ | M10 |
| No./mount. holes | 2 (0) | |
| B | Drive dist. | 23.00 |
| E | Mount. holes | 11.00 |
| E | Mount. hole 2 | 11.00 |
| F | Dist./back | 231.50 |
| G | Dist./front | 71.50 |
| O | Dist. mm | 101.50 |
| R | Total length mm | 316.00 |
Replacing | |
|---|---|
| 0001230013 | BOSCH |
| 01181570 | KHD |
| 01181570KZ | KHD |
| 01182179 | KHD |
| 01182388 | KHD |
| 1181570 | KHD |
| 1181570KZ | KHD |
| 1182179 | KHD |
| 1182388 | KHD |
| AZF4229 | ISKRA |
generic brand
Used on :
Atlas Copco
Bomag
Ingersoll-Rand
JCB Machines
JOHN DEERE
KHD
Terex
Thwaites
