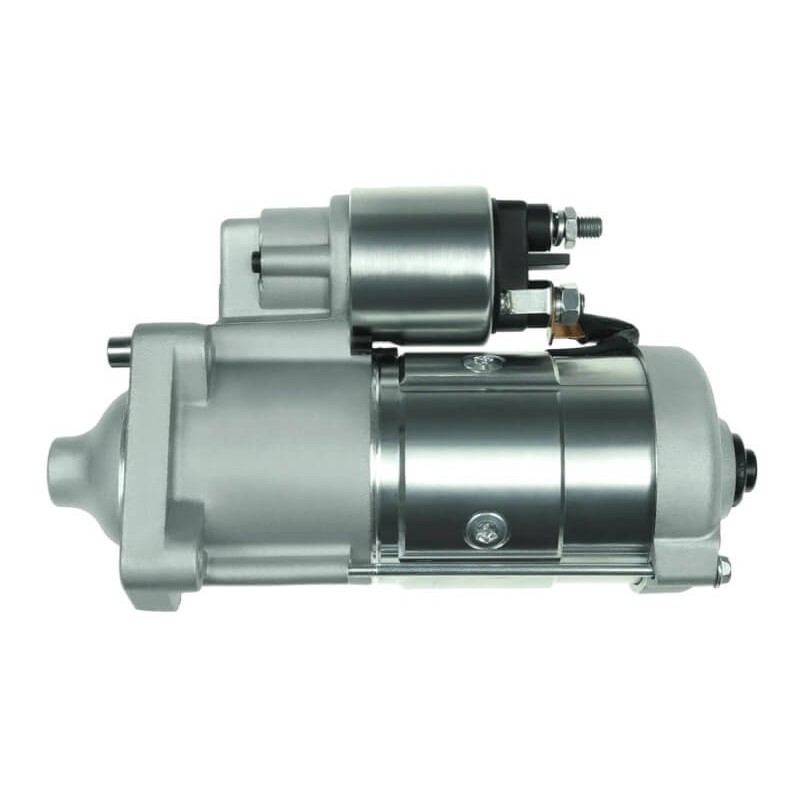

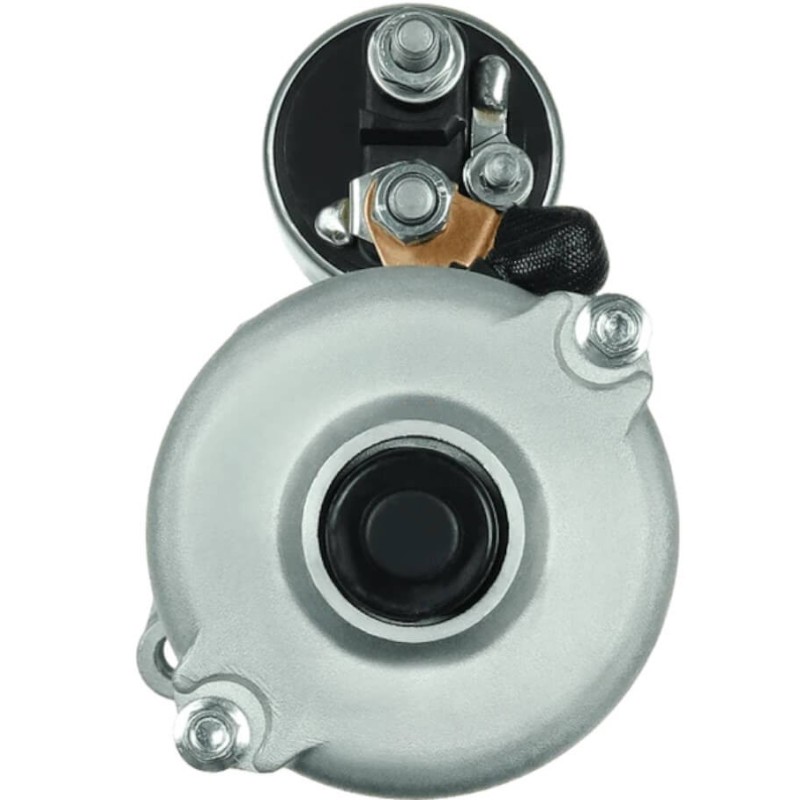

Motorino di avviamento equivalente ESW24E5 / ESW24E50 / 36001705 / 30644954 / 30659475
W116088
12418 | EAI | CST15281AS | CASCO |
20479182 | REAL | CST15281ES | CASCO |
25-4459 | ELSTOCK | CST15281GS | CASCO |
255396R | KUHNER | CST15281OS | CASCO |
255396V | KUHNER | CST15281RS | CASCO |
30601705 | VOLVO | DRS1172 | DELCO |
30644780 | VOLVO | DS2282 | DELCO |
30644954 | VOLVO | ESW24E5 | VALEO |
30659475 | VOLVO | ESW24E50 | VALEO |

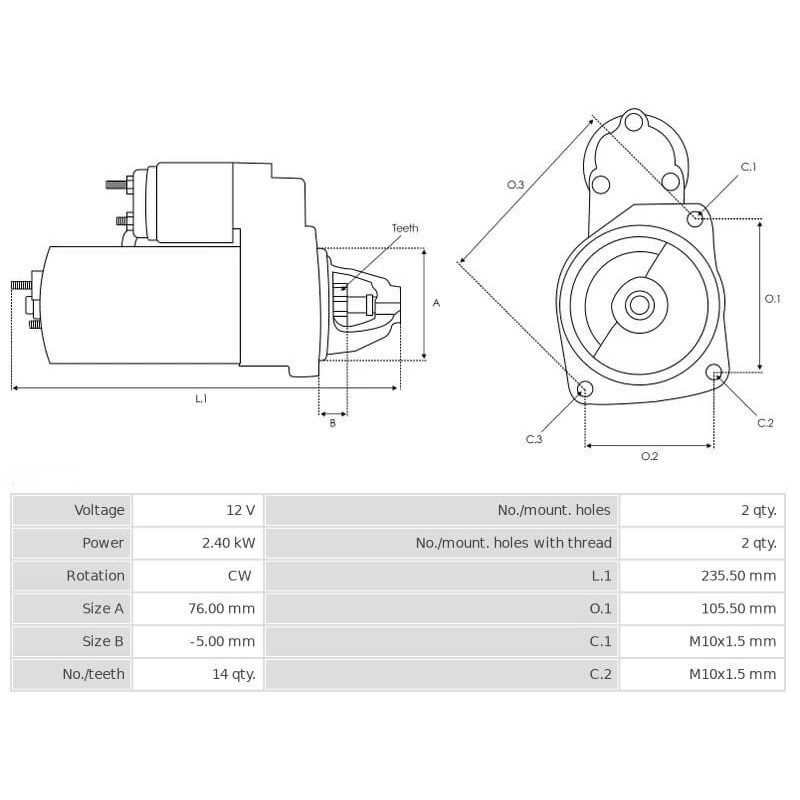

Specifiche tecniche
Informazioni elettriche | |
---|---|
Voltaggio | 12 |
Kw | 2.4 |
Informazioni fisiche | ||
---|---|---|
H | N° denti | 14 |
P | Rotazione | Cr |
N | Tipo ghiera | Gr |
A | Flangia di fissaggio | 76.20 |
I | B+ | M8 |
N° fori di fissaggio | 3 (2) | |
B | Distanza pignone | -5.50 |
E | Foro di fissaggio | M10 |
E | Foro di fissaggio 2 | M10 |
F | Distanza/posteriore | 186.00 |
G | Distanza/anteriore | 33.00 |
M | Supporti di fissaggio | Non |
O | Distanza mm | 105.75 |
marca generica
sostituisce
12418 | EAI | CST15281AS | CASCO |
20479182 | REAL | CST15281ES | CASCO |
25-4459 | ELSTOCK | CST15281GS | CASCO |
255396R | KUHNER | CST15281OS | CASCO |
255396V | KUHNER | CST15281RS | CASCO |
30601705 | VOLVO | DRS1172 | DELCO |
30644780 | VOLVO | DS2282 | DELCO |
30644954 | VOLVO | ESW24E5 | VALEO |
30659475 | VOLVO | ESW24E50 | VALEO |
3240 | CEVAM | LRS03786 | LUCAS |
36001705 | VOLVO | LRS3786 | LUCAS |
36002868 | VOLVO | STRE431 | 3EFFE |
36013580 | VOLVO | STV5240 | KRAUF |
438308 | VALEO | UD14915S | AS-PL |
6015281 | SANDO | VAL438308 | WOODAUTO |
810.540.143 | PSH | VALESW24E50 | WOODAUTO |
88214671 | POWERMAX | STR00344 | ELECTROLOG |
AEY3786 | AUTOELECTRO | STX210326R | STARDAX |
CST15281 | CASCO | STX210326 | STARDAX |
Montaggio su :
Marca | Modello | Typo | Anno | Note |
VOLVO | V60 2.4 D5 AWD | [D5244T10] | 01/01/10 | AT |
VOLVO | V60 2.4 D5 AWD | [D5244T10] | 01/01/10 | ST |
VOLVO | XC60 2.0 D3 | [D5204T7] | 01/01/12 | AT |
VOLVO | XC60 2.0 D3 | [D5204T7] | 01/01/12 | ST |
VOLVO | XC60 2.0 D3 DRIVEe | [D5204T2] | 01.2010-12.2012 | AT |
VOLVO | XC60 2.0 D3 DRIVEe | [D5204T2] | 01.2010-12.2012 | ST |
VOLVO | V70 2.4 D | [D5244T14] | 01.2009-12.2010 | AT |
VOLVO | XC60 2.0 D3 DRIVEe | [D5204T3] | 01.2010-12.2012 | AT |
VOLVO | XC70 2.0 D3 | [D5204T2] | 01/01/11 | AT |
VOLVO | V70 2.4 D | [D5244T14] | 01.2009-12.2010 | ST |
VOLVO | XC60 2.0 D3 DRIVEe | [D5204T3] | 01.2010-12.2012 | ST |
VOLVO | XC70 2.0 D3 | [D5204T2] | 01/01/11 | ST |
VOLVO | XC60 2.0 D4 | [B5204T3] | 01/01/12 | AT |
VOLVO | XC60 2.0 D4 | [B5204T3] | 01/01/12 | ST |
VOLVO | XC70 2.0 D3 | [D5204T3] | 01/01/11 | AT |
VOLVO | XC70 2.0 D3 | [D5204T3] | 01/01/11 | ST |
VOLVO | V70 2.4 D | [D5244T5] | 01.2007-12.2009 | AT |
VOLVO | V70 2.4 D | [D5244T5] | 01.2007-12.2009 | ST |
VOLVO | XC70 2.4 D | [D5244T14] | 01.2007-12.2011 | AT |
VOLVO | XC70 2.4 D | [D5244T14] | 01.2007-12.2011 | ST |
VOLVO | V40 2.0 D3 | [D5204T6] | 01/01/12 | AT |
VOLVO | V40 2.0 D3 | [D5204T6] | 01/01/12 | ST |
VOLVO | XC70 2.4 D | [D5244T5] | 01.2007-12.2011 | AT |
VOLVO | XC70 2.4 D | [D5244T5] | 01.2007-12.2011 | ST |
VOLVO | V40 2.0 D3 | [D5204T6] | 01/01/13 | AT |
VOLVO | V40 2.0 D3 | [D5204T6] | 01/01/13 | ST |
VOLVO | V40 2.0 D4 | [D5204T4] | 01/01/12 | AT |
VOLVO | V40 2.0 D4 | [D5204T4] | 01/01/12 | ST |
VOLVO | V70 2.4 D4 AWD | [D5244T12] | 01/01/13 | AT |
VOLVO | V70 2.4 D4 AWD | [D5244T12] | 01/01/13 | ST |
VOLVO | V40 2.0 D4 | [D5204T4] | 01/01/13 | AT |
VOLVO | V40 2.0 D4 | [D5204T4] | 01/01/13 | ST |
VOLVO | V70 2.4 D4 AWD | [D5244T17] | 01/01/13 | AT |
VOLVO | V60 2.0 D3 | [D5204T2] | 01.2010-12.2011 | AT |
VOLVO | V70 2.4 D4 AWD | [D5244T17] | 01/01/13 | ST |
VOLVO | XC70 2.4 D4 | [D5244T12] | 01/01/11 | AT |
VOLVO | V60 2.0 D3 | [D5204T2] | 01.2010-12.2011 | ST |
VOLVO | XC70 2.4 D4 | [D5244T12] | 01/01/11 | ST |
VOLVO | XC70 2.4 D4 | [D5244T5] | 01/01/11 | AT |
VOLVO | XC70 2.4 D4 | [D5244T5] | 01/01/11 | ST |
VOLVO | V70 2.4 D5 | [D5244T10] | 01.2009-12.2011 | AT |
VOLVO | V70 2.4 D5 | [D5244T10] | 01.2009-12.2011 | ST |
VOLVO | V60 2.0 D3 | [D5204T7] | 01/01/12 | AT |
VOLVO | V70 2.4 D5 | [D5244T11] | 01/01/11 | AT |
VOLVO | V60 2.0 D3 | [D5204T7] | 01/01/12 | ST |
VOLVO | V70 2.4 D5 | [D5244T11] | 01/01/11 | ST |
VOLVO | V70 2.0 D3 | [D5204T2] | 01.2010-12.2011 | AT |
VOLVO | V70 2.0 D3 | [D5204T2] | 01.2010-12.2011 | ST |
VOLVO | V70 2.4 D5 | [D5244T15] | 01/01/11 | AT |
VOLVO | V70 2.4 D5 | [D5244T15] | 01/01/11 | ST |
VOLVO | XC70 2.4 D5 | [D5244T10] | 01.2007-12.2011 | AT |
VOLVO | XC70 2.4 D5 | [D5244T10] | 01.2007-12.2011 | ST |
VOLVO | XC70 2.4 D5 | [D5244T11] | 01/01/11 | AT |
VOLVO | XC70 2.4 D5 | [D5244T11] | 01/01/11 | ST |
VOLVO | V70 2.0 D3 | [D5204T7] | 01/01/12 | AT |
VOLVO | XC60 2.4 D AWD | [D5244T16] | 01.2009-12.2011 | AT |
VOLVO | XC70 2.4 D5 | [D5244T15] | 01/01/11 | AT |
VOLVO | V70 2.0 D3 | [D5204T7] | 01/01/12 | ST |
VOLVO | XC60 2.4 D AWD | [D5244T16] | 01.2009-12.2011 | ST |
VOLVO | XC70 2.4 D5 | [D5244T15] | 01/01/11 | ST |
VOLVO | V60 2.0 D4 | [D5204T3] | 01/01/11 | AT |
VOLVO | XC70 2.4 D5 | [D5244T20] | 01/01/15 | AT |
VOLVO | V60 2.0 D4 | [D5204T3] | 01/01/11 | ST |
VOLVO | XC70 2.4 D5 | [D5244T20] | 01/01/15 | ST |
VOLVO | XC60 2.4 D AWD | [D5244T5] | 01.2009-12.2011 | AT |
VOLVO | XC70 2.4 D5 | [D5244T4] | 01.2007-12.2011 | AT |
VOLVO | XC60 2.4 D AWD | [D5244T5] | 01.2009-12.2011 | ST |
VOLVO | XC70 2.4 D5 | [D5244T4] | 01.2007-12.2011 | ST |
VOLVO | V70 2.4 D5 | [D5244T4] | 01.2007-12.2009 | AT |
VOLVO | V70 2.4 D5 | [D5244T4] | 01.2007-12.2009 | ST |
VOLVO | XC60 2.4 D DRIVe | [D5244T14] | 01.2009-12.2010 | AT |
VOLVO | XC60 2.4 D DRIVe | [D5244T14] | 01.2009-12.2010 | ST |
VOLVO | XC60 2.4 D4 AWD | [D5244T12] | 01/01/11 | AT |
VOLVO | S60 2.4 D5 | [D5244T23] | 01/01/14 | ST |
VOLVO | V70 2.4 D5 AWD | [D5244T10] | 01.2009-12.2011 | AT |
VOLVO | XC60 2.4 D4 AWD | [D5244T12] | 01/01/11 | ST |
VOLVO | V70 2.4 D5 AWD | [D5244T10] | 01.2009-12.2011 | ST |
VOLVO | V70 2.4 D5 AWD | [D5244T15] | 01/01/11 | AT |
VOLVO | V70 2.4 D5 AWD | [D5244T15] | 01/01/11 | ST |
VOLVO | XC60 2.4 D4 AWD | [D5244T17] | 01/01/11 | AT |
VOLVO | XC60 2.4 D4 AWD | [D5244T17] | 01/01/11 | ST |
VOLVO | S60 2.4 D5 AWD | [D5244T23] | 01/01/14 | ST |
VOLVO | V70 2.4 D5 AWD | [D5244T4] | 01.2007-12.2009 | AT |
VOLVO | V70 2.4 D5 AWD | [D5244T4] | 01.2007-12.2009 | ST |
VOLVO | V60 2.4 D4 AWD | [D5244T12] | 01/01/13 | AT |
VOLVO | V60 2.4 D4 AWD | [D5244T12] | 01/01/13 | ST |
VOLVO | V60 2.4 D4 AWD | [D5244T17] | 01/01/12 | AT |
VOLVO | V60 2.4 D4 AWD | [D5244T17] | 01/01/12 | ST |
VOLVO | V60 2.4 D5 | [D5244T10] | 01/01/10 | AT |
VOLVO | V60 2.4 D5 | [D5244T10] | 01/01/10 | ST |
VOLVO | XC60 2.4 D5 AWD | [D5244T4] | 01/01/09 | AT |
VOLVO | XC60 2.4 D5 AWD | [D5244T4] | 01/01/09 | ST |
