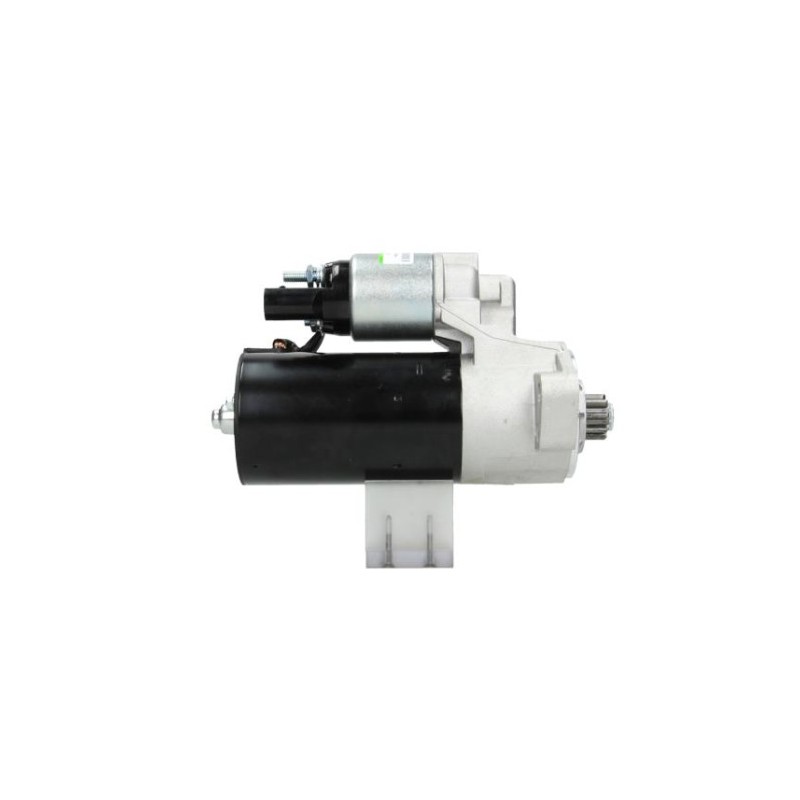

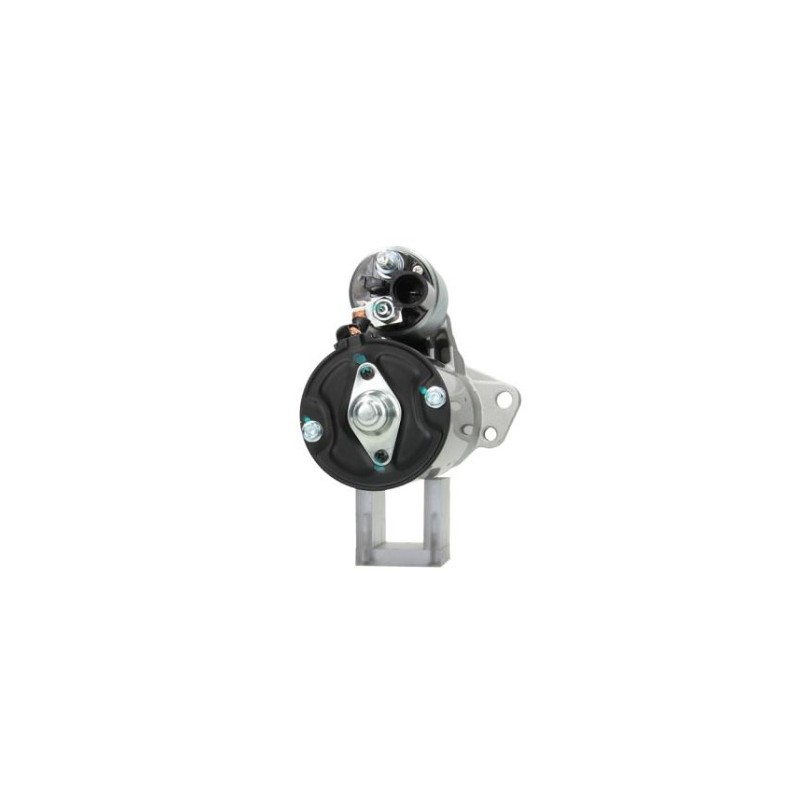

Starter replacing 0001125519 / 0001125520 / 059911023S / 059911023SX / 059911024J
Starter replacing 0001125519 / 0001125520 / VW 059911023S / 059911023SX / 059911024J /059911024JX
DELCO REMY DRS0566 / LUCAS LRS02330
NO CORE EXCHANGE NEEDED
More info
caractéristiques

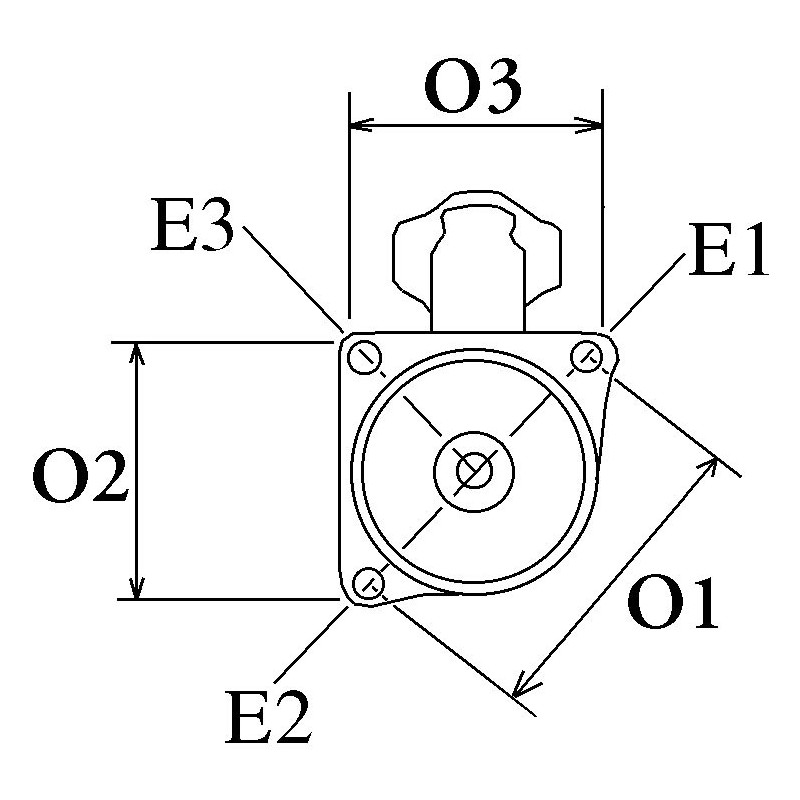

Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 76.20 |
| I | B+ | M8 |
| No./mount. holes | 3 (1) | |
| B | Drive dist. | 25.00 |
| E | Mount. holes | 11.00 |
| E | Mount. hole 2 | M10 |
| E | Mount. hole 3 | 10.50 |
| F | Dist./back | 183.00 |
| G | Dist./front | 188.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 101.50 |
| O | Dist. 2 | 24.00 |
| O | Dist. 3 | 104.50 |
| R | Total length mm | 230.00 |
generic brand
replacing
| 0001125519 | BOSCH |
| 0001125520 | BOSCH |
| 0001125521 | BOSCH |
| 059911023S | VW |
| 059911023SX | VW |
| 059911024C | VW |
| 059911024JX | VW |
| 11090174 | EuroTec |
| 11090187 | EuroTec |
| 114690 | Cargo |
| 1205035 | PIC |
| 12103 | EAI |
| 254002 | Elstock |
| 300577093 | PSH |
| 3066 | CEVAM |
| 33330 | Lester |
| 910566 | EDR |
| A79140 | ATL |
| CS1521 | HC |
| DRS0566 | DELCO REMY |
| LRS02330 | LUCAS |
| OSM11850 | Optimum |
| STR1751SA | Electrolog |
| STR2291 | UNIPOINT |
