Alternator for PEUGEOT / CITROEN
Alternator replacing VALEO TG15C135 / TG15C189 / TG15C211
€158.90
(2 reviews)

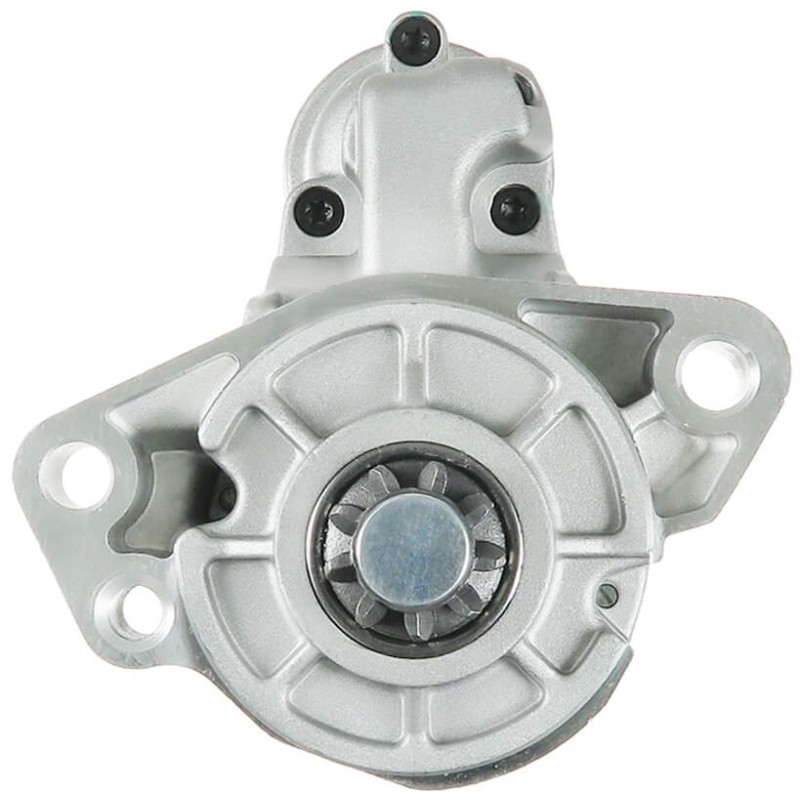

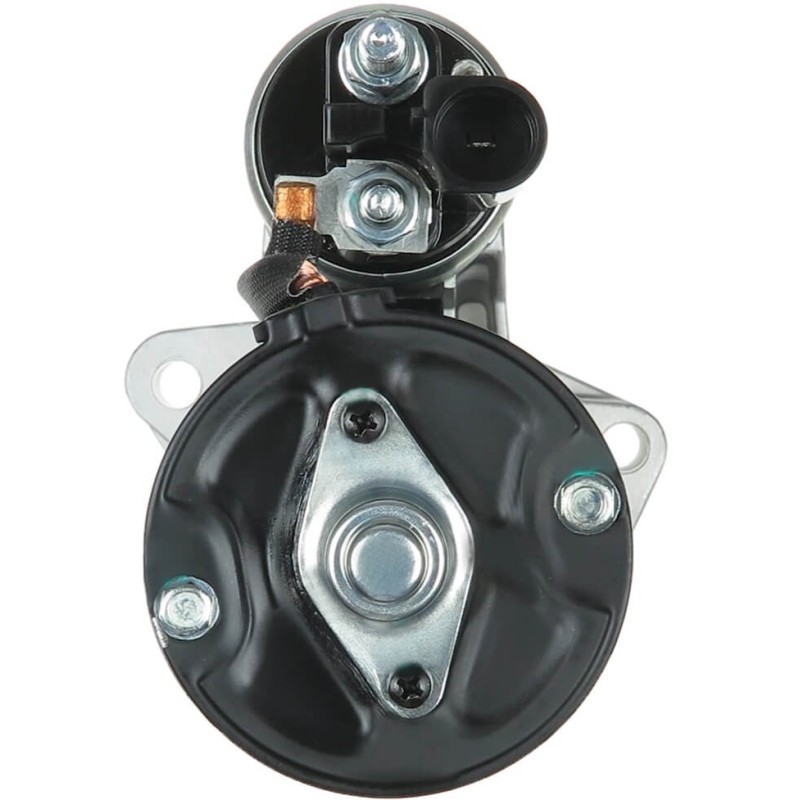

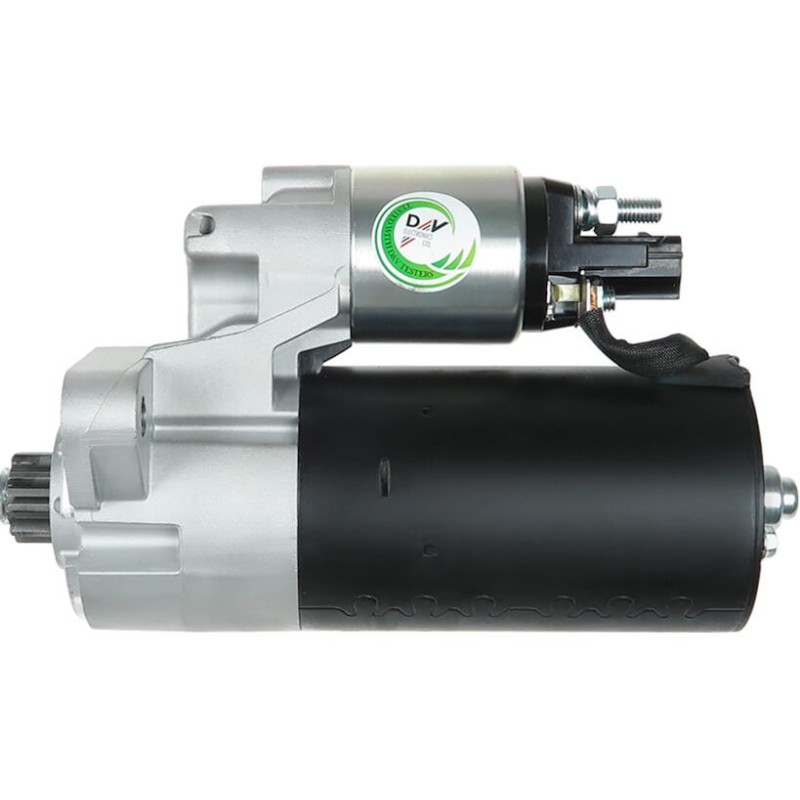

Starter replacing 0001125519 / 0001125520 / 059911023S / 059911023SX / 059911024J for Q7 / TOUAREG / CAYENNE
w114690
Starter replacing 0001125519 / 0001125520 / VW 059911023S / 059911023SX / 059911024J /059911024JX
DELCO REMY DRS0566 / LUCAS LRS02330
12 Volts / 2 kW / 9 teeth
Different mounting configurations exist for this type of vehicle; please verify compatibility with your part number before purchasing.
If in doubt, please do not hesitate to contact us.
NO CORE EXCHANGE NEEDED
Reference
| 0001125519 | BOSCH | 3066 | CEVAM |
| STRS320 | 3EFFE | CMA-621104 | COMLINE |
| AZMT-53-010-1352 | A.Z. MEISTERTEILE | DRS0566 | DELCO |
| AC-CBS1521 | ACAUTO | 311246092 | DRI |
| AC-CBS5786 | ACAUTO | 12103 | EAI |
| 10439623 | ALANKO | STR1751 | ELECTROLOG |
| ANM12786X | ANDEL | STR1762 | ELECTROLOG |
| ANM12786 | ANDEL | 25-4002 | ELSTOCK |
| A79140 | ATL AUTOTECHNIK | 220683 | ERA |
| AEY2330 | AUTOELECTRO | 220683A | ERA |
| SBO368 | AUTOTEAM | 1638121280 | EUROREPAR |
| SBO368A | AUTOTEAM | 11090174 | EUROTEC |
| 0001125520 | BOSCH | 8080392 | FRIESEN |
| 0001125521 | BOSCH | SG0595 | GHIBAUDI |
| 1986S00820 | BOSCH | CS1521 | HC PARTS |
| S100422 | BTS TURBO | 3116919 | HENKEL PARTS |
| S104699 | BTS TURBO | H5010381 | HOFFER |
| 114690 | CARGO | 10010368AV | ITAB AUTOMOTIVE |
| CST10368AS | CASCO | 254305 | KUHNER |
| CST10368GS | CASCO | 254305B | KUHNER |
| 3066 | CEVAM | 254373 | KUHNER |
| CMA-621104 | COMLINE | 254373B | KUHNER |
| DRS0566 | DELCO | 254430 | KUHNER |
| 311246092 | DRI | 254430B | KUHNER |
| 12103 | EAI | 254305S | KUHNER |
| STR1751 | ELECTROLOG | 22.3082M | CQ |
| STR1762 | ELECTROLOG | 332265 | LOGISTIK |
| 25-4002 | ELSTOCK | LRS02330 | LUCAS |
| 220683 | ERA | LRS2330 | LUCAS |
| 220683A | ERA | 943215211010 | MAGNETI MARELLI |
| 1638121280 | EUROREPAR | 944280803920 | MAGNETI MARELLI |
| 11090174 | EUROTEC | MRS80392 | MAGNETI MARELLI |
| 8080392 | FRIESEN | 5010381 | MEAT & DORIA |
| SG0595 | GHIBAUDI | 5010381G | MEAT & DORIA |
| CS1521 | HC PARTS | 12138049 | MTR |
| 3116919 | HENKEL PARTS | 95560410800 | PORSCHE |
| H5010381 | HOFFER | IR8018 | PROTECH |
| 10010368AV | ITAB AUTOMOTIVE | 300.577.093.010 | WAI |
| 254305 | KUHNER | 300.577.093.281 | WAI |
| 254305B | KUHNER | 20401863BN | REAL |
| 254373 | KUHNER | 20401863OE | REAL |
| 254373B | KUHNER | 2S0168 | RIDEX |
| 254430 | KUHNER | RNL125519 | RNL |
| 254430B | KUHNER | 6010368.0 | SANDO |
| 254305S | KUHNER | 6010368.1 | SANDO |
| 22.3082M | CQ | S12BH0252A2 | SIDAT |
| 332265 | LOGISTIK | S12BH0252 | SIDAT |
| LRS02330 | LUCAS | VW9086 | SNRA |
| LRS2330 | LUCAS | STX200201R | STARDAX |
| 943215211010 | MAGNETI MARELLI | STX200214 | STARDAX |
| 944280803920 | MAGNETI MARELLI | STX200600 | STARDAX |
| MRS80392 | MAGNETI MARELLI | STX200189 | STARDAX |
| 5010381 | MEAT & DORIA | STX200201 | STARDAX |
| 5010381G | MEAT & DORIA | STX200189R | STARDAX |
| 12138049 | MTR | 103ST21 | STARTCAR |
| 95560410800 | PORSCHE | ST01529 | TMI |
| IR8018 | PROTECH | 059911023S | VW |
| 300.577.093.010 | WAI | 059911023SX | VW |
| 300.577.093.281 | WAI | 059911024CX | VW |
| 20401863BN | REAL | 059911024J | VW |
| 20401863OE | REAL | 059911024JX | VW |
| 2S0168 | RIDEX | 059911023J | VW |
| RNL125519 | RNL | 059911024C | VW |
| 6010368.0 | SANDO | 056911024J | VW |
| 6010368.1 | SANDO | 059911024E | VW |
| S12BH0252A2 | SIDAT | 059911024EX | VW |
| S12BH0252 | SIDAT | 059911024H | VW |
| VW9086 | SNRA | 059911024HX | VW |
| STX200201R | STARDAX | UNIT BOM 120-5035 | WAI |
| STX200214 | STARDAX | 33330R | WAI |
| STX200600 | STARDAX | WG2013245 | WILMINK GROUP |
| STX200189 | STARDAX | BOS0001125519 | WOODAUTO |
| STX200201 | STARDAX | STR50544 | WOODAUTO |
| STX200189R | STARDAX | S0213 | AS-PL |
| 103ST21 | STARTCAR | PRSS320 | 3EFFE |
| ST01529 | TMI | F032114690 | CARGO |
| 059911023S | VW | F032114690 | CARGO |
| 059911023SX | VW | S132.510 | WAI |
| 059911024CX | VW | S145.725 | WAI |
| 059911024J | VW | S132.510 | WAI |
| 059911024JX | VW | S145.725 | WAI |
| 059911023J | VW | ANM12786X | ANDEL |
| 059911024C | VW | ANM12786 | ANDEL |
| 056911024J | VW | A79140 | ATL AUTOTECHNIK |
| 059911024E | VW | AEY2330 | AUTOELECTRO |
| 059911024EX | VW | SBO368 | AUTOTEAM |
| 059911024H | VW | SBO368A | AUTOTEAM |
| 0001125519 | BOSCH | 0001125520 | BOSCH |
| 059911024HX | VW | 0001125521 | BOSCH |
| UNIT BOM 120-5035 | WAI | 1986S00820 | BOSCH |
| 33330R | WAI | S100422 | BTS TURBO |
| WG2013245 | WILMINK GROUP | S104699 | BTS TURBO |
| BOS0001125519 | WOODAUTO | 114690 | CARGO |
| STR50544 | WOODAUTO | CST10368AS | CASCO |
| STRS320 | 3EFFE | CST10368GS | CASCO |
| AZMT-53-010-1352 | A.Z. MEISTERTEILE | ||
| AC-CBS1521 | ACAUTO | ||
| AC-CBS5786 | ACAUTO | ||
| 10439623 | ALANKO |
Features
caractéristiques

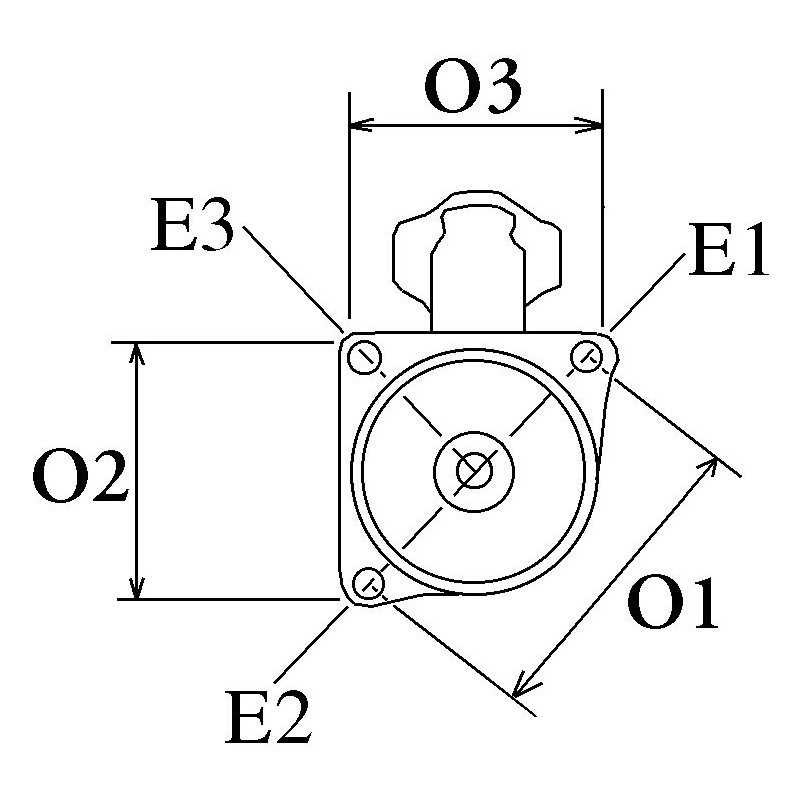

Physical information |
||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 76.20 |
| I | B+ | M8 |
| No./mount. holes | 3 (1) | |
| B | Drive dist. | 25.00 |
| E | Mount. holes | 11.00 |
| E | Mount. hole 2 | M10 |
| E | Mount. hole 3 | 10.50 |
| F | Dist./back | 183.00 |
| G | Dist./front | 188.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 101.50 |
| O | Dist. 2 | 24.00 |
| O | Dist. 3 | 104.50 |
| R | Total length mm | 230.00 |
generic brand
replacing
| 0001125519 | BOSCH |
| 0001125520 | BOSCH |
| 0001125521 | BOSCH |
| 059911023S | VW |
| 059911023SX | VW |
| 059911024C | VW |
| 059911024JX | VW |
| 11090174 | EuroTec |
| 11090187 | EuroTec |
| 114690 | Cargo |
| 1205035 | PIC |
| 12103 | EAI |
| 254002 | Elstock |
| 300577093 | PSH |
| 3066 | CEVAM |
| 33330 | Lester |
| 910566 | EDR |
| A79140 | ATL |
| CS1521 | HC |
| DRS0566 | DELCO REMY |
| LRS02330 | LUCAS |
| OSM11850 | Optimum |
| STR1751SA | Electrolog |
| STR2291 | UNIPOINT |
Mounting on
| Brand | Model | Typ | Year |
| AUDI | Q7 (4LB) 3.0 TDI quattro | BUG | 03.2006 - 05.2008 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | BUG | 03.2006 - 05.2008 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | BUN | 03.2006 - 05.2010 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | BUN | 03.2006 - 05.2010 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CASA | 11.2007 - 08.2015 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | CASA | 11.2007 - 05.2012 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | CASB | 03.2006 - 05.2010 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CASB | 03.2006 - 05.2010 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CATA | 06.2009 - 05.2012 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | CCMA | 11.2007 - 05.2012 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CCMA | 11.2007 - 08.2015 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CJGA | 11.2007 - 08.2015 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | CJGA | 11.2007 - 05.2012 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CJGC | 05.2010 - 08.2015 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CJGD | 05.2011 - 08.2015 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | CJMA | 11.2010 - 08.2015 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CJMA | 05.2010 - 08.2015 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | CLZB | 05.2011 - 08.2015 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CLZB | 05.2011 - 08.2015 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CNRB | 11.2007 - 08.2015 |
| AUDI | Q7 (4LB) 3.0 TDI quattro | CRCA | 05.2011 - 08.2015 |
| AUDI | Q7 Van (4LB) 3.0 TDI quattro | CRCA | 05.2011 - 08.2015 |
| PORSCHE | CAYENNE (92A) 3.0 Diesel | M05.9E | 01/06/10 |
| PORSCHE | CAYENNE (92A) 3.0 Diesel | MCN.RB | 01/06/10 |
| PORSCHE | CAYENNE (92A) 3.0 Diesel | MCR.CB | 01/06/10 |
| PORSCHE | CAYENNE (92A) 3.0 Diesel | MCV.VA | 01/10/14 |
| PORSCHE | CAYENNE (92A) 3.0 Diesel | MCV.VB | 01/08/14 |
| PORSCHE | CAYENNE (92A) 3.0 Diesel | MCV.VC | 01/06/10 |
| PORSCHE | CAYENNE (9PA) 3.0 TDI | M05.9D | 02.2009 - 09.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.0 TDI | BUN | 04.2006 - 05.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.0 TDI | CASB | 04.2006 - 05.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.0 V6 TDI | BKS | 11.2004 - 05.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.0 V6 TDI | CASA | 11.2007 - 05.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.0 V6 TDI | CASC | 11.2007 - 05.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 3.0 V6 TDI | CATA | 11.2004 - 05.2010 |
