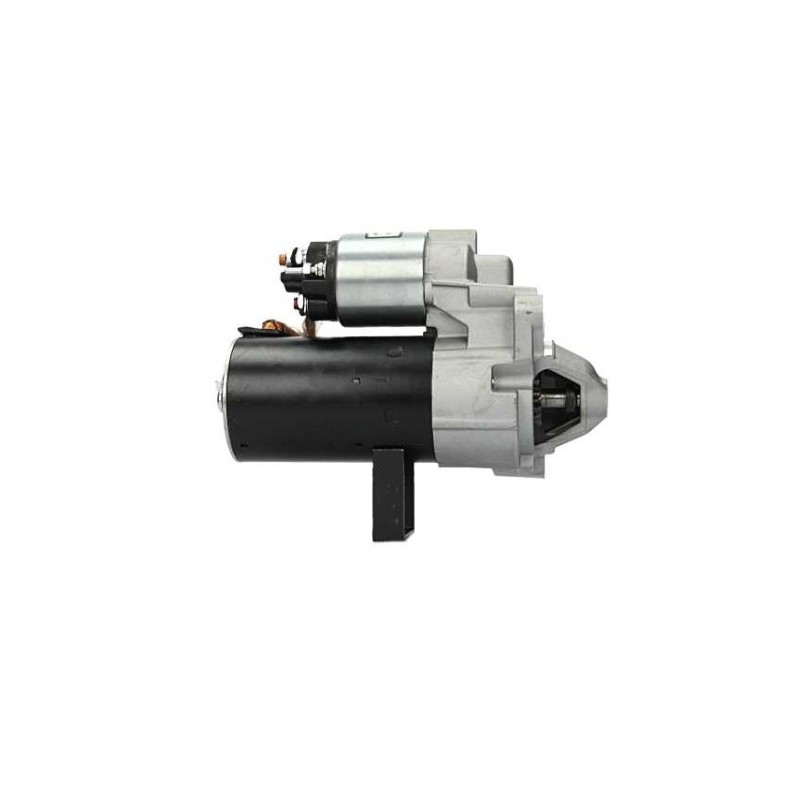

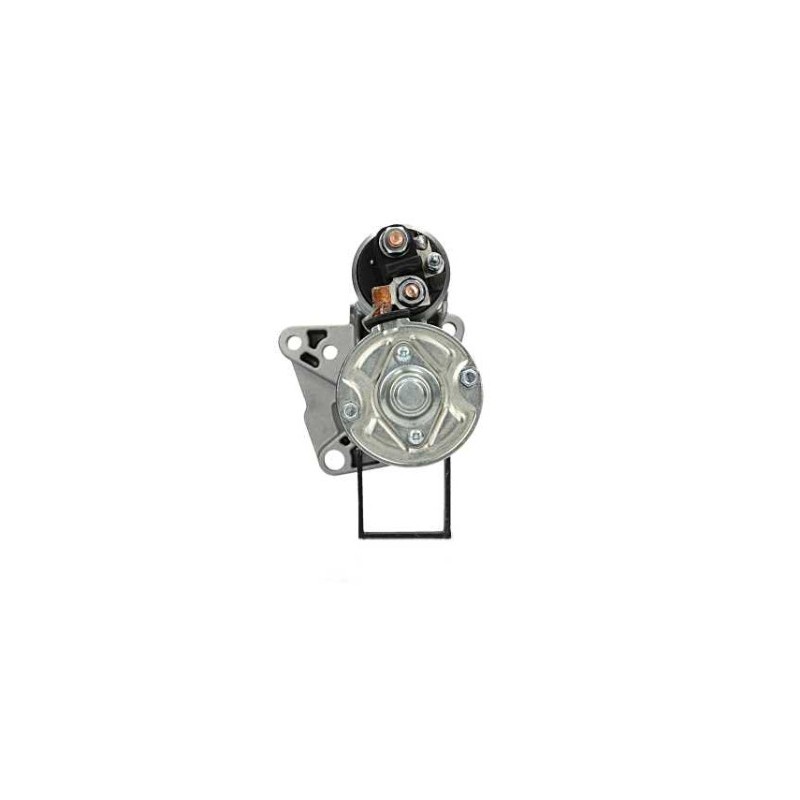

Starter BOSCH 0001108428 for RENAULT Megane / Grand scénic 1,9 DCi
Starter replacing 0001108428 / 0001108429 / 8200741476 / 8200741476B
DRS0232 / LRS02404
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info

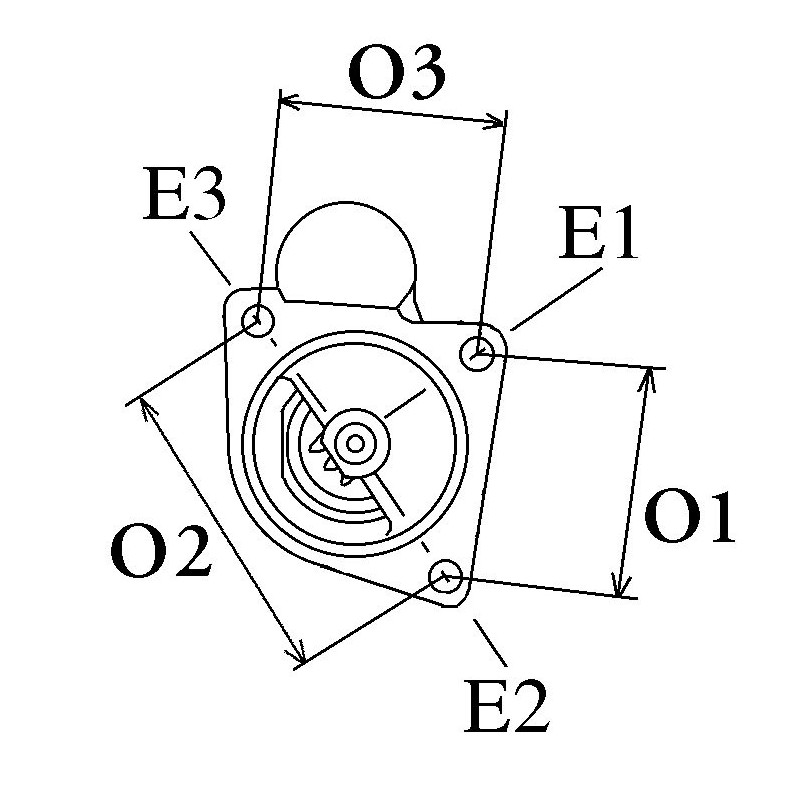

Physical information | ||
|---|---|---|
| H | No./teeth | 11 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 66.00 |
| I | B+ | M8 |
| B | Drive dist. | 0.50 |
| E | Mount. holes | M10 x1.50 |
| E | Mount. hole 2 | M10x1.50 |
| E | Mount. hole 3 | 12.00 |
| E | Mount. hole 4 | M10 x1.50 |
| F | Dist./back | 174.00 |
| G | Dist./front | 33.50 |
| M | Mount. bracket | No |
| O | Dist. mm | 21.95 |
| O | Dist. 2 | 74.20 |
| O | Dist. 3 | 104.40 |
| O | Dist. 4 | 72.50 |
| R | Total length mm | 214.00 |
Replacing | |
|---|---|
| 0001108428 | BOSCH |
| 0001108429 | BOSCH |
| 8200741476 | RENAULT |
replacing
| 0001108428 | BOSCH | |
| 0001108429 | BOSCH | |
| 0001B00889 | BOSCH | |
| 0986024130 | BOSCH | |
| 11024130 | EuroTec | |
| 12202 | EAI | |
| 254076 | Elstock | |
| 3087 | CEVAM | |
| 570555114 | PSH | |
| 8200741476 | RENAULT | |
| 8200741476B | RENAULT | |
| 910232 | EDR | |
| CS1509 | HC | |
| DRS0232 | DELCO REMY | |
| LRS02404 | LUCAS |
Used on :
RENAULT
