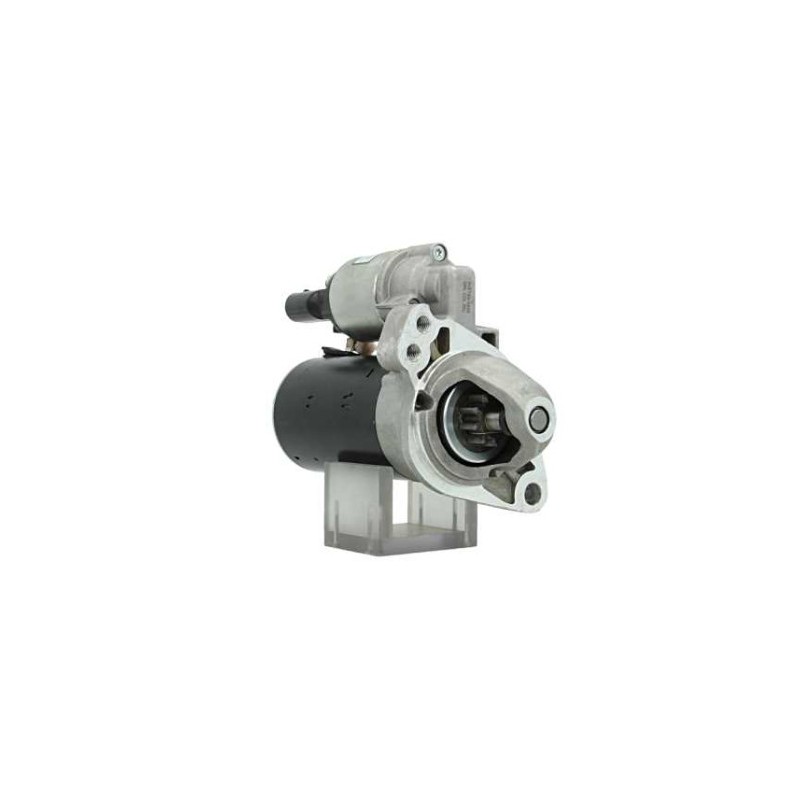

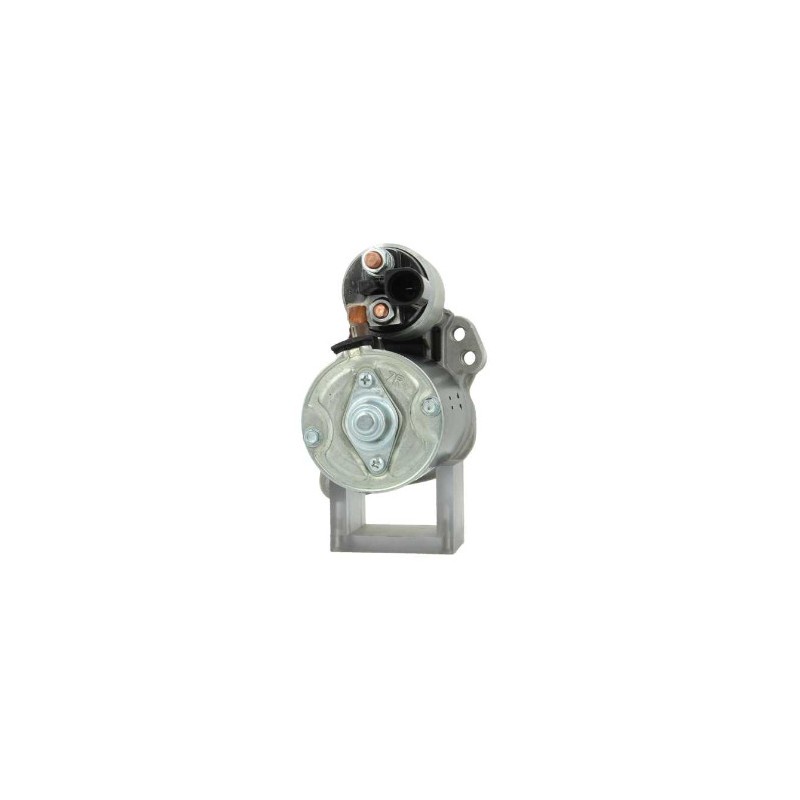

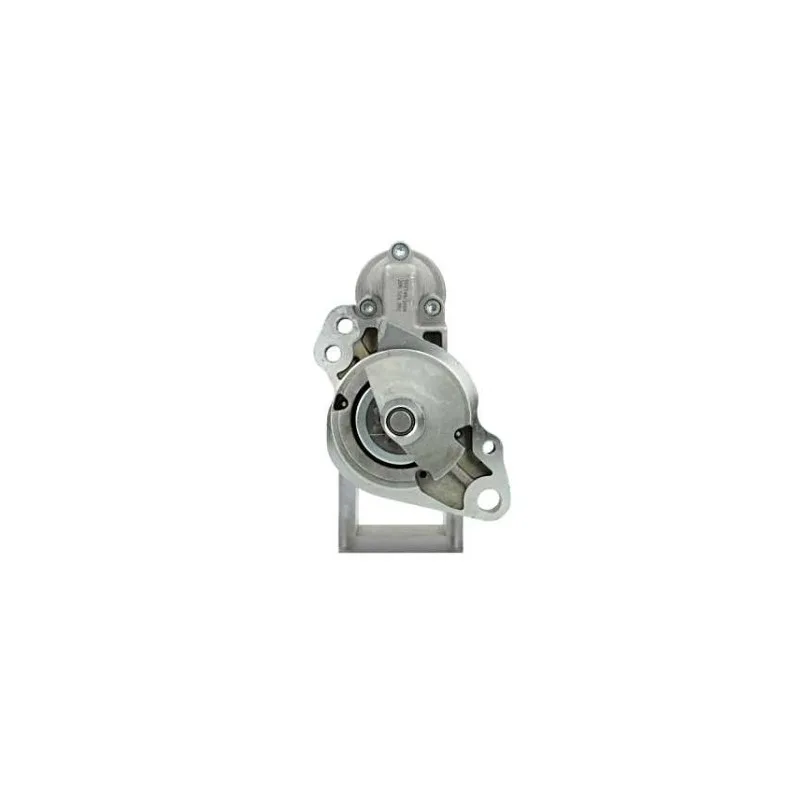

Starter replacing 0001108237 / 0001108238 / 07C911023G
w115996
Starter replacing BOSCH 0001108237 / 0001108238 / VW 07C911023G / 07C911023H
NO CORE EXCHANGE NEEDED
Features
Physical information | ||
---|---|---|
H | No./teeth | 9 |
P | Rotation | CW |
N | Gear type | GR |

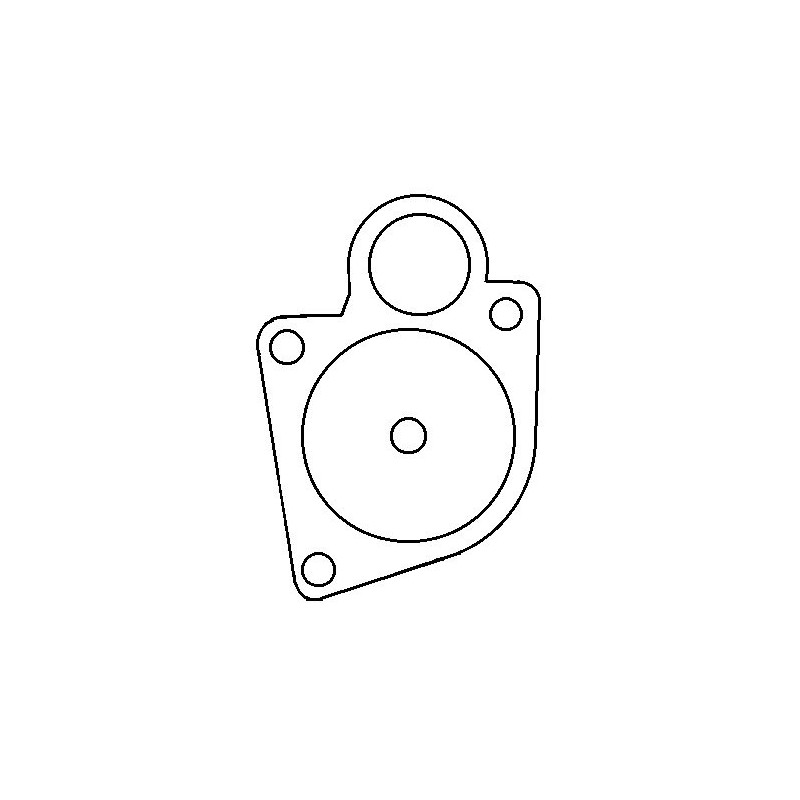

A | Mount. flange | 74.00 |
I | B+ | M8 |
B | Drive dist. | 24.00 |
E | Mount. holes | 12.50 |
E | Mount. hole 2 | M10x1.50 |
E | Mount. hole 3 | M10x1.50 |
E | Mount. hole 4 | M10x1.50 |
F | Dist./back | 155.00 |
G | Dist./front | 59.00 |
M | Mount. bracket | No |
O | Dist. mm | 114.60 |
O | Dist. 2 | 16.35 |
O | Dist. 3 | 121.20 |
R | Total length mm | 226.00 |
Replacing | |
---|---|
0001108237 | BOSCH |
0001108238 | BOSCH |
07C911023G | VOLKSWAGEN |
generic brand
fits
Audi | A6 | 03/06 | / | |
Audi | A6 | 2.0 TDI | 09/05 | / |
Audi | A8 | 06/06 | / | |
Audi | A8 | 6.0 W12 Quattro | 12/03 | / |
Audi | Q7 | 4.2 FSI | 03/06 | / |
