Starter replacing 428000-7710 / 428000-4500 / 428000-0680 / 28100-0D180 / 28100-0D090
W114056

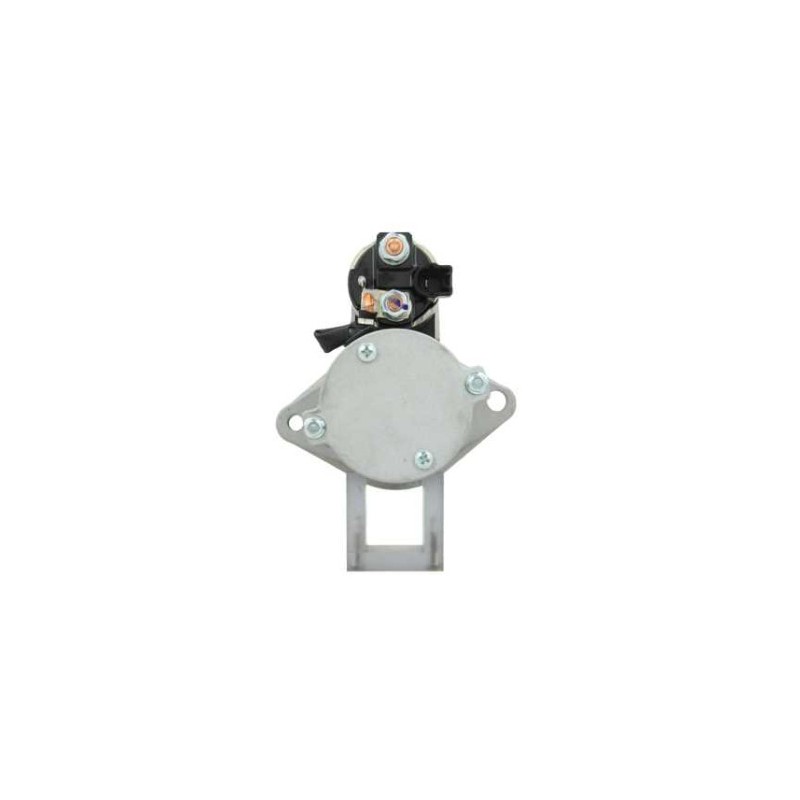

Starter replacing 428000-7710 / 428000-4500 / 428000-0680 / 28100-0D180 / 28100-0D090
Features
Electrical information | |
|---|---|
| Voltage | 12 |
| Kw | 1.3 |
Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| H | No/teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 74.00 |
| I | B+ | M8 |
| B | Drive dist. | 15.50 |
| E | Mount. holes | M10 |
| E | Mount. hole 2 | 11.00 |
| F | Dist./back | 145.00 |
| G | Dist./front | 47.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 114.00 |
| R | Total length mm | 196.00 |
Replacing | |
|---|---|
| 28100-0D090 | TOYOTA |
| 28100-0D180 | TOYOTA |
| 428000-0680 | DENSO |
| 428000-4500 | DENSO |
| 428000-7710 | DENSO |
| JS1362 | HC-PARTS |
