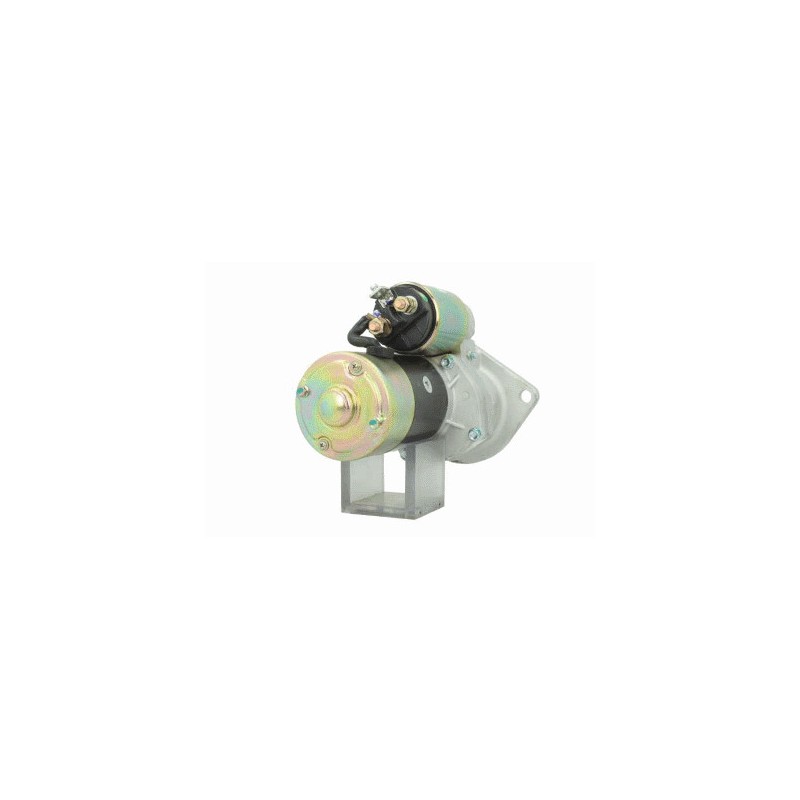

Starter replacing S25-158 / S25-158A / S25-158B / S25-160
Starter replacing :
HITACHI S25-158 / S25-158A / S25-158B / S25-160
NISSAN 23300-06J01 / 23300-06j02 / 23300-06j04 / 23300-34t00 / 23300-6J02 / 23300-6J04
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 3.5 | |

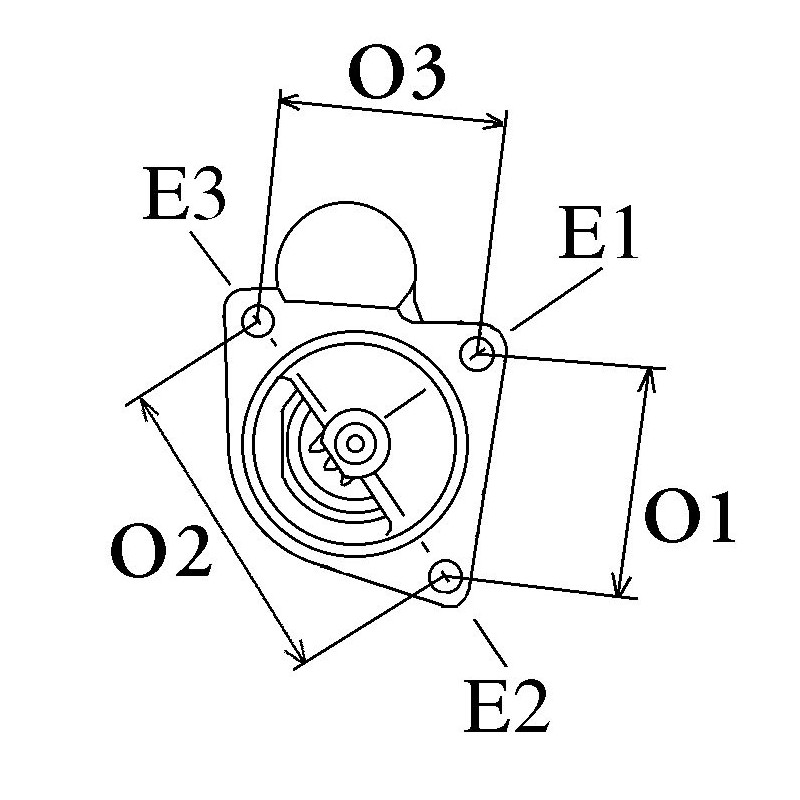

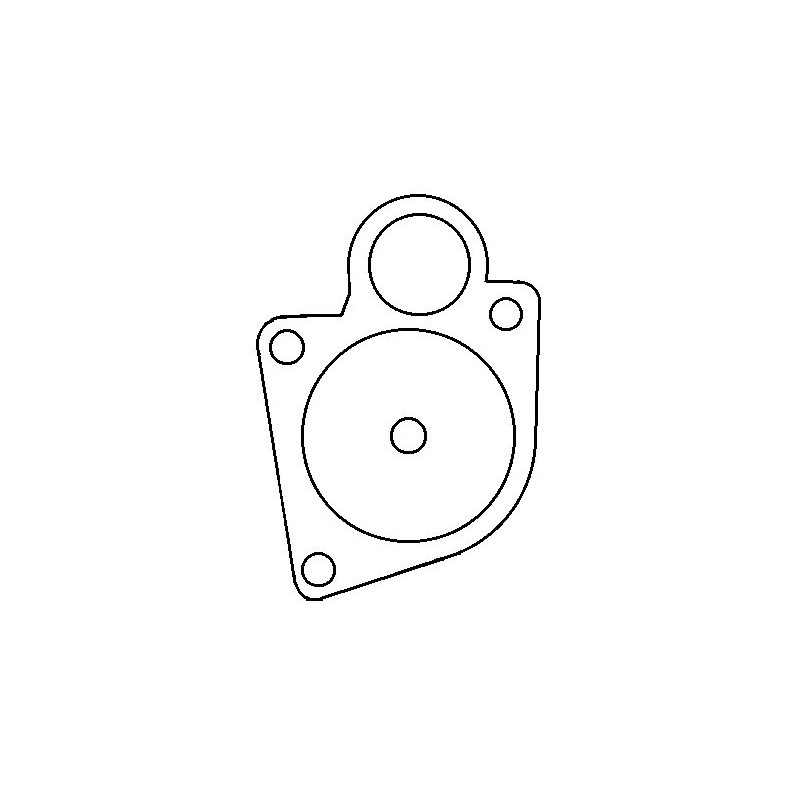

Physical Information | ||
|---|---|---|
| A | Mount flange | 104.90 |
| E | Mounting holes | 13.10 |
| E | Mounting holes 2 | 13.10 |
| E | Mounting holes 3 | 13.10 |
| B | Drive distance | 10.50 |
| F | Distance / Back | 241.00 |
| G | Distance / Front | 55.00 |
| H | Nbr of teeth | 11 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 80.00 |
| O | Distance 2 | 140.00 |
| O | Distance 3 | 114.50 |
| P | Rotation | CW |
| R | Total length mm | 301.00 |
Replacing | |
|---|---|
| 23300-06j01 | NISSAN |
| 23300-06j02 | NISSAN |
| 23300-06j04 | NISSAN |
| 23300-34t00 | NISSAN |
| 23300-6J02 | HITACHI |
| 23300-6J04 | HITACHI |
| s25-158 | HITACHI |
| s25-158a | HITACHI |
| s25-158b | HITACHI |
| s25-160 | HITACHI |
generic brand
fits:
| NISSAN | Patrol GR 4.2 D | [TD42] |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
