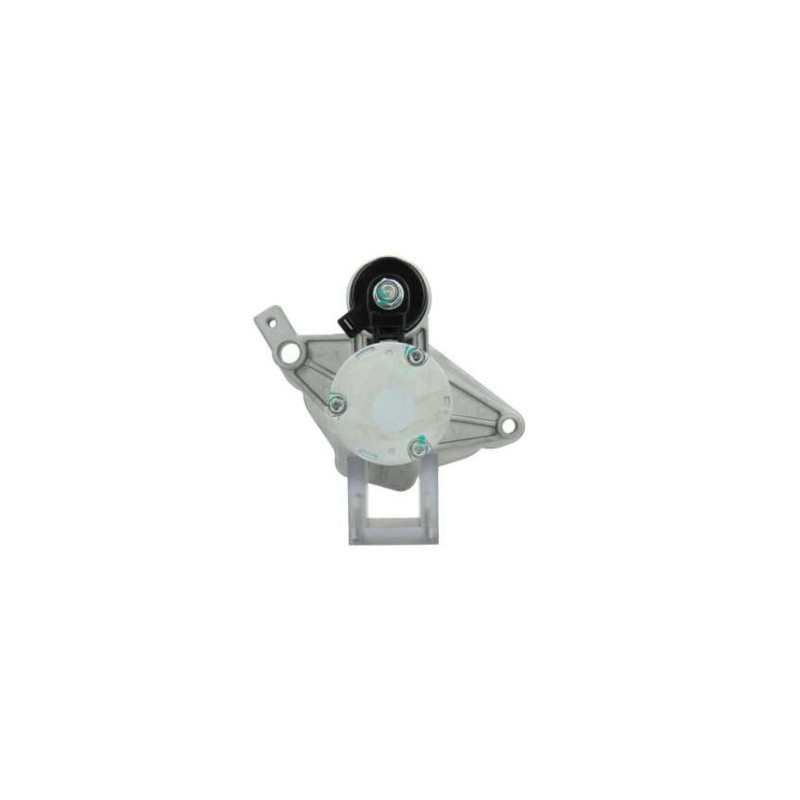

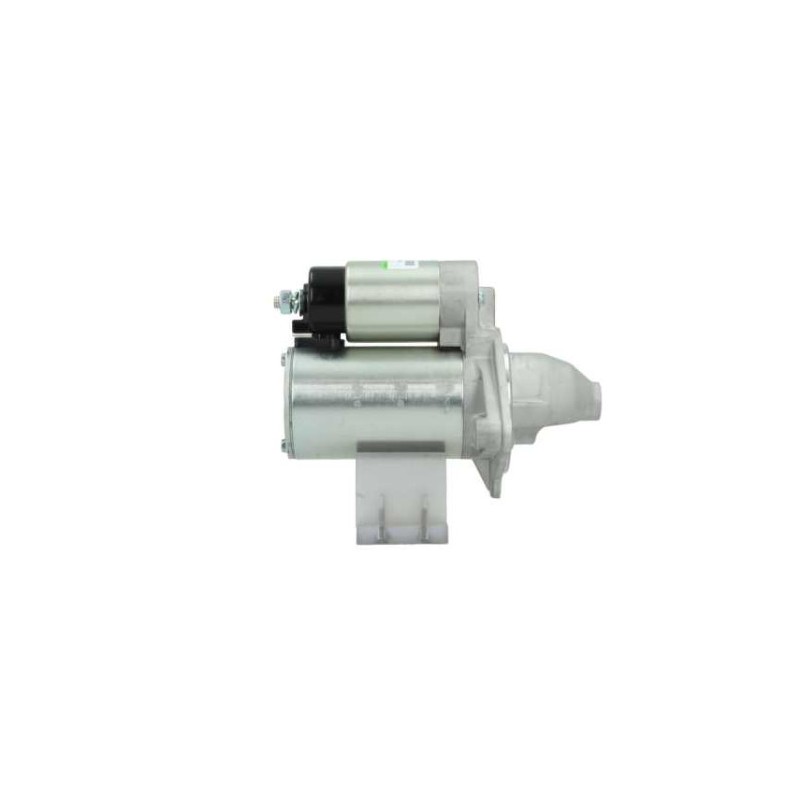

Starter replacing 428000-8432 / 428000-8434 / 428000-8435 / 428000-8441 / 428000-8443 / 428000-8444
Starter replacing 428000-7900 / 428000-8432 / 428000-8434 / 428000-8435 / 428000-8441 / 428000-8443 / 428000-8444
LRS03936 /
TOYOTA 281000Y090 / 281000Y091 / 281000Y100 / 2810047170 / 2810047180
NO CORE EXCHANGE NEEDED
More info
Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 74.00 |
| I | B+ | M8 |
| B | Drive dist. | 24.00 |
| E | Mount. holes | 11.00 |
| E | Mount. hole 2 | M10x1.25 |
| F | Dist./back | 126.00 |
| G | Dist./front | 56.50 |
| M | Mount. bracket | No |
| O | Dist. mm | 138.50 |
| R | Total length mm | 182.50 |
Replacing | |
|---|---|
| 28100-0Y090 | TOYOTA |
| 28100-0Y091 | TOYOTA |
| 28100-0Y100 | TOYOTA |
| 28100-47170 | TOYOTA |
| 428000-8432 | DENSO |
| 428000-8434 | DENSO |
| 428000-8435 | DENSO |
| 428000-8441 | DENSO |
| 428000-8443 | DENSO |
| 428000-8444 | DENSO |
generic brand
Fits TOYOTA :
| Model | Model series | Engine size | Fuel | From date | To date | Engine brand | Engine type | KW | Vehicle horse power | Chassi type | Model type | Engine volume | Cylinders | Tipo Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Auris | Auris | 1.3 | Gasoline | 2012 10 | - | 1NR-FE | 73 | 99 | Hatchback | 1329 | 4 | NZE18_, ZRE18_ | ||
| Auris | Auris Touring Sports | 1.3 | Gasoline | 2013 07 | - | 1NR-FE | 73 | 99 | Estate | 1329 | 4 | |||
| Corolla | Corolla | 1.3 | Gasoline | 2013 06 | - | 1NR-FE | 73 | 99 | 1329 | 4 | NRE18_, ZRE18_, NDE18_ | |||
| Vitz | Vitz | 1.5 | Gasoline | 2017 02 | - | 2NR-FKE | 82 | 112 | Hatchback | 1496 | 4 | _P13_ | ||
| Yaris | Yaris | 1.3 | Gasoline | 2011 09 | - | 1NR-FE | 73 | 99 | Hatchback | 1329 | 4 | _P13_ | ||
| Yaris | Yaris | 1.3 | Gasoline | 2011 09 | - | 1NR-FKE | 73 | 99 | Hatchback | 1329 | 4 | _P13_ |
