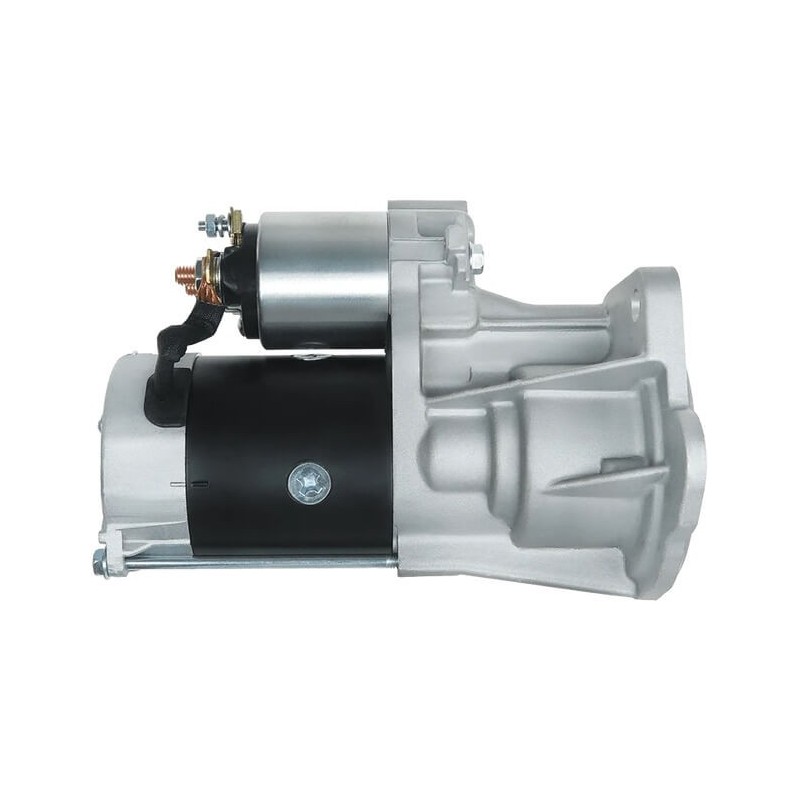

Starter replacing HITACHI S13-559B / S13-559A / S13-556

Starter motor replaces S13-559B / S13-559A / S13-556 for TERRANO II / MASTER II / MASCOTT

Name: Starter motor replaces S13-559B / S13-559A / S13-556 for TERRANO II / MASTER II / MASCOTT
SKU: w114032
Price: 119.9 EUR
Availability: InStock

Reference : w114032

It is important to verify compatibility with your part number before purchasing,

as different configurations may exist for the same vehicle depending on the year and engine type.

for NISSAN, OPEL, RENAULT, RENAULT
V.I.,VAUXHALL

Replaces

= HITACHI S13-527B / S13-527A / S13-527

= NISSAN 23300-2W200 / 23300-db000 / 23300-DB00A / 23300-MA70A / 23300-VW201 / 23300-2W210

= OPEL 4415001 / 4419037 / 93179580 / 93196800

= RENAULT 5010437728 / 7485003131 / 7485115899

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

€119.90 Tax included

Price may vary according to your VAT rate

Fast delivery

Add product to favorites

2-year warranty

No instructions, no return of the old

Secure payments

Reference

114032	CARGO
20445651BN	REAL
20445651OE	REAL
22.1491	LAUBER
22.1491M	LAUBER
23300-2W200	NISSAN
23300-2W210	NISSAN
23300-DB000	NISSAN
25-3355	ELSTOCK
254057	KUHNER
254057H	KUHNER
33182N	WAI
5010437728	RENAULT
7485003131	RENAULT
7485115899	RENAULT
88214239	POWERMAX
9602	CEVAM
AEY2182	AUTOELECTRO
CGB-23556	AINDE
CS1491	HC PARTS
CST20156AS	CASCO
CST20156GS	CASCO
DRS0615	DELCO
HXS089	ASHDOWN INGRAM
LRS02182	LUCAS
LRS2182	LUCAS
MAV221560	SIOM
S13-527	HITACHI
S13-527B	HITACHI
S2012	AS-PL
SS731	SOVEREIGN
STR72048	WOODAUTO
STRS040	3EFFE
SX 6011	STARLINE
UD14939S	AS-PL
220713	ERA
ANM12309X	ANDEL
PRSS040	3EFFE
6020156.0	SANDO
6020156.1	SANDO
S13-527A	HITACHI
S13-527D	HITACHI
S13-556	HITACHI
S13-556A	HITACHI
S14-405B	HITACHI
23300-2W20B	NISSAN
23300-744501	NISSAN
23300-77450	NISSAN
23300-DB00A	NISSAN
93179580	OPEL
93196800	OPEL
DRS0089	DELCO
570.543.092.080	WAI
570.543.092.270	WAI
12014	EAI
943214911010	MAGNETI MARELLI
4415001	OPEL
4419037	OPEL
23300-VW201	NISSAN
23300-VW211	NISSAN
STR3038	ELECTROLOG
STA0429R	BOVEZ
136921	HITACHI
23300-MA70A	NISSAN
233002W20A	NISSAN
233002W21B	NISSAN
23300VW20B	NISSAN
2506921	HITACHI
2506924	HITACHI
7711135919	RENAULT
S13-553	HITACHI
S13-553A	HITACHI
S13-559A	HITACHI
S13-559B	HITACHI
S13507	HITACHI
S13526	HITACHI
S13526B	HITACHI
S13527C	HITACHI
S13553	HITACHI
S13553A	HITACHI
S13553B	HITACHI
S13553C	HITACHI
3182N	WAI
STX200060	STARDAX
STX200060R	STARDAX
F032114032	CARGO
S145.646	WAI
S133.928	WAI
J5211112	HERTH+BUSS
AM-2527	AUTO MAGNETO
AM-2527E	AUTO MAGNETO

Features

Why buy from WAGENDASS?

WAGENDASS is a brand registered and recognized within the European Union.

We have collaborated with our suppliers for 40 years to offer you brand-new equipment
backed by a two-year warranty at the best price on the market,
We are dedicated to providing you with reliable, fast service for repairs and troubleshooting.

Information:

Voltage 12

KW 2.8

A = Mount flange 95.00

B = Drive distance 11.00

F = Distance / Back 202.00

G = Distance / Front 11.00

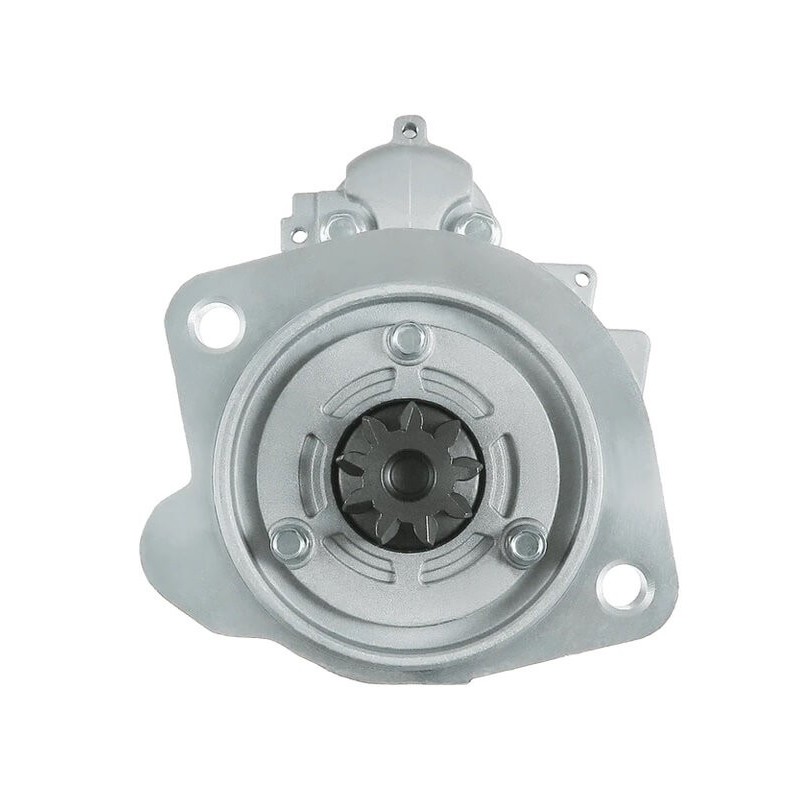

H = Nbr of teeth 9

B+ M8

Gear type Gr

O = Distance 120.00

Rotation Cr

Nbr of mounting holes 2 (0)

R = Total length mm 214.00

generic brand

Replacing
23300-2W200	NISSAN
23300-db000	NISSAN
23300-DB00A	NISSAN
23300-MA70A	NISSAN
23300-VW201	NISSAN
4415001	OPEL
4419037	OPEL
5010437728	RENAULT
7485003131	RENAULT
7485115899	RENAULT
93179580	OPEL
93196800	OPEL
cs1491	HC-PARTS
s13-527	HITACHI
s13-527a	HITACHI
s13-527b	HITACHI
s13-553	HITACHI
s13-556	HITACHI
S13-556A	HITACHI
S13-559A	HITACHI
S13-559B	HITACHI

fitsNISSAN :

- Interstar 3,0 diesel engine DCi ZD30

- Terrano 3,0 diesel engine DCi ZD30

fitsOPEL /VAUXHALL :

- Movano 3,0 diesel engine DTi ZD3202 / ZD3200 /

fitsRENAULT :

- Mascott 3,0 TD engine DXi3 / ZD3A600 / ZD3A604 / série 120.35 / 160.35 / 120.55 / 160.55

- Master 3,0 D engine DCi ZD3A604 / ZD3600 / ZD3200 / ZD3202

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

Mounting on

Brand	Model	Typ	Year
NISSAN	TERRANO II Van (R20) 3.0 Di 4WD	ZD30	04.2003 - 09.2007
NISSAN	TERRANO II (R20) 3.0 Di 4WD	ZD30	05.2002 - 09.2007
NISSAN	TERRANO II Van (R20) 3.0 Di 4WD	ZD30Ti	04.2003 - 09.2007
NISSAN	INTERSTAR Van (X70) dCi 140	ZD30	01/11/03
NISSAN	INTERSTAR Bus (X70) dCi 140	ZD30	01/11/03
NISSAN	INTERSTAR Platform/Chassis (X70) dCi 140	ZD30	01/11/03
OPEL	MOVANO A Platform/Chassis (X70) 3.0 DTI (ED, HD, UD0, UD4)	ZD3200	01/10/03
OPEL	MOVANO A Platform/Chassis (X70) 3.0 DTI (ED, HD, UD0, UD4)	ZD3202	01/10/03
OPEL	MOVANO A Van (X70) 3.0 DTI (FD)	ZD3200	01/10/03
OPEL	MOVANO A Van (X70) 3.0 DTI (FD)	ZD3202	01/10/03
OPEL	MOVANO A Bus (X70) 3.0 DTi (JD)	ZD3200	01/10/03
OPEL	MOVANO A Bus (X70) 3.0 DTi (JD)	ZD3202	01/10/03
RENAULT	MASTER II Platform/Chassis (ED/HD/UD) 3.0 dCi 140 (ED0S, UD0S, HD0S)	ZD3200	10.2003 - 01.2010
RENAULT	MASTER II Platform/Chassis (ED/HD/UD) 3.0 dCi 140 (ED0S, UD0S, HD0S)	ZD3202	10.2003 - 01.2010
RENAULT	MASTER II Van (FD) 3.0 dCi 140 (FD0T, FD0S, FD2T, FD3S, FD8S)	ZD3202	10.2003 - 10.2006
RENAULT	MASTER II Bus (JD) 3.0 dCi 140 (JD0T, JD1T)	ZD3200	10.2003 - 09.2006
RENAULT	MASTER II Bus (JD) 3.0 dCi 140 (JD0T, JD1T)	ZD3202	10.2003 - 09.2006
RENAULT	MASTER PRO Van (FH__) dCi 120 (FH0H, FH5H)	ZD3600	06.2005 - 04.2010
RENAULT	MASTER PRO Van (FH__) dCi 150 (FH04)	ZD3608	06.2005 - 04.2010
RENAULT	MASTER PRO Van (FH__) dCi 160 (FH0J, FH5J)	ZD3604	05.2004 - 04.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 120.35 (A00100003, A01100003)	DXi3	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 120.35 (A00100003, A01100003)	ZD3A600	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Van 120.35 (A02100003)	DXi3	05.2004 - 10.2010
RENAULT TRUCKS	MASCOTT Van 120.35 (A02100003)	ZD3A600	05.2004 - 10.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 120.55 (A00300005, A01300005)	DXi3	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 120.55 (A00300005, A01300005)	ZD3A600	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Van 120.55 (A02300005)	DXi3	05.2004 - 10.2010
RENAULT TRUCKS	MASCOTT Van 120.55 (A02300005)	ZD3A600	05.2004 - 10.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 120.65 (A00500007)	DXi3	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 120.65 (A00500007)	ZD3A600	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 150.35	DXi3	05.2004 - 12.2013
RENAULT TRUCKS	MASCOTT Platform/Chassis 160.35 (A00100013, A01100013)	DXi3	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 160.35 (A00100013, A01100013)	ZD3A604	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Van 160.35 (A02100013)	DXi3	05.2004 - 10.2010
RENAULT TRUCKS	MASCOTT Van 160.35 (A02100013)	ZD3A604	05.2004 - 10.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 160.55 (A00300015, A01300015)	DXi3	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 160.55 (A00300015, A01300015)	ZD3A604	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Van 160.55 (A02300015)	DXi3	05.2004 - 10.2010
RENAULT TRUCKS	MASCOTT Van 160.55 (A02300015)	ZD3A604	05.2004 - 10.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 160.65 (A00500017, A01500017, B03200017)	DXi3	05.2004 - 12.2010
RENAULT TRUCKS	MASCOTT Platform/Chassis 160.65 (A00500017, A01500017, B03200017)	ZD3A604	05.2004 - 12.2010
