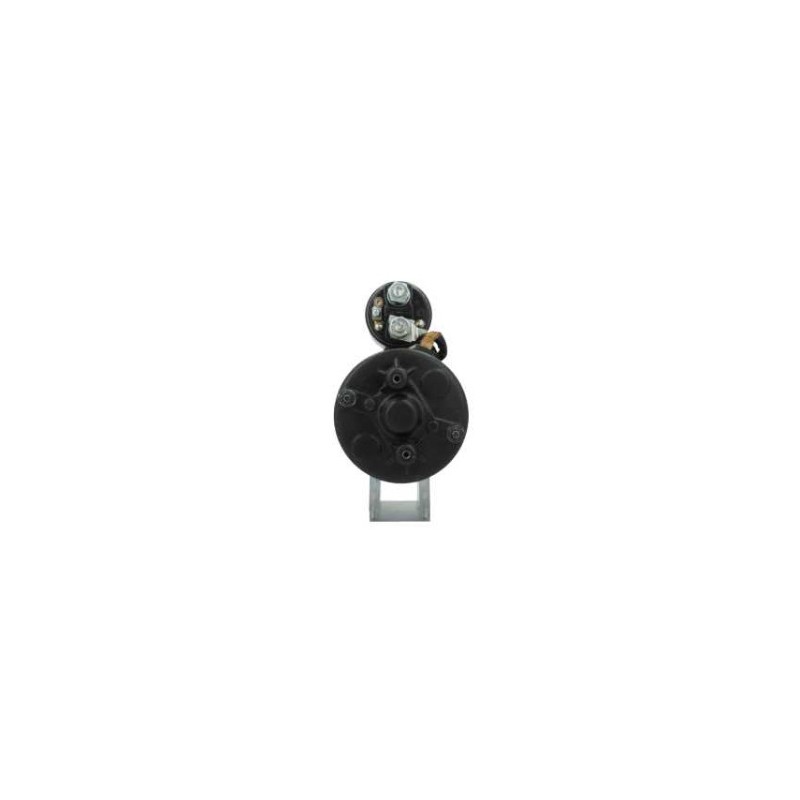

Starter replacing AZJ3211 / AZJ3433 / 58402670 / 35532056F / 35532040F / 11131479 / 11130645
Starter replacing :
ISKRA / MAHLE AZJ3211 / AZJ3433 / / 11.131.479 / 11.130.645 / is0645
LOMBARDINI 58402670
V.M 3.553.2056F / 3.553.2040F / 11131479 / 11130645
NO CORE EXCHANGE NEEDED
More info
Electrical information | |
|---|---|
| Voltage | 24 |
| Kw | 2.8 |
Physical Information | ||
|---|---|---|
| H | Nbr of teeth | 9 |
| P | Rotation | Cr |
| N | Gear type | Dd |
| A | Mount flange | 82.50 |
| I | B+ | M10 |
| B | Drive distance | 21.00 |
| E | Mounting holes | 13.00 |
| E | Mounting holes 2 | 13.00 |
| F | Distance / Back | 229.00 |
| G | Distance / Front | 65.00 |
| K | Thread length mm | 9.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 105.00 |
| R | Total length mm | 294.00 |
Replacing | ||
|---|---|---|
| 11.130.645 | ISKRA | |
| 11.131.479 | ISKRA | |
| 3.553.2040F | Vm | |
| 3.553.2056F | Vm | |
| 58402670 | LOMBARDINI | |
| AZJ3211 | ISKRA | |
| AZJ3433 | ISKRA | |
DEM221
generic brand
Mounted on :
VM Stabililmenti Mec :
| Engine | D703 | - | - | ||||||||||||||
| Engine | D702 |
