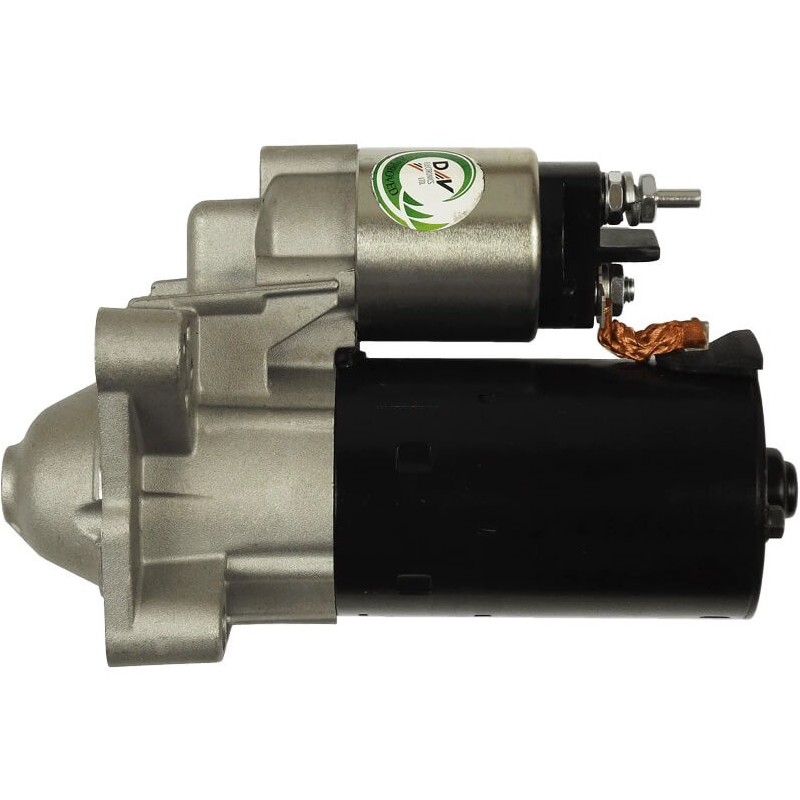

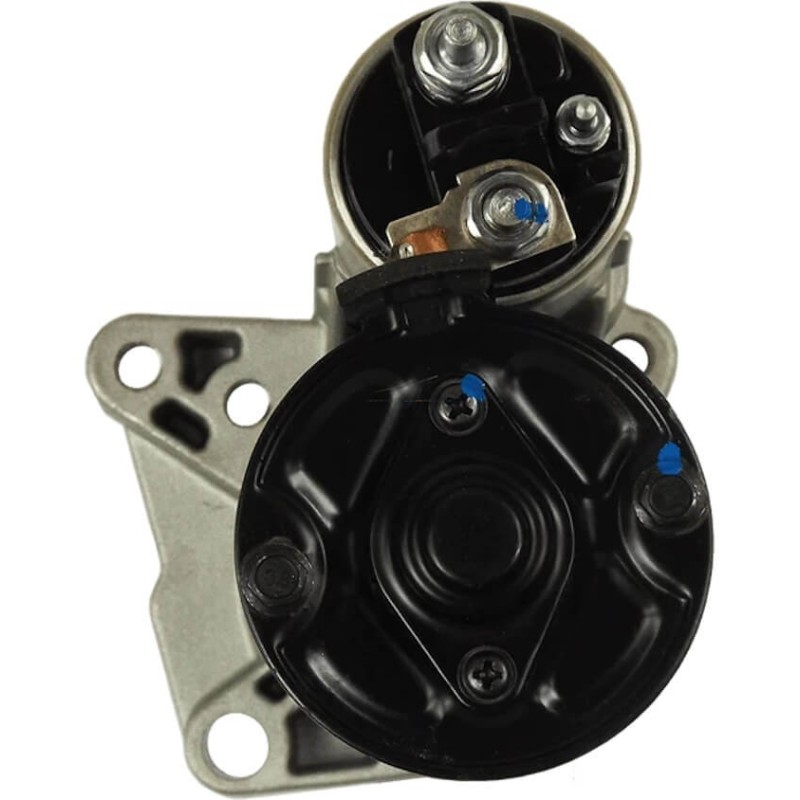

Starter replacing 0001108428 / 0001108429 / 0986024130 / 8200741476
| 12130283 | AES | |
| 12130402 | AES | |
| 1986S00707 | Bosch | |
| 254076 | Elstock | |
| 458815 | Valeo | |
| 570555114 | PSH | |
| 7711497369 | Renault | |
| 8200741476 | Renault | |
| 8200741476B | Renault | |
| BOS0001108428 | Wood Auto | |
| CS1509 | HC-Parts | |
| DRS0232 | Remy | |
| LRS02404 | Lucas | |
| LRS2404 | Lucas |
More info
Physical information | ||
|---|---|---|
| H | No./teeth | 11 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 66.00 |
| I | B+ | M8 |
| B | Drive dist. | 0.50 |
| E | Mount. holes | M10 x1.50 |
| E | Mount. hole 2 | M10x1.50 |
| E | Mount. hole 3 | 12.00 |
| E | Mount. hole 4 | M10 x1.50 |
| F | Dist./back | 174.00 |
| G | Dist./front | 33.50 |
| M | Mount. bracket | No |
| O | Dist. mm | 21.95 |
| O | Dist. 2 | 74.20 |
| O | Dist. 3 | 104.40 |
| O | Dist. 4 | 72.50 |
| R | Total length mm | 214.00 |
generic brand
replacing
| 0001108428 | BOSCH |
| 0001108429 | BOSCH |
| 0986024130 | BOSCH |
| 114869 | CARGO |
| 12202 | EAI |
| 20401244BN | REAL |
| 20401244OE | REAL |
| 25-4076 | ELSTOCK |
| 255046 | KUHNER |
| 255046B | KUHNER |
| 30364N | WAI / TRANSPO |
| 3087 | CEVAM |
| 570.555.114 | PSH |
| 6010442 | SANDO |
| 8200741476 | RENAULT |
| 8200741476B | RENAULT |
| 8214332 | POWERMAX |
| 88214332 | POWERMAX |
| AEY2404 | AUTOELECTRO |
| BOS0001108428 | WOODAUTO |
| CS1509 | HC PARTS |
| CST10442 | CASCO |
| CST10442AS | CASCO |
| CST10442ES | CASCO |
| CST10442GS | CASCO |
| CST10442OS | CASCO |
| CST10442RS | CASCO |
| DRS0232 | DELCO |
| EAA-141321 | EAA |
| LRS02404 | LUCAS |
| LRS2404 | LUCAS |
| RNL108429 | RNL |
| RNL2413 | RNL |
| S0497 | AS-PL |
| STR50655 | WOODAUTO |
| STRS899 | 3EFFE |
| UD01603S | AS-PL |
| UD11981S | AS-PL |
| 220882 | ERA |
| S12BH0688A2 | SIDAT |
| S12BH0688 | SIDAT |
| ANM12452X | ANDEL |
| 330933 | LOGISTIK |
| 5010523 | MEAT & DORIA |
| STR1503 | ELECTROLOG |
| 7711497369 | RENAULT |
Fits
| Brand | Model | Typ | Year |
| RENAULT | Scenic 1.9 DCi | [F9Q870] | 01/02/09 |
| RENAULT | Scenic 1.9 DCi | [F9Q872] | 01/02/09 |
| RENAULT | Grand Scenic 1.9 DCi | [F9Q870] | 01/02/09 |
| RENAULT | Grand Scenic 1.9 DCi | [F9Q872] | 01/02/09 |
| RENAULT | Megane 1.9 DCi | [F9Q870] | 01/11/08 |
| RENAULT | Megane 1.9 DCi | [F9Q870] | 01/05/09 |
| RENAULT | Megane 1.9 DCi | [F9Q870] | 01/06/09 |
| RENAULT | Megane 1.9 DCi | [F9Q872] | 01/11/08 |
| RENAULT | Megane 1.9 DCi | [F9Q872] | 01/05/09 |
| RENAULT | Megane 1.9 DCi | [F9Q872] | 01/06/09 |
| RENAULT | Megane CC 1.9 DCi | [F9Q870] | 01/06/10 |
