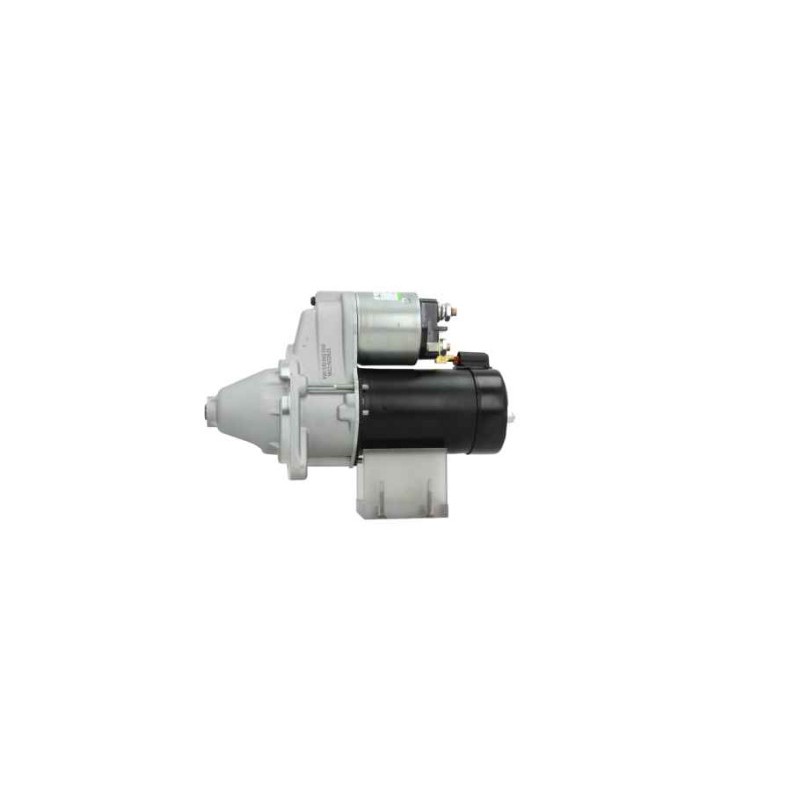

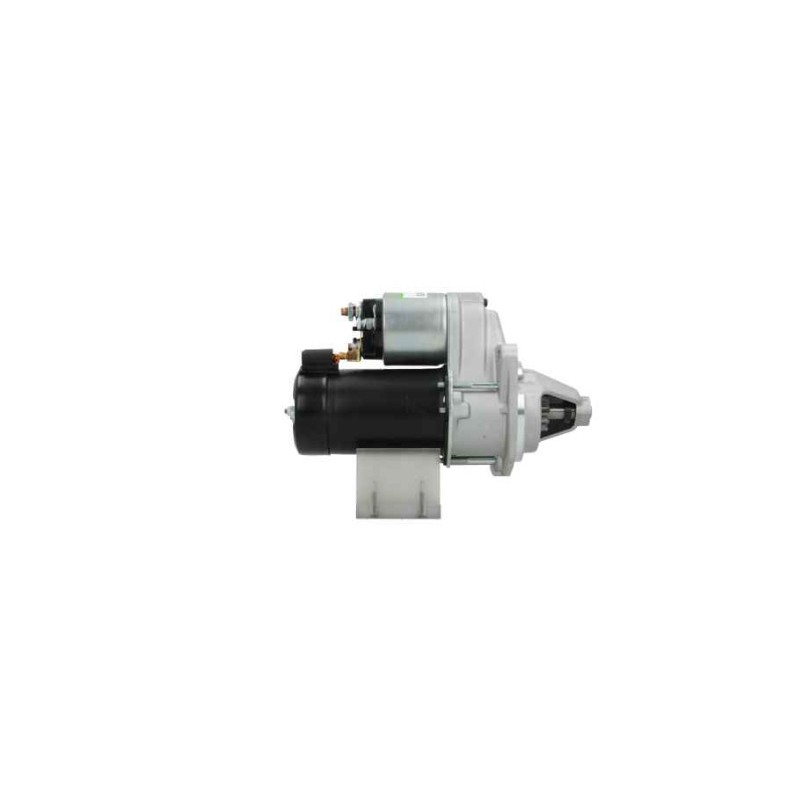

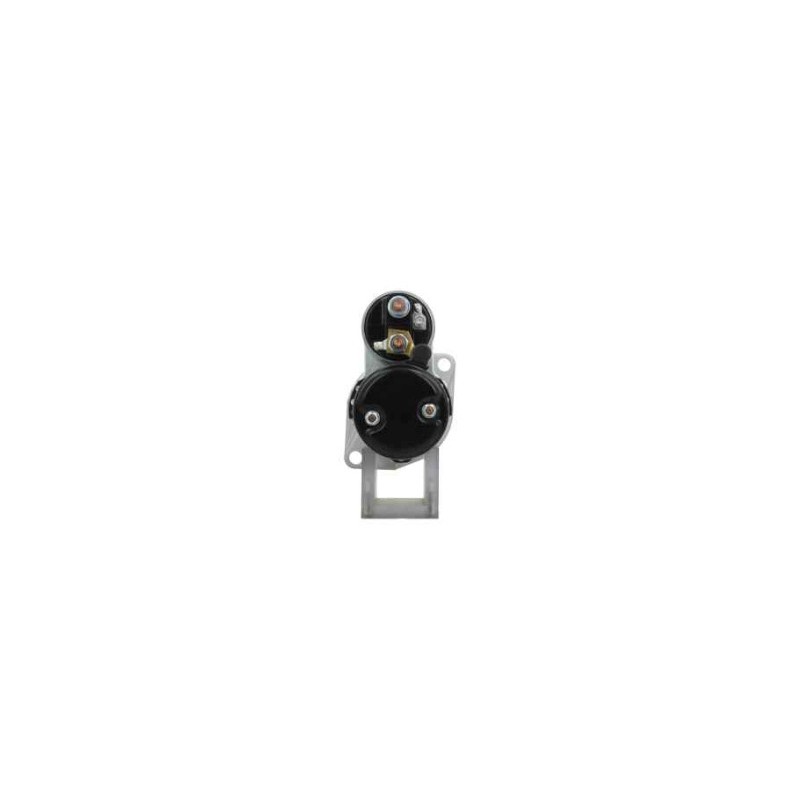

Starter replacing VALEO D6RA17
Starter replacing VALEO D6RA17 / D6RA27 / D6RA60 / D6RA60+ / 594090 / 594081
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.2 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 76.00 |
| E | Mounting holes | 10.50 |
| E | Mounting holes 2 | 10.50 |
| B | Drive distance | 28.00 |
| F | Distance / Back | 157.00 |
| G | Distance / Front | 60.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 105.00 |
| P | Rotation | COUNTER CLOCKWISE |
| R | Total length mm | 217.00 |
Replacing:
| 184532 |
| 184880 |
| 186626 |
| 252437 |
| 2549090 |
| 438003 |
| 455636 |
| 549090 |
| 56339 |
| 594081 |
| 594090 |
| 690510092 |
| 690510092000 |
| 690510092500 |
| 91203525 |
| D6RA17 |
| D6RA27 |
| D6RA60 |
| D6RA60+ |
| DRS0799 |
| LRS01490 |
Mounted on :
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| RUGGERINI | MD150 | 01.1987-12.1997 | ||
| RUGGERINI | MD150 | 01.1988-12.1998 | ||
| RUGGERINI | MD151 | 01.1987-12.1997 | ||
| RUGGERINI | MD151 | 01.1988-12.1998 | ||
| RUGGERINI | MD156 | 01.1987-12.1997 | ||
| RUGGERINI | MD156 | 01.1988-12.1998 | ||
| RUGGERINI | MD159 | 01.1987-12.1997 | ||
| RUGGERINI | MD159 | 01.1988-12.1998 | ||
| RUGGERINI | MD170S | 01.1991-12.1997 | ||
| RUGGERINI | MD190 | 01.1989-12.1997 | ||
| RUGGERINI | MD191 | 01.1989-12.1997 | ||
| RUGGERINI | MD196 | 01.1989-12.1997 | ||
| RUGGERINI | MD199 | 01.1989-12.1997 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
