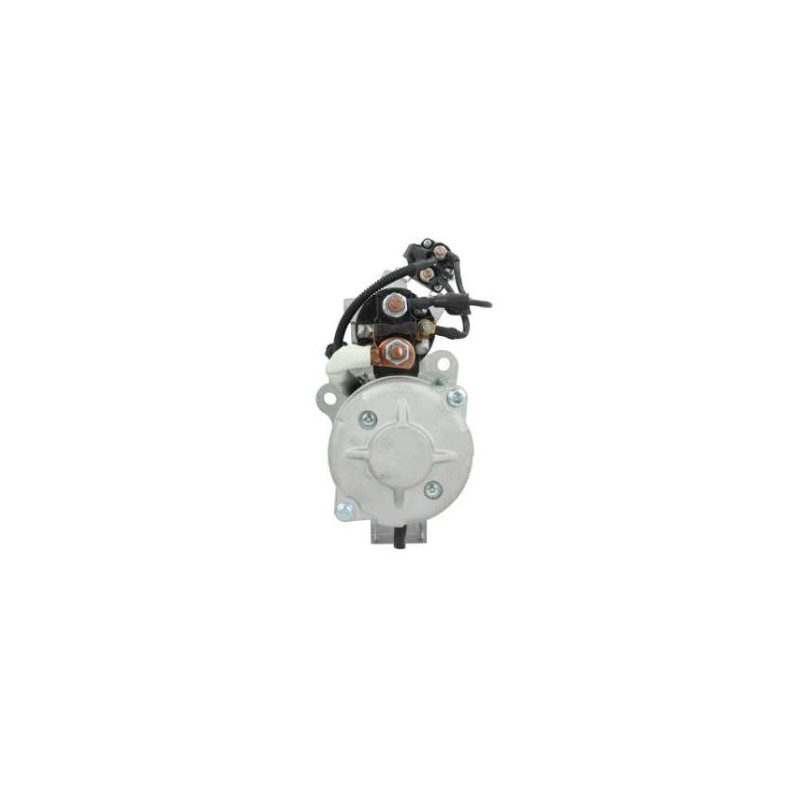

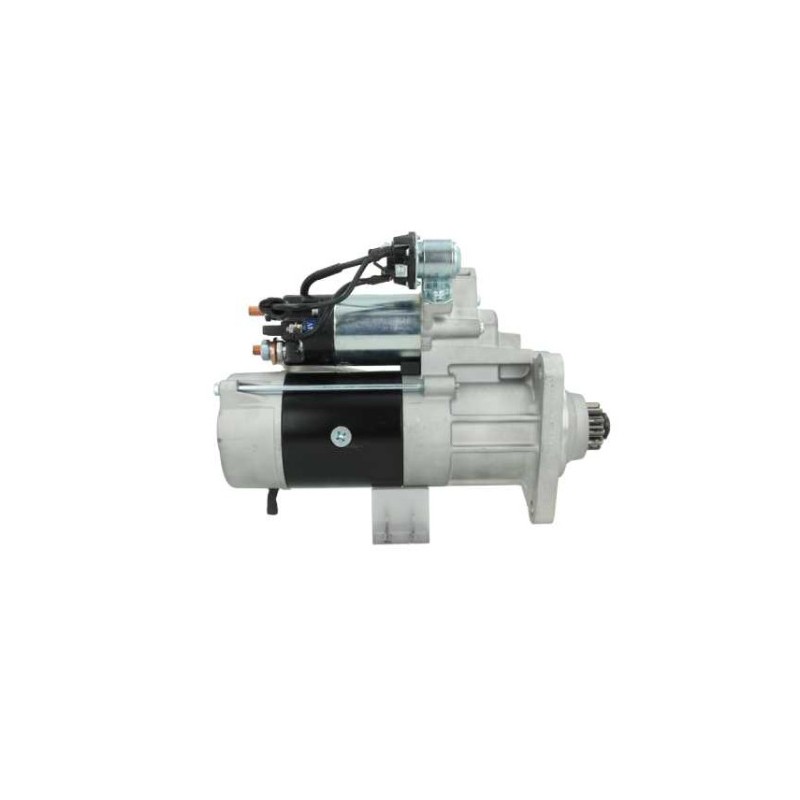

Starter MITSUBISHI M009T83071 / m9t82771 / M9T83071 for MAN
Starter MITSUBISHI :
BOSCH 0986025250
MAN 51.26101-7206 / 51.26201-7206 / 51.26201-7231
MITSUBISHI M009T83071 / m9t82771 / M9T83071
Generic version available here w115440
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 7.0 | |

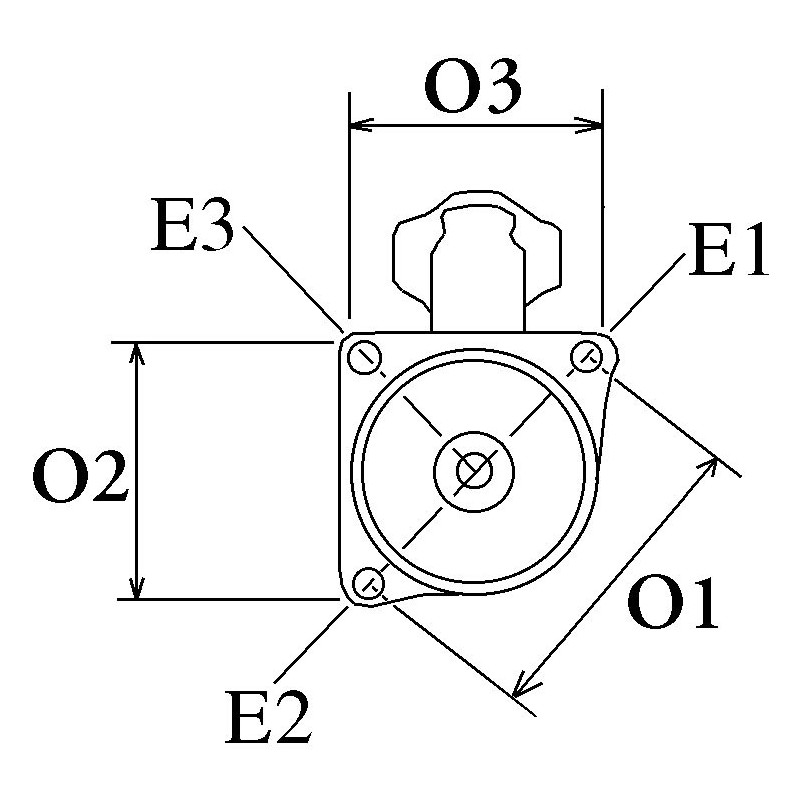

Physical Information | ||
|---|---|---|
| A | Mount flange | 92.00 |
| E | Mounting holes | 14.00 |
| E | Mounting holes 2 | 14.00 |
| E | Mounting holes 3 | 14.00 |
| B | Drive distance | 47.50 |
| F | Distance / Back | 289.50 |
| G | Distance / Front | 57.00 |
| H | Nbr of teeth | 12 |
| I | B+ | M10 |
| N | Gear type | Gr |
| O | Distance mm | 126.50 |
| O | Distance 2 | 126.50 |
| O | Distance 3 | 126.50 |
| P | Rotation | CW |
| R | Total length mm | 350.00 |
Replacing | |
|---|---|
| 0986025250 | BOSCH |
| 51.26101-7206 | MAN |
| 51.26201-7206 | MAN |
| 51.26201-7231 | MAN |
| cs1551 | HC-PARTS |
| M009T83071 | MITSUBISHI |
| m9t82771 | MITSUBISHI |
| M9T83071 | MITSUBISHI |
| Numéro from reference | Maker |
|---|---|
| S5174 | AS-PL |
| UD90045S | AS-PL |
| CST35637 | CASCO |
| DRS0543 | DELCO |
| DRS0543N | DELCO |
| CS1551 | HC PARTS |
| 51.26201-7206 | MAN |
| 51.26201-9231 | MAN |
| 51.26201.7231 | MAN |
| 51262017231 | MAN |
| M009T82771 | MITSUBISHI |
| M009T83071 | MITSUBISHI |
| M009T83071AM | MITSUBISHI |
| M9T82771 | MITSUBISHI |
| M9T83071 | MITSUBISHI |
| M9T83071AM | MITSUBISHI |
| 103-5119 | PIC |
| 551.535.123 | PSH |
| MITM9T83071 | WOODAUTO |
| CST35637GS | CASCO |
| 20437736OE | REAL |
Mounted on :
| Brand | Model | Tipo | A partir from |
| IVECO | 320 E28 5.8 | [F4AE0681A] | 01/09/00 |
| MAN | 18.480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
| MAN | 18.480 12.4 | (TGA)[D2676LF05] | 01/01/06 |
| MAN | 18.480 12.4 | (TGA)[D2676LF12] | 01/01/06 |
| MAN | 18.540 12.4 | (TGA)[D2676LF13] | 01/01/06 |
| MAN | 18480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
| MAN | 19.440 12.4 | (TGS)[D2676LF04] | 01/01/06 |
| MAN | 19.440 12.4 | [D2676LF04] | 01/01/06 |
| MAN | 19.480 12.4 | (TGS)[D2676LF02] | 01/01/06 |
| MAN | 19.480 12.4 | (TGS)[D2676LF03] | 01/01/06 |
| MAN | 19.480 12.4 | (TGS)[D2676LF20] | 01/01/06 |
| MAN | 19.480 12.4 | (TGS)[D2676LF31] | 01/01/06 |
| MAN | 19.480 12.4 | [D2676LF02] | 01/01/06 |
| MAN | 19.480 12.4 | [D2676LF03] | 01/01/06 |
| MAN | 19.480 12.4 | [D2676LF20] | 01/01/06 |
| MAN | 19.480 12.4 | [D2676LF31] | 01/01/06 |
| MAN | 24.480 12.4 | (TGA)[D2676LF01](TGA)[D2676LF12] | 01/01/06 |
| MAN | 24.540 12.4 | (TGA)[D2676LF11] | 01/01/06 |
| MAN | 26.480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
| MAN | 26.480 12.4 | (TGA)[D2676LF01](TGA)[D2676LF12] | 01/01/06 |
| MAN | 26.480 12.4 | (TGA)[D2676LF05] | 01/01/06 |
| MAN | 26.480 12.4 | (TGA)[D2676LF12] | 01/01/06 |
| MAN | 26.540 12.4 | (TGA)[D2676LF13] | 01/01/06 |
| MAN | 28.480 12.4 | (TGA)[D2676LF02] | 01/01/06 |
| MAN | 28.480 12.4 | (TGA)[D2676LF05] | 01/01/06 |
| MAN | 28.480 12.4 | (TGA)[D2676LF14] | 01/01/06 |
| MAN | 28.540 12.4 | (TGA)[D2676LF13] | 01/01/06 |
| MAN | 32.480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
| MAN | 33.480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
| MAN | 35.480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
| MAN | 35.480 12.4 | (TGA)[D2676LF05] | 01/01/06 |
| MAN | 37.480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
| MAN | 39.480 12.4 | (TGA)[D2676LF05] | 01/01/06 |
| MAN | 40.440 12.4 | (TGS)[D2676LF04] | 01/01/06 |
| MAN | 40.440 12.4 | [D2676LF04] | 01/01/06 |
| MAN | 40.480 12.4 | (TGA)[D2676LF02] | 01/01/06 |
| MAN | 40.480 12.4 | (TGA)[D2676LF03] | 01/01/06 |
| MAN | 41.480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
