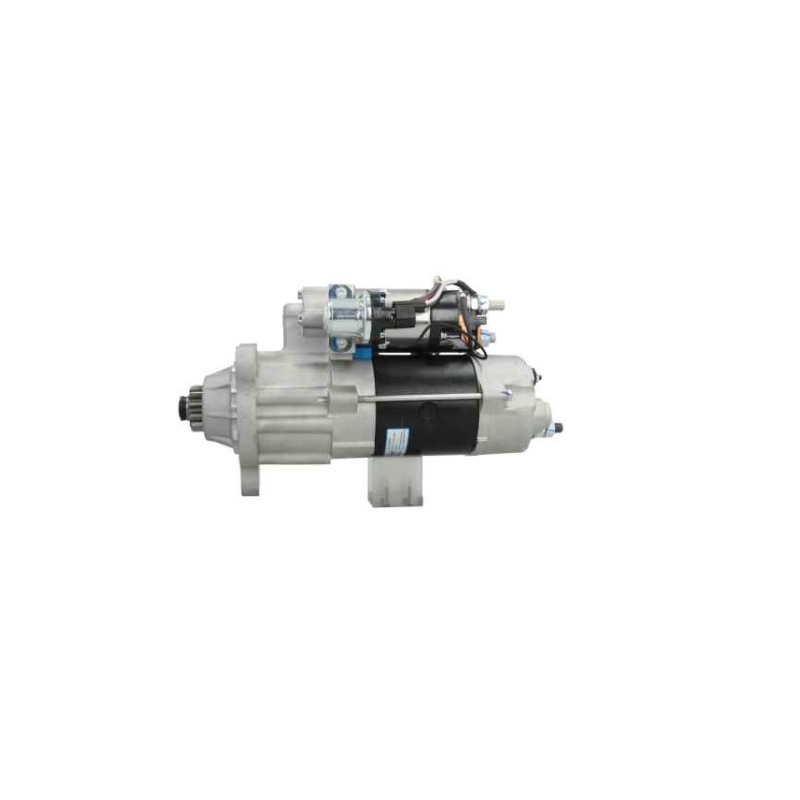

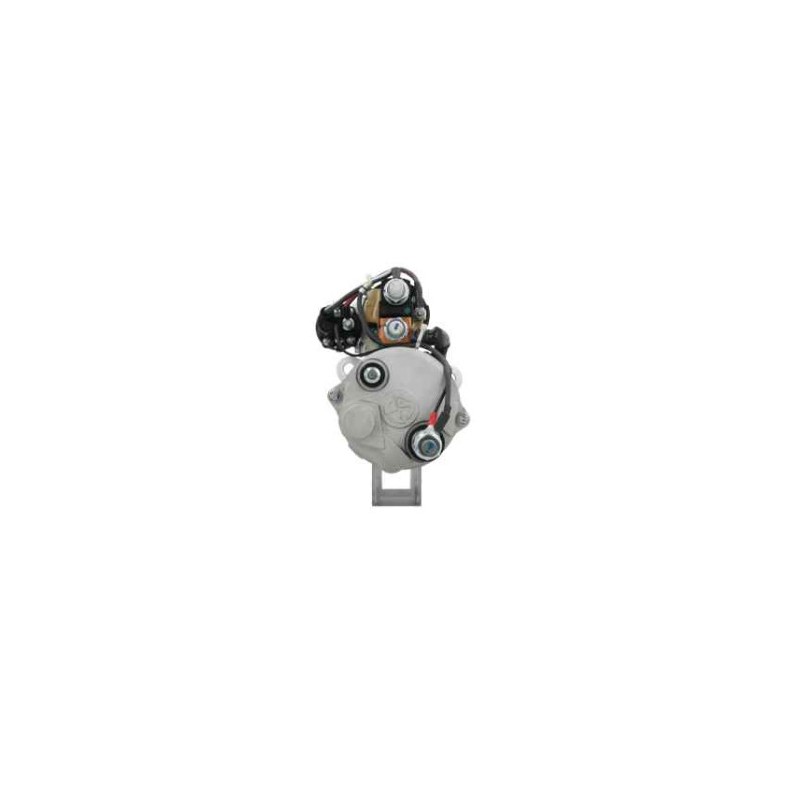

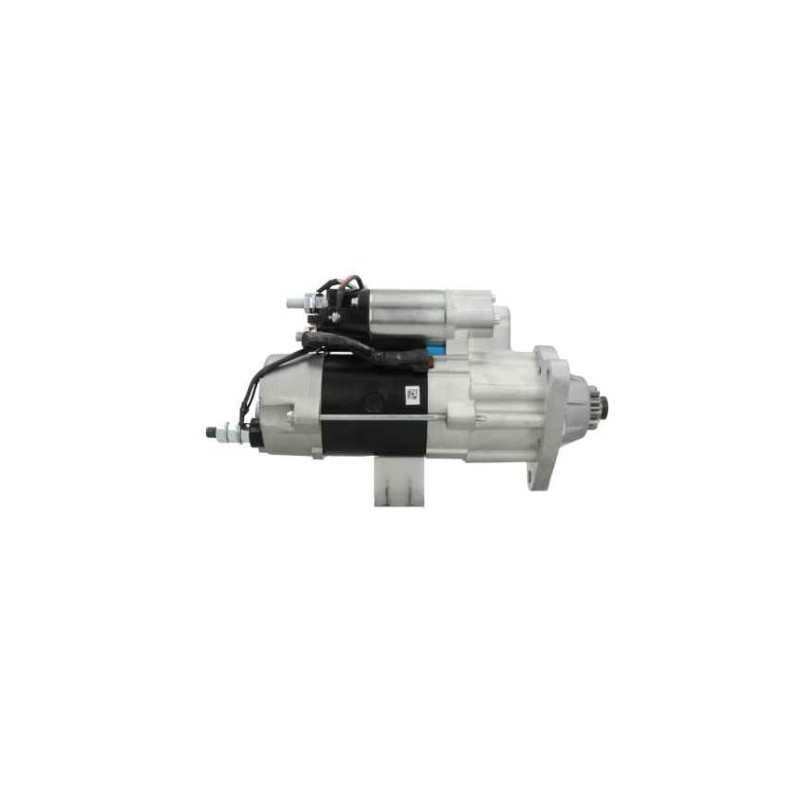

Starter PRESTOLITE m105r3509se / m105r3505se
Starter brand PRESTOLITE m105r3509se / m105r3505se
DELCO REMY 8200435 / 8200702 / 8300011
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Electrical Information | ||
|---|---|---|
| Voltage | 24 | |
| KW | 7.5 | |
| Insulated return | Oui | |

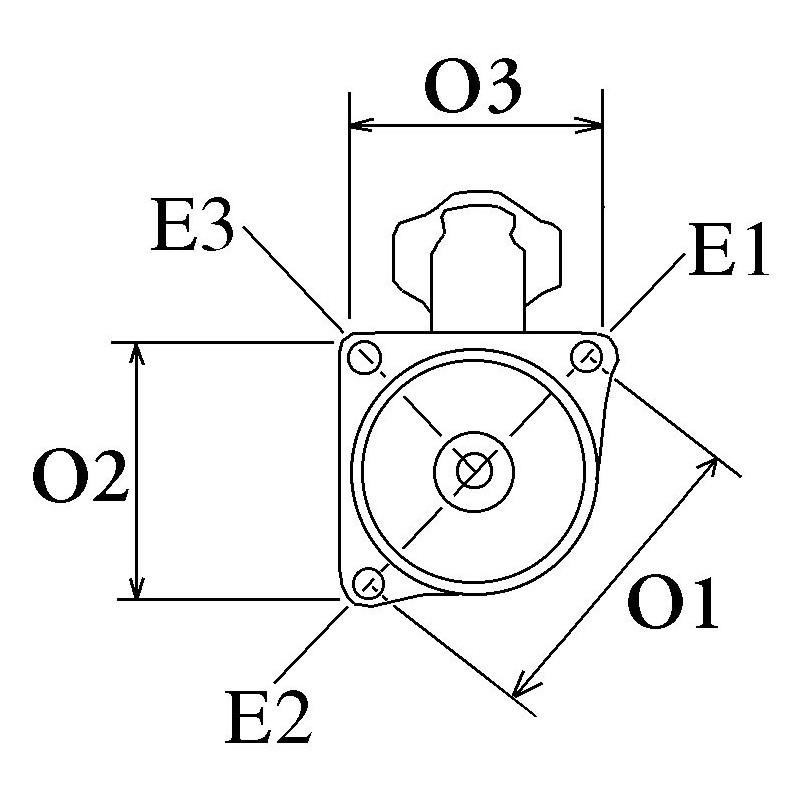

Physical Information | ||
|---|---|---|
| A | Mount flange | 92.00 |
| E | Mounting holes | 13.50 |
| E | Mounting holes 2 | 13.50 |
| E | Mounting holes 3 | 13.50 |
| B | Drive distance | 47.50 |
| F | Distance / Back | 310.00 |
| G | Distance / Front | 55.00 |
| H | Nbr of teeth | 12 |
| I | B+ | M12 |
| S | B- | M12 |
| N | Gear type | Gr |
| O | Distance mm | 126.50 |
| O | Distance 2 | 126.50 |
| O | Distance 3 | 126.50 |
| P | Rotation | CW |
| R | Total length mm | 413.00 |
Replacing | |
|---|---|
| 8200435 | DELCO REMY |
| 8200702 | DELCO REMY |
| 8300011 | DELCO REMY |
| m105r3505se | PRESTOLITE |
| m105r3509se | PRESTOLITE |
Mounted on :
CASE
CUMMINS
FIAT-ALLIS
LISTER
