Starter replacing 0001177002 / 0001177010 / 0001177011
W115945

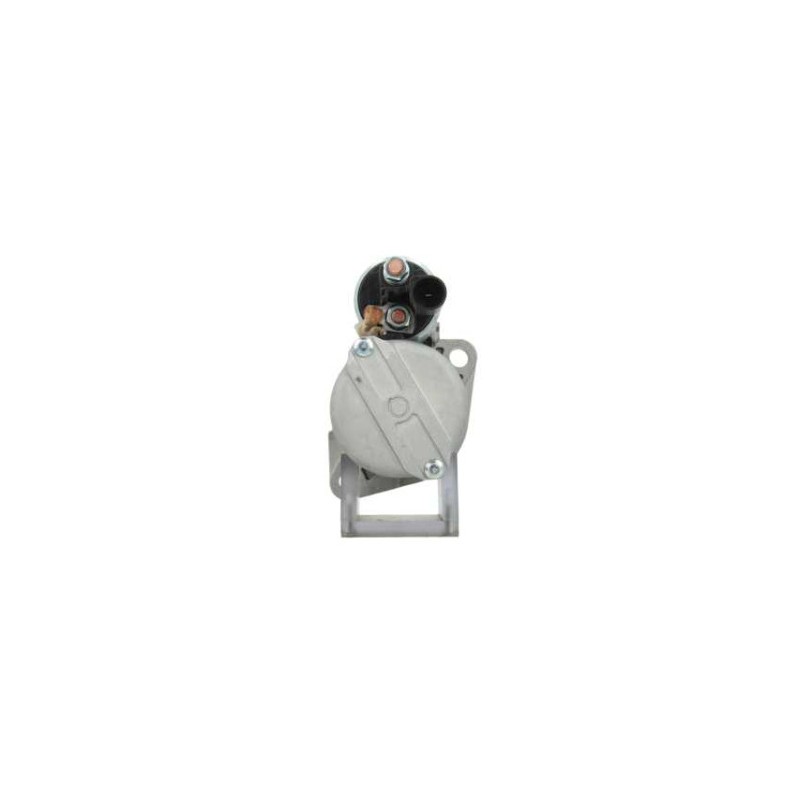

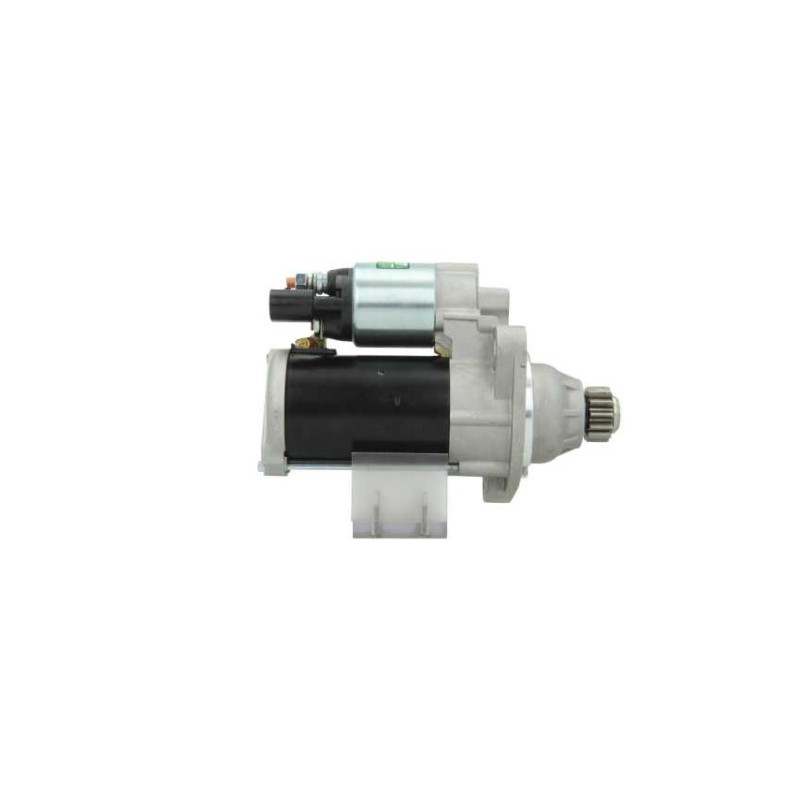

Starter replacing 0001177002 / 0001177010 / 0001177011 / VW 0AH911023H / 0AH911023HX
DRS0839 / LRS03798
NO CORE EXCHANGE NEEDED
Features
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 1.4 | |

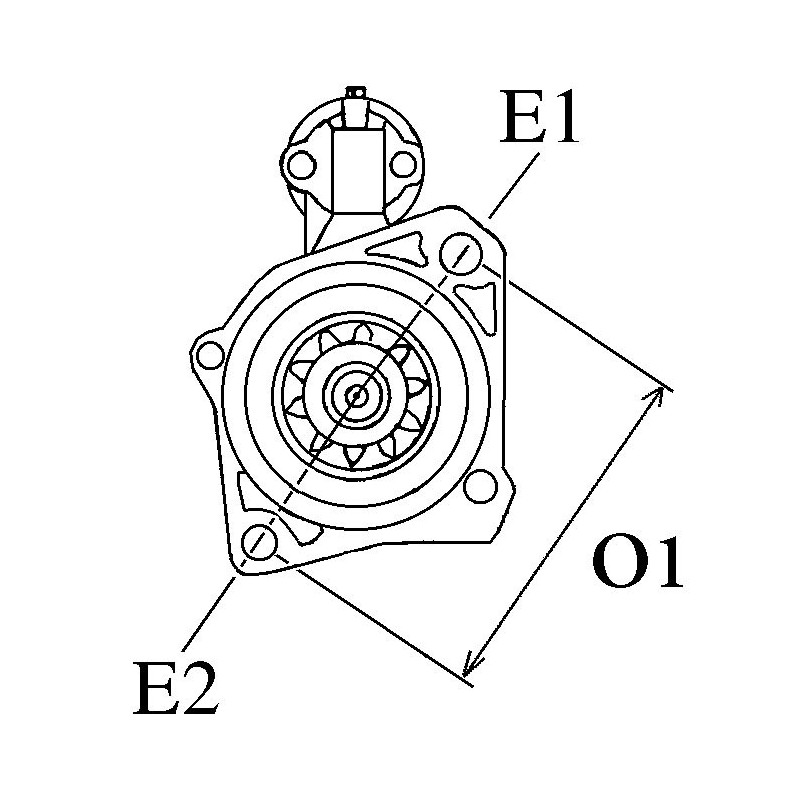

Physical information | ||
|---|---|---|
| H | No./teeth | 13 |
| P | Rotation | COUNTER CLOCKWISE |
| N | Gear type | GR |
| A | Mount. flange | 79.00 |
| I | B+ | M8 |
| No./mount. holes | 2 (0) | |
| B | Drive dist. | 56.00 |
| E | Mount. holes | 12.50 |
| E | Mount. hole 2 | 12.50 |
| F | Dist./back | 155.50 |
| G | Dist./front | 62.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 111.20 |
| R | Total length mm | 217.50 |
Replacing | ||
|---|---|---|
| 0001177002 | BOSCH | |
| 0001177010 | BOSCH | |
| 0001177011 | BOSCH | |
| 0AH911023H | VOLKSWAGEN | |
| 0AH911023HX | VOLKSWAGEN |
|
generic brand
used on :
SEAT / SKODA / AUDI
