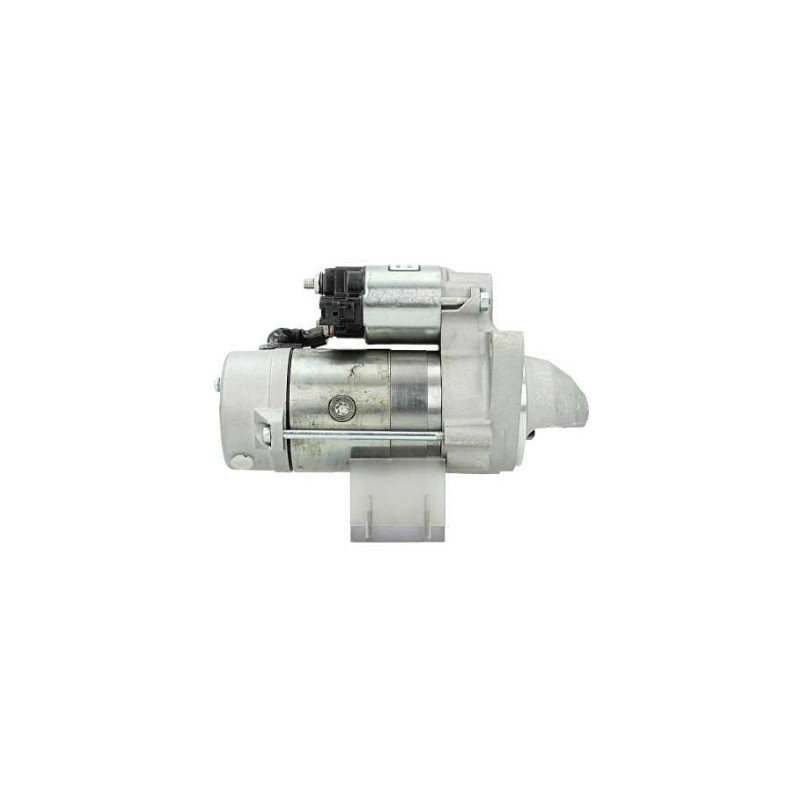

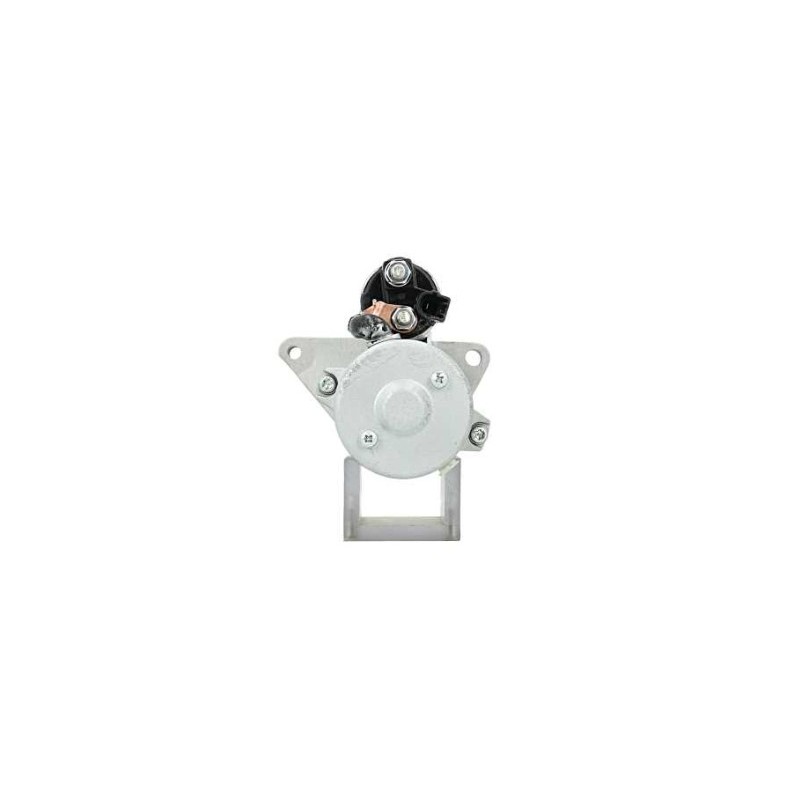

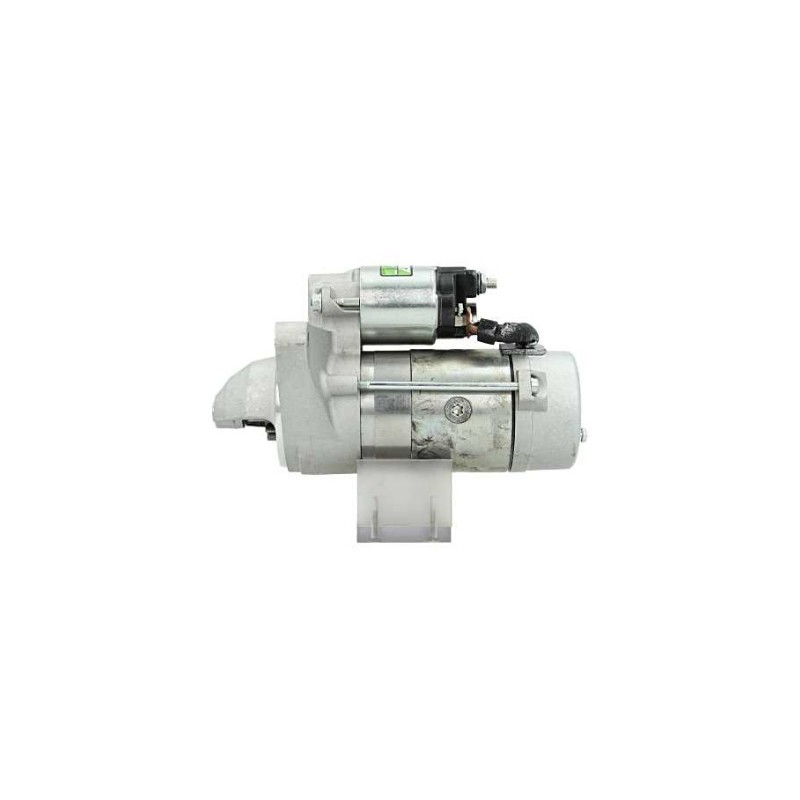

Starter replacing DENSO 428000-6070 / 428000-6200
Starter replacing DENSO 428000-6070 / 428000-6200 / DSN946
= TOYOTA 28100-0n050 / 28100-33120 / 28100-33121
DRS0657 / LRS02511 / 8080365F
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 2.0 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 74.00 |
| E | Mounting holes | M10 |
| E | Mounting holes 2 | 11.00 |
| B | Drive distance | 13.00 |
| F | Distance / Back | 182.30 |
| G | Distance / Front | 48.00 |
| H | Nbr of teeth | 10 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 121.30 |
| P | Rotation | CW |
| R | Total length mm | 229.00 |
Replacing | |
|---|---|
| 28100-0n050 | TOYOTA |
| 28100-33120 | TOYOTA |
| 28100-33121 | TOYOTA |
| 428000-6070 | DENSO |
| 428000-6200 | DENSO |
| cs1549 | HC-PARTS |
generic brand
Mounted on :
| Auris | Auris | 1.4 | Diesel | 2007 03 | - | 1ND-TV | D-4D | 66 | 90 | Hayon | 1364 | 4 | NDE150 |
| Yaris | Yaris | 1.4 | Diesel | 2011 09 | - | 1ND-TV | D-4D | 66 | 90 | Hayon | 1364 | 4 | _P13_ |
| Yaris | Yaris | 1.4 | Diesel | 2005 05 | 2005 09 | 1ND-TV | D-4D | 66 | 90 | Hayon | 1364 | 4 | SCP1_, NLP1_, NCP1_ |
| Yaris | Yaris | 1.4 | Diesel | 2005 08 | - | 1ND-TV | D-4D | 66 | 90 | Hayon | 1364 | 4 | NLP90 |
PAS DE CONSIGNE N I DE RETOUR DE L'
TWO YEARS WARRANTY
