Starter replacing MAGNETI MARELLI 63193001 / 63113001

Display all pictures

Starter replacing MAGNETI MARELLI 63193001 / 63113001

Reference: w113925

Condition: New product

4 Item Items

Starter for BMW

= BMW 12412247063 / 12412249295 / 12414496934 / 2247063 / 2249295

4496934

= 0986022581 / DRS3929

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

More info

More info

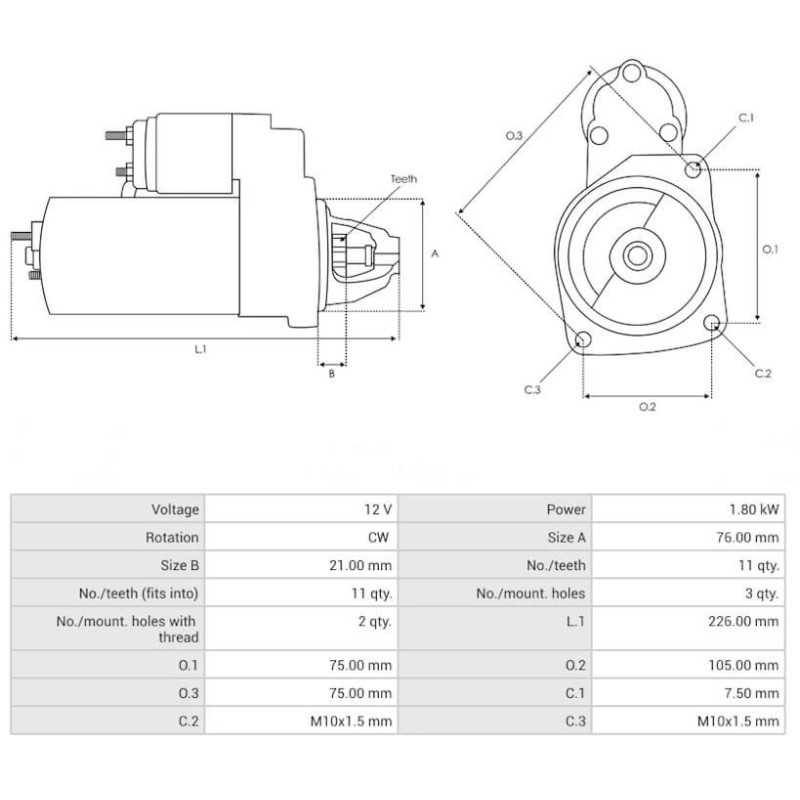

Physical Information
A	Mount flange	76.00
E	Mounting holes	7.80
E	Mounting holes 2	M10
E	Mounting holes 3	M10
B	Drive distance	21.00
F	Distance / Back	167.50
G	Distance / Front	57.00
H	Nbr of teeth	11
I	B+	M8
N	Gear type	Gr
O	Distance mm	74.15
O	Distance 2	105.20
O	Distance 3	74.15
P	Rotation	Cr
T	Plug type 30h	M5
R	Total length mm	227.00

Electrical Information
Voltage		12
KW		1.8

generic brand :

= Reference :

0986022581
12412247063
12412249295
12412344238
12414496934
210520112
2247063
263000
315120112
32791
32791N
4496934
4718SP
63113001
63193001
8080191F
913929
913929X
CS1265
DRS3929
DSN504
HCS1265
KTR421040224
LRS01791
MSN808
STR9014sa
TRS001

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY
