Information:
Electrical Information |
||
|---|---|---|
| Voltage | 12 | |
| KW | 1.3 | |
Physical Information |
||
|---|---|---|

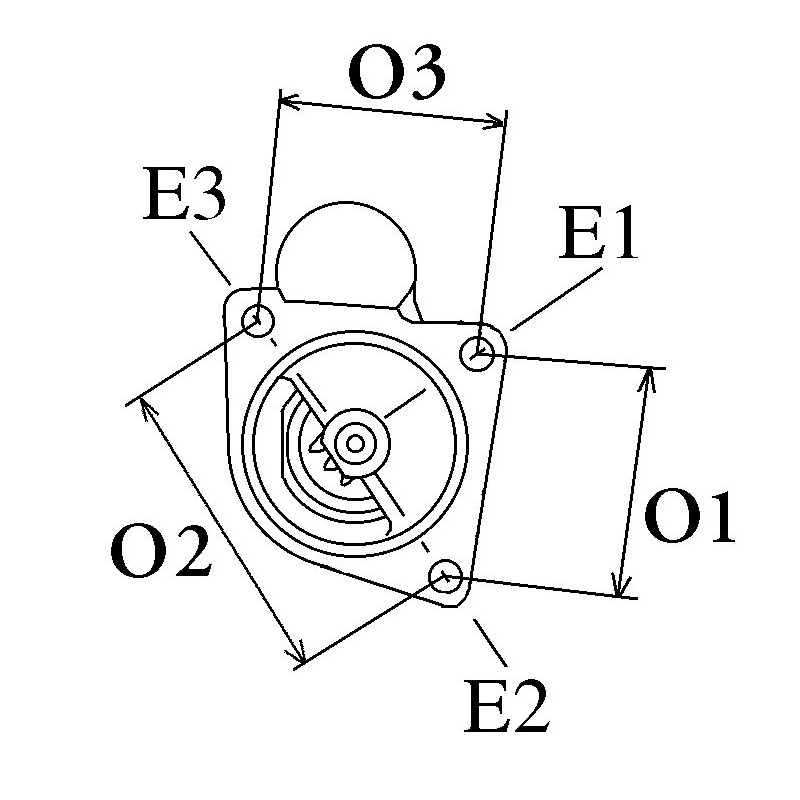

| A | Mount flange | 76.00 |
| E | Mounting holes | 8.00 |
| E | Mounting holes 2 | M10 |
| E | Mounting holes 3 | M10 |
| B | Drive distance | 21.00 |
| F | Distance / Back | 155.00 |
| G | Distance / Front | 55.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 74.00 |
| O | Distance 2 | 105.00 |
| O | Distance 3 | 74.00 |
| P | Rotation | Cr |
| R | Total length mm | 211.50 |
Replacing |
|
|---|---|
| 12417830793 | BMW |
| 12417832150 | BMW |
| 12417832486 | BMW |
| 12417834214 | BMW |
| d6ra108 | VALEO |

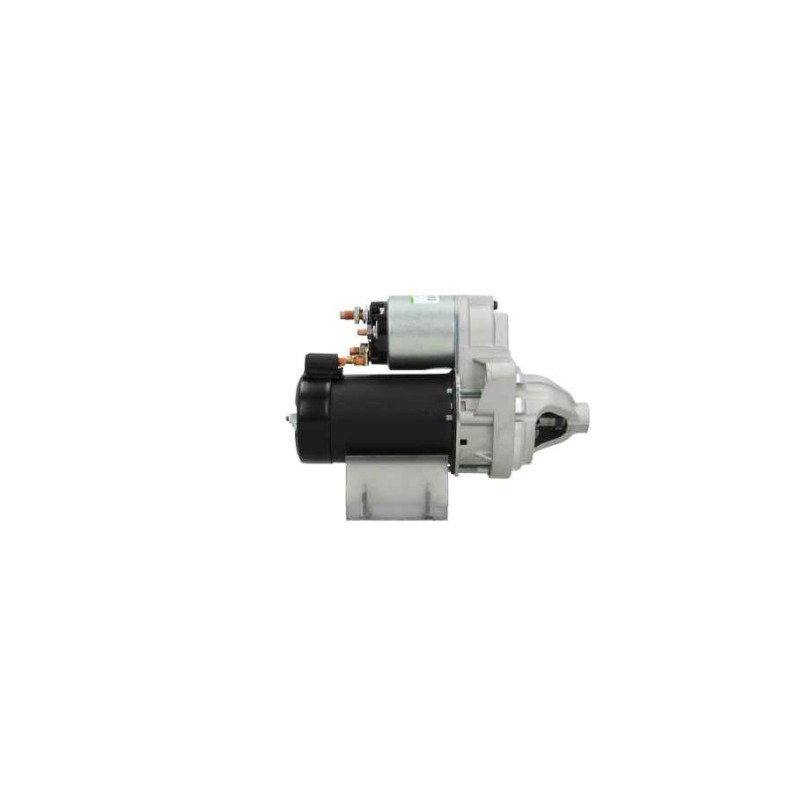

Mounted on :BMW : Z3 / Z4 / M3
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
