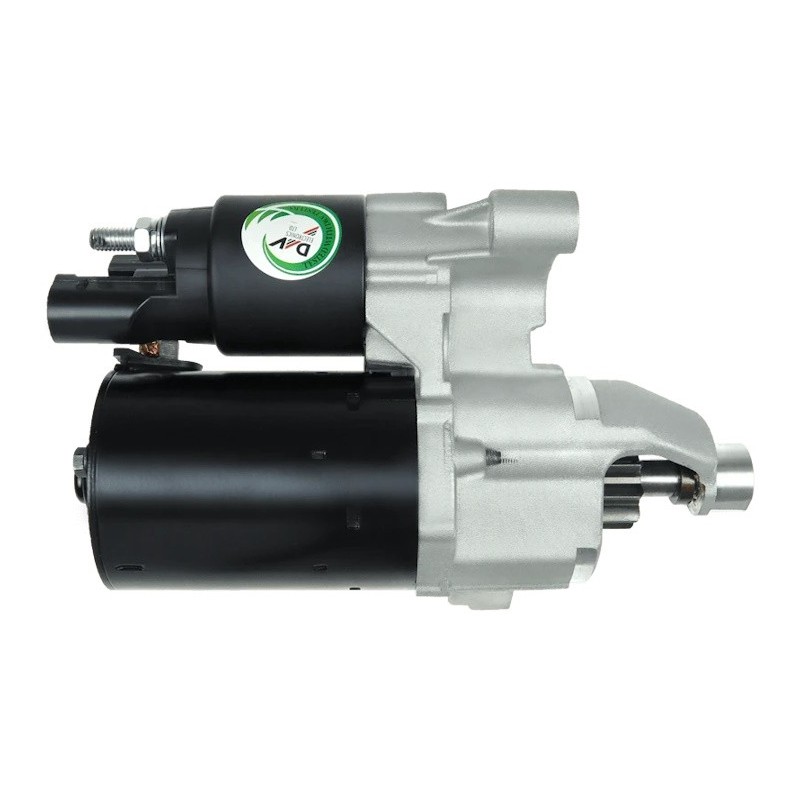

Starter 0001108466 remplace 0001107452 / 0001107453
SEG AUTOMOTIVE
0001108415 | Bosch |
|---|---|
0001108416 | Bosch |
0001108445 | Bosch |
0001108445SEL | +line |
0001108446 | Bosch |
0001108466 | Bosch |
0001108467 | Bosch |
025700 | Da Silva |
06E911021B | Volkswagen AG |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.4 | |
Physical Information | ||
|---|---|---|

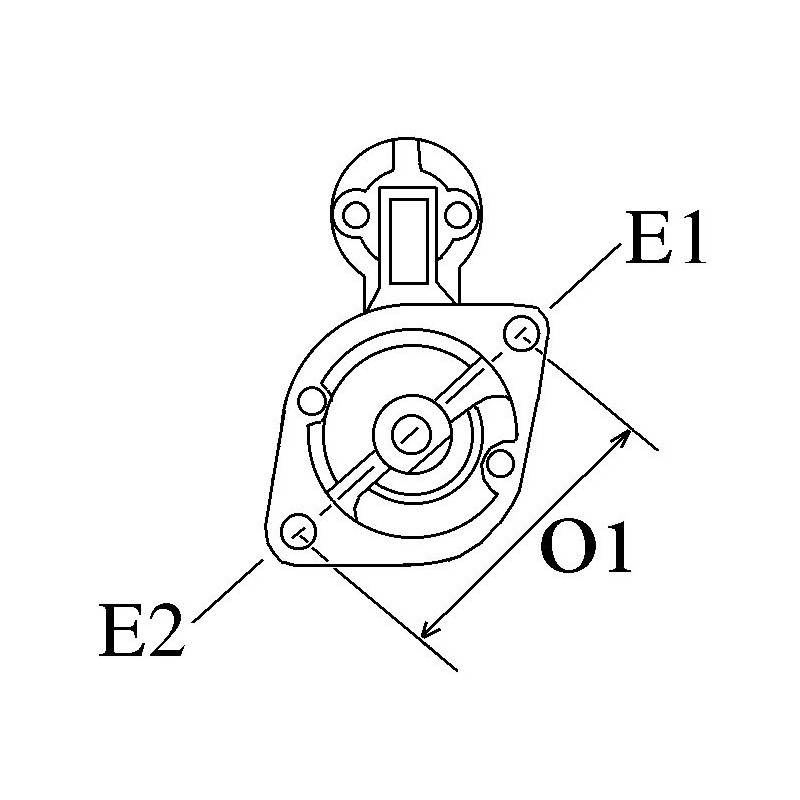

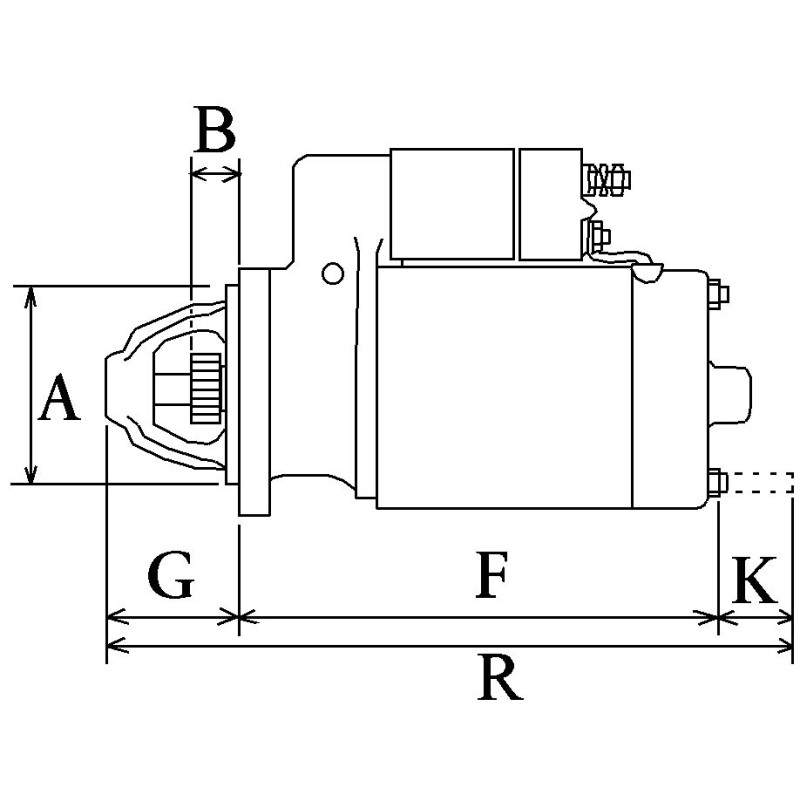

| A | Mount flange | 66.00 |
| E | Mounting holes | 11.00 |
| E | Mounting holes 2 | M12 |
| B | Drive distance | 24.00 |
| F | Distance / Back | 163.00 |
| G | Distance / Front | 60.00 |
| H | Nbr of teeth | 10 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 134.50 |
| P | Rotation | Cr |
replacing
| 0001108466 | BOSCH | 6010434.0 | SANDO |
| 079911021G | VW | 6010434.1 | SANDO |
| 079911021GX | VW | DRS0179 | DELCO |
| TS14E42 | VALEO | DS1289 | DELCO |
| UD04210(SEG)S | AS-PL | LRS02391 | LUCAS |
| 0001108445 | BOSCH | LRS2391 | LUCAS |
| 079911021C | VW | STB0008 | KRAUF |
| 0001108415 | BOSCH | STR50650 | WOODAUTO |
| AZMT-53-010-1609 | A.Z. MEISTERTEILE | STRS541 | 3EFFE |
| 254553 | KUHNER | 220584 | ERA |
| 254553B | KUHNER | S12BH0232A2 | SIDAT |
| 254553V | KUHNER | PRSS541 | 3EFFE |
| 10439629 | ALANKO | 19109N | WAI / TRANSPO |
| A91720 | ATL AUTOTECHNIK | STR1506 | ELECTROLOG |
| SBO434 | AUTOTEAM | STR10225 | ELECTROLOG |
| S1009B | PRESTOLITE | STX201382 | STARDAX |
| 0986029310 | BOSCH | 8080398 | FRIESEN |
| 200.530.102.000 | PSH | 8EA011612-671 | HELLA |
| 200.530.102.010 | PSH | H5010375 | HOFFER |
| 200.530.102.011 | PSH | 10010434AV | ITAB AUTOMOTIVE |
| 200.530.102.280 | PSH | 10010434OV | ITAB AUTOMOTIVE |
| 200.530.102.500 | PSH | 5010375 | MEAT & DORIA |
| 0001107452 | BOSCH | 438239 | VALEO |
| 0001107453 | BOSCH | SBO434A | AUTOTEAM |
| 0001108416 | BOSCH | 311252102 | DRI |
| 0001108446 | BOSCH | 12139 | EAI |
| 0001108467 | BOSCH | 42108466 | HERTH+BUSS |
| 06E911021B | VW | AU9033 | SNRA |
| 06E911021BX | VW | 139ST21 | STARTCAR |
| 079911021B | VW | ST01586 | TMI |
| 079911021BX | VW | 458405 | VALEO |
| 079911021CX | VW | V10-12-50010 | VEMO |
| 079911021D | VW | 25-4063 | ELSTOCK |
| 079911021DX | VW | 91-15-7282 | WILSON |
| 079911022 | VW | 95860411101 | VW |
| 079911022X | VW | BOS0001108466 | WOODAUTO |
| 115559 | CARGO | CST10434AS | CASCO |
| 116054 | CARGO | CST10434GS | CASCO |
| 17692N | WAI / TRANSPO | 20401434BN | REAL |
| 200.530.102 | PSH | 20401434OE | REAL |
Mounted on :
VW, PORSCHE, BENTLEY
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
