Starter for agriculture / Industrial / Tractor / Civi
Starter replacing 428000-0230 / 428000-0231 / 807383 / 809054
€108.90
Starter replacing 0001121032 / 0001121033 / 001911023b
w115542
Starter replacing :
BOSCH 0001121032 / 0001121033 / 001911023b / 0986022510
DRT2510 / LRS02346 / 001911023B
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.1 | |

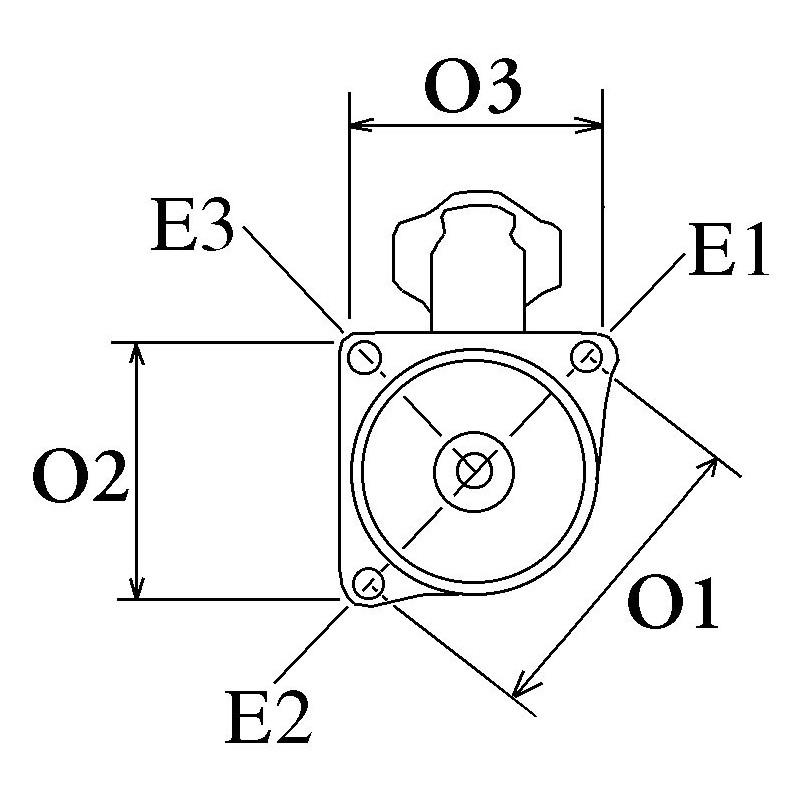

Physical Information | ||
|---|---|---|
| A | Mount flange | 82.50 |
| E | Mounting holes | 8.50 |
| E | Mounting holes 2 | 8.50 |
| E | Mounting holes 3 | M8 |
| B | Drive distance | 3.00 |
| F | Distance / Back | 190.00 |
| G | Distance / Front | 8.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 74.50 |
| O | Distance 2 | 105.50 |
| O | Distance 3 | 74.10 |
| P | Rotation | CW |
| R | Total length mm | 214.50 |
Replacing | |
|---|---|
| 0001121032 | BOSCH |
| 0001121033 | BOSCH |
| 001911023b | VOLKSWAGEN |
| cs1576 | HC-PARTS |
fits:
| Brand | Model | Tipo | Year |
| SEAT | Ibiza 1.4 | [BKY] | 01.2004-12.2007 |
| SKODA | Fabia 1.4 16V | [BKY] | 01.2004-12.2007 |
| VW | Polo 1.4 16V | [BKY] | 01.2005-12.2007 |
| VW | Polo 1.6 | [BAH] | 01/01/05 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
