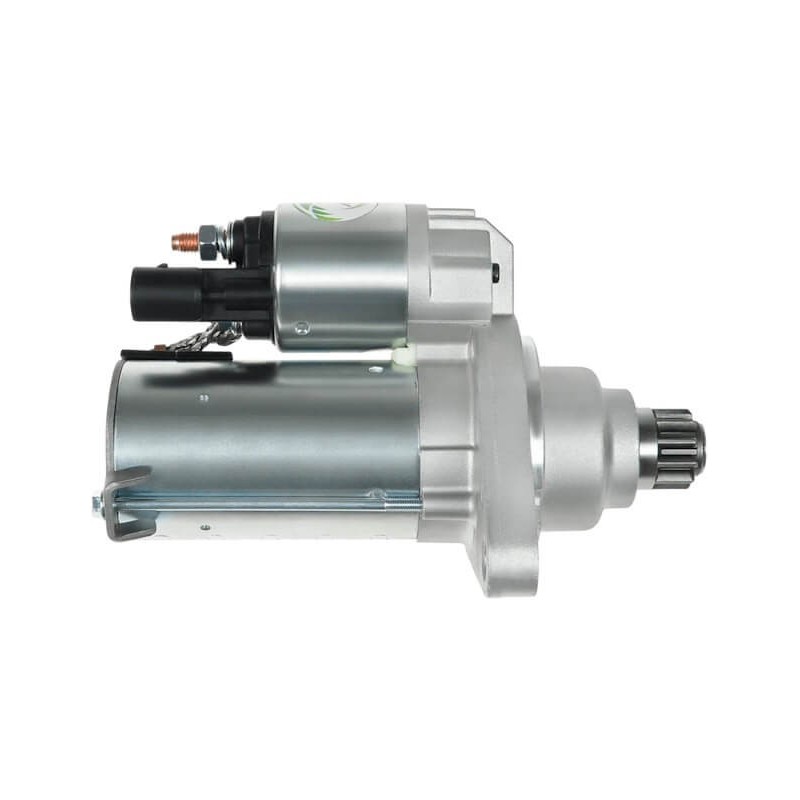

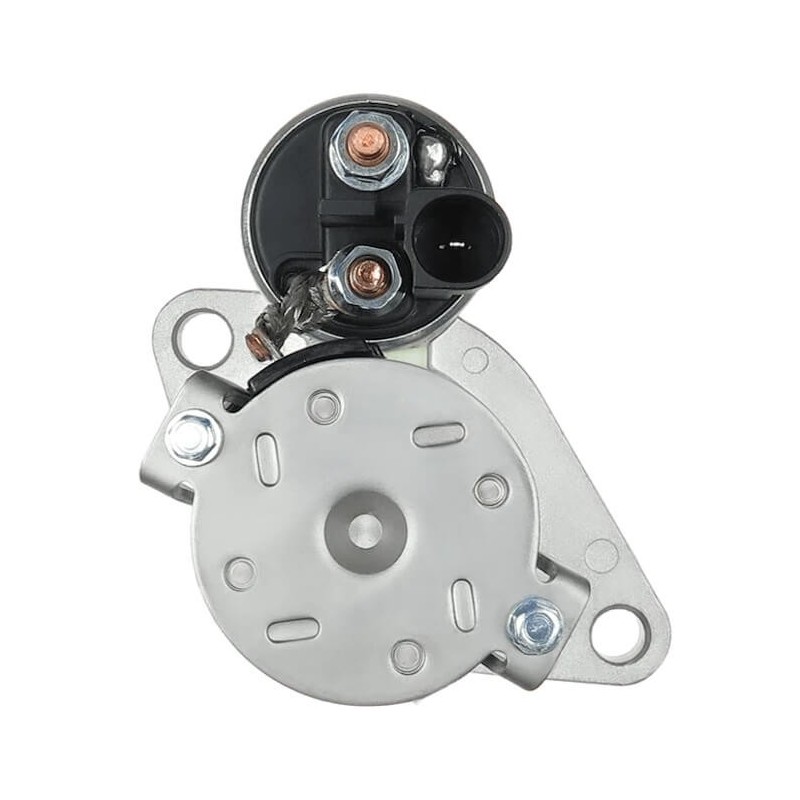

Starter replacing VALEO TS12ER22M / TS12ER22

Information:

Rotation COUNTER CLOCKWISE

KW 1.2

Voltage 12

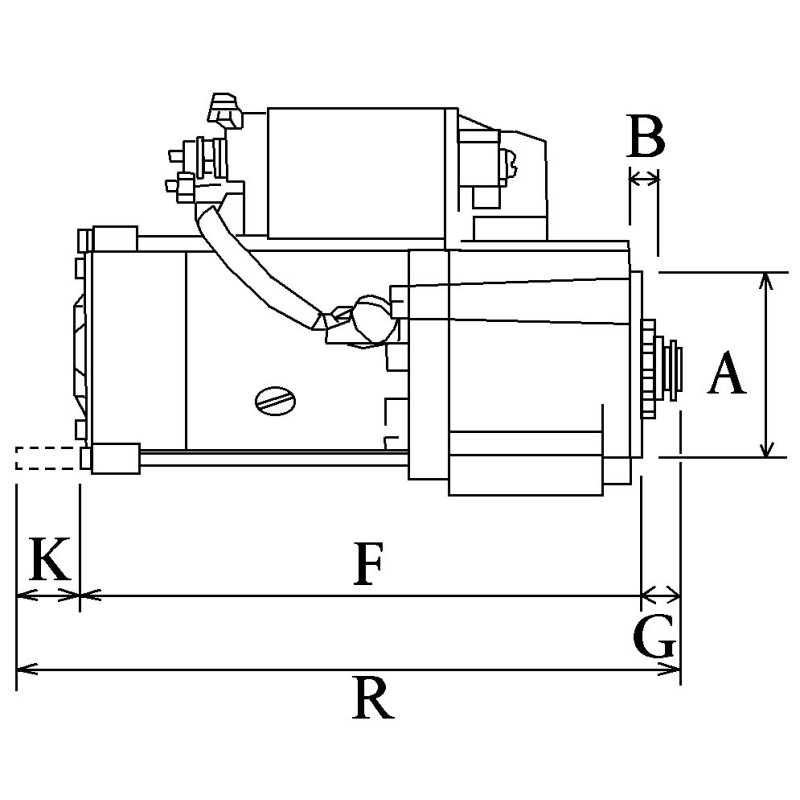

A = Mount flange 79.00

B = Drive distance 63.00

F = Distance / Back 144.50

G = Distance / Front 66.50

H = Nbr of teeth 11

B+ M8

Gear type Gr

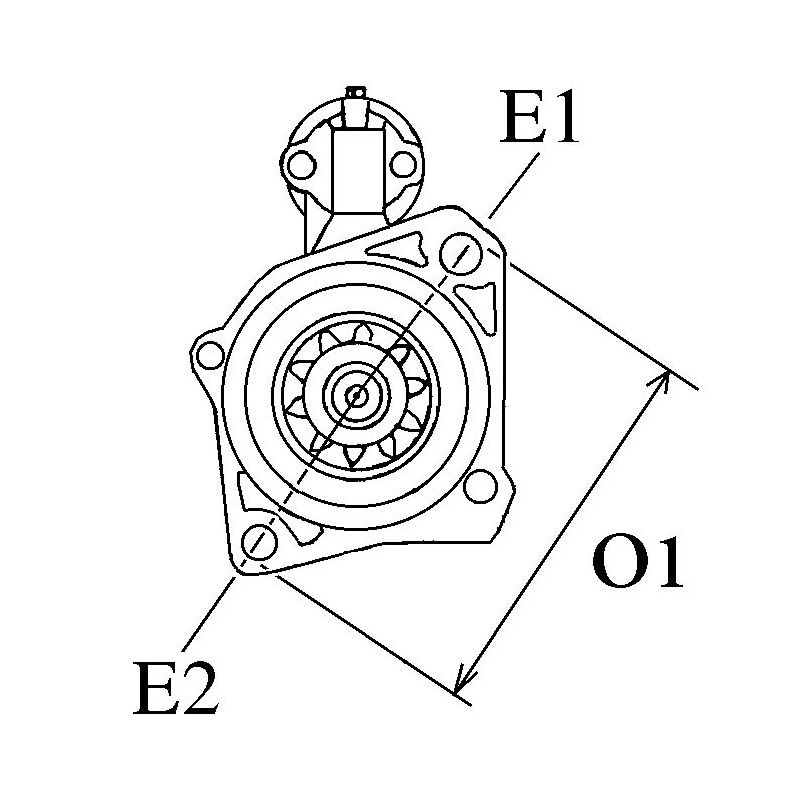

O = Distance mm 122.00

Nbr of mounting holes 2 (0)

R = Total length mm 211.00

Generic brand

replacing

                   NO CORE EXCHANGE NEEDED

                                       TWO YEARS WARRANTY
