Starters
Starter MAHLE AZE2512 / AZF3555 / IS0505 / IS0593
€99.90
WAGENDASS – French company
20,000 items available

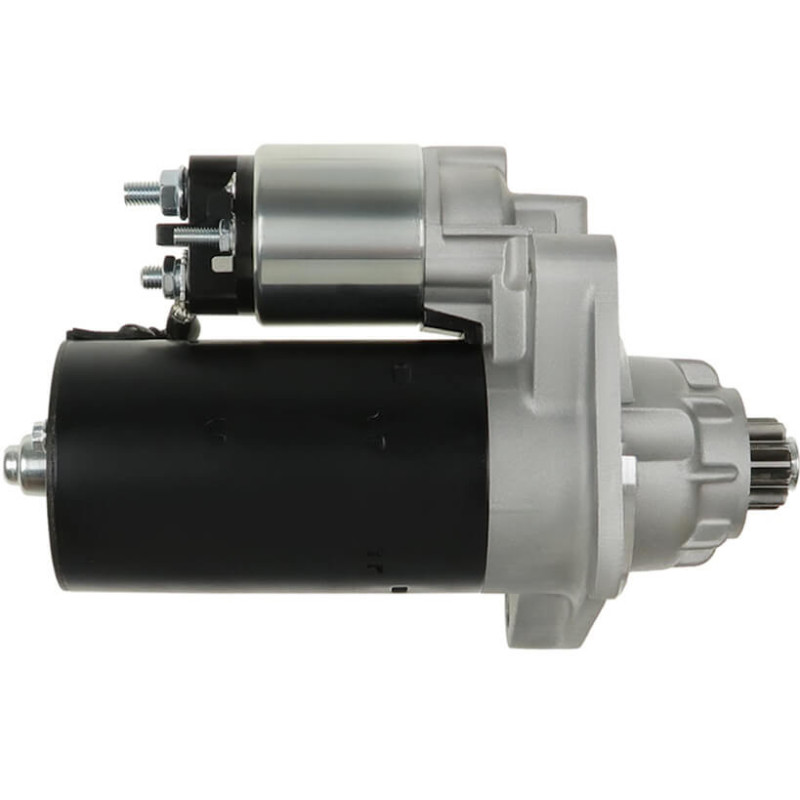

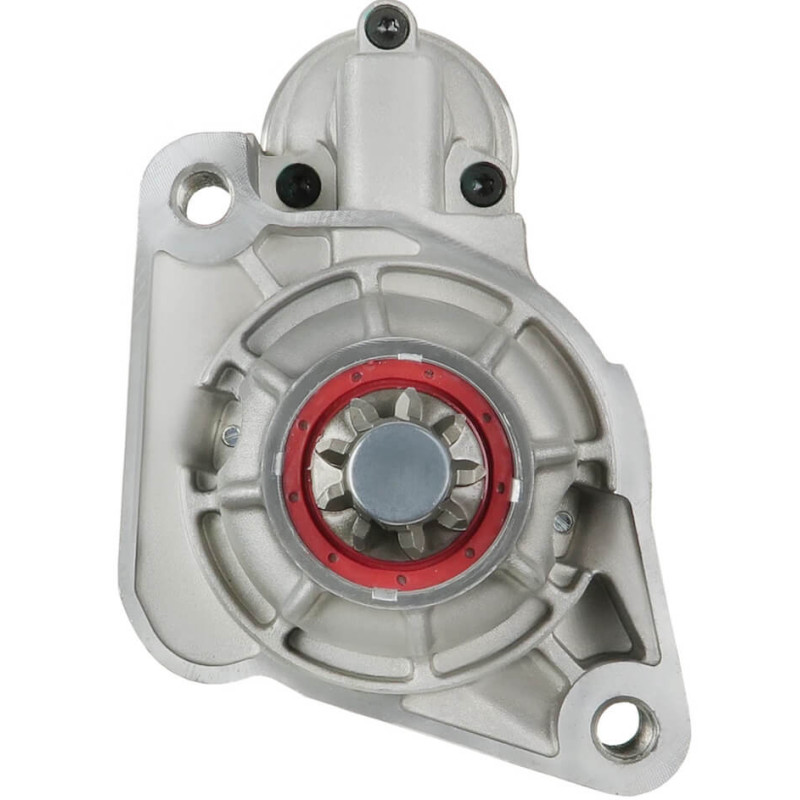

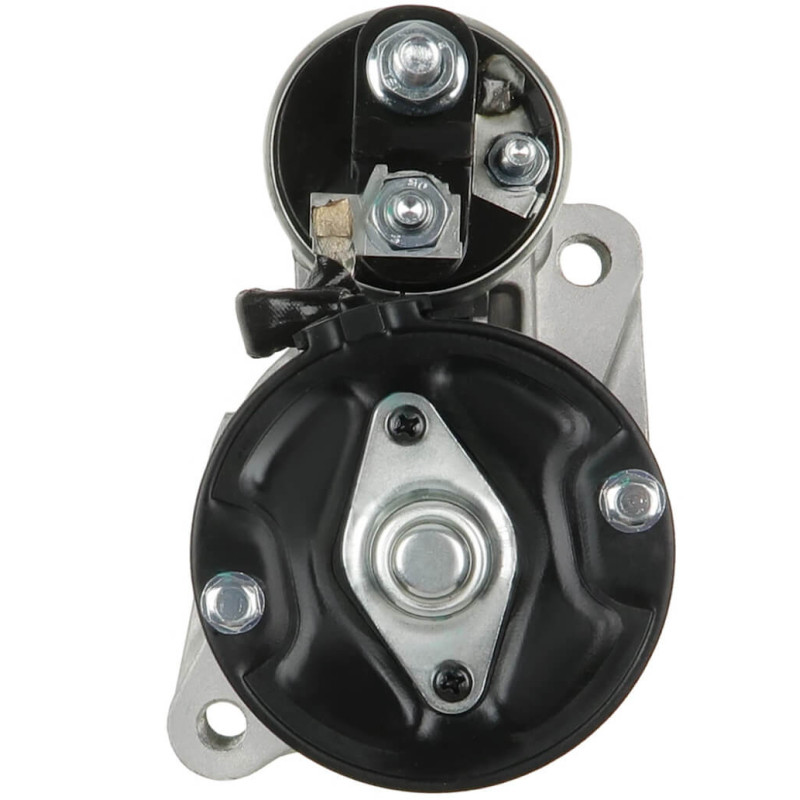

Starter replacing 0001125600 / 0001125601 / 070911023B for VW TOUAREG
w114723
BRAND NEW 12-volt / 2.2 kW / 9-tooth starter motor / Clockwise rotation
It is important to verify compatibility with your part number before purchasing,
as different configurations may exist for the same vehicle depending on the year and engine type.
Replaces
AUDI / VOLKSWAGEN 070-911-023B, 070-911-023BX, BOSCH 0001125600, 0001125601,0986022460
DRS3928 / LRS01679
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Reference
| STRS265 | 3EFFE | 101378 | KUHNER |
| AZMT-53-010-1047 | A.Z. MEISTERTEILE | 101378B | KUHNER |
| AC-CBS1378 | ACAUTO | LES0571 | LE PART |
| 25-3225CT | AINDE | 332084 | LOGISTIK |
| CGB-23928 | AINDE | LRS01679 | LUCAS |
| 10439941 | ALANKO | LRS1679 | LUCAS |
| ANM16148 | ANDEL | 063721378010 | MAGNETI MARELLI |
| ASM1751 | APEC | MQS1378 | MAGNETI MARELLI |
| S0403 | AS-PL | 5010439G | MEAT & DORIA |
| A22460 | ATL AUTOTECHNIK | NPANSM1751 | NAPA |
| AM-2601 | AUTO MAGNETO | 8213304 | POWERMAX |
| SBO283 | AUTOTEAM | 88213304 | POWERMAX |
| SBO283A | AUTOTEAM | S1055B | PRESTOLITE |
| BST2095 | BORG & BECK | IR9529 | PROTECH |
| 0001125600 | BOSCH | 20401382BN | REAL |
| 0001125601 | BOSCH | 20401382OE | REAL |
| 070901123B | BOSCH | 2S0190 | RIDEX |
| 0986022460 | BOSCH | 2S0190R | RIDEX |
| 1986S00822 | BOSCH | 6010283.0 | SANDO |
| S100424 | BTS TURBO | 6010283.1 | SANDO |
| S101265 | BTS TURBO | S12BH0444 | SIDAT |
| 114723 | CARGO | S12BH0444A2 | SIDAT |
| F032114723 | CARGO | MAV122830 | SIOM |
| BREF0320986022460 | CARWOOD GROUP | MAV122830A | SIOM |
| BREF032114723 | CARWOOD GROUP | VW9080 | SNRA |
| BREF0321986S00822 | CARWOOD GROUP | SKSTR-0330189 | STARK |
| CST10283AS | CASCO | 070ST21 | STARTCAR |
| CST10283GS | CASCO | TT16386 | TESLA TECHNICS |
| 3052 | CEVAM | ST01290 | TMI |
| CMA-621453 | COMLINE | 458885 | VALEO |
| DRS3928 | DELCO | V10-12-25600 | VEMO |
| DS5038 | DELCO | 070911023B | VW |
| 311236092 | DRI | 070911023BX | VW |
| S-50486 | DTS | 300.563.092.010 | WAI |
| 12070 | EAI | 300.563.092.215 | WAI |
| STR1365 | ELECTROLOG | 300.563.092.280 | WAI |
| 25-3225 | ELSTOCK | 300.563.092.340 | WAI |
| 1638135080 | EUROREPAR | 300.563.092.395 | WAI |
| 11022460 | EUROTEC | 300.563.092.460 | WAI |
| 106755 | FARCOM | 300.563.092.461 | WAI |
| 8022460 | FRIESEN | 32700N | WAI |
| SG0683 | GHIBAUDI | S132.367 | WAI |
| SG0683RB | GHIBAUDI | S145.464 | WAI |
| 8EA012526-051 | HELLA | S148.972 | WAI |
| 3116878 | HENKEL PARTS | STR50486 | WOODAUTO |
| 3116879 | HENKEL PARTS | WOOSTR50486 | WOODAUTO |
| 42022460 | HERTH+BUSS | ||
| 10010283AV | ITAB AUTOMOTIVE | ||
| 10010283OV | ITAB AUTOMOTIVE | ||
| STB1378 | KRAUF |
Features
| Voltage | 12 | |
| Kw | 2.2 | |
| H | Nbr of teeth | 9 |
| P | Rotation | Cr |
| N | Gear type | Gr |
| A | Mount flange | 82.50 |
| I | B+ | M8 |
| B | Drive distance | 60.00 |
| E | Mounting holes | M12 |
| E | Mounting holes 2 | M12 |
| F | Distance / Back | 169.00 |
| G | Distance / Front | 63.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 130.50 |
| R | Total length mm | 245.00 |
generic brand
Mounted on :
VW
Mounting on
| Brand | Model | Typ | Year |
| VW | TOUAREG (7LA, 7L6, 7L7) 2.5 R5 TDI | BAC | 01.2003 - 05.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 2.5 R5 TDI | BLK | 08.2003 - 05.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 2.5 R5 TDI | BPD | 08.2003 - 05.2010 |
| VW | TOUAREG (7LA, 7L6, 7L7) 2.5 R5 TDI | BPE | 01.2003 - 05.2010 |
