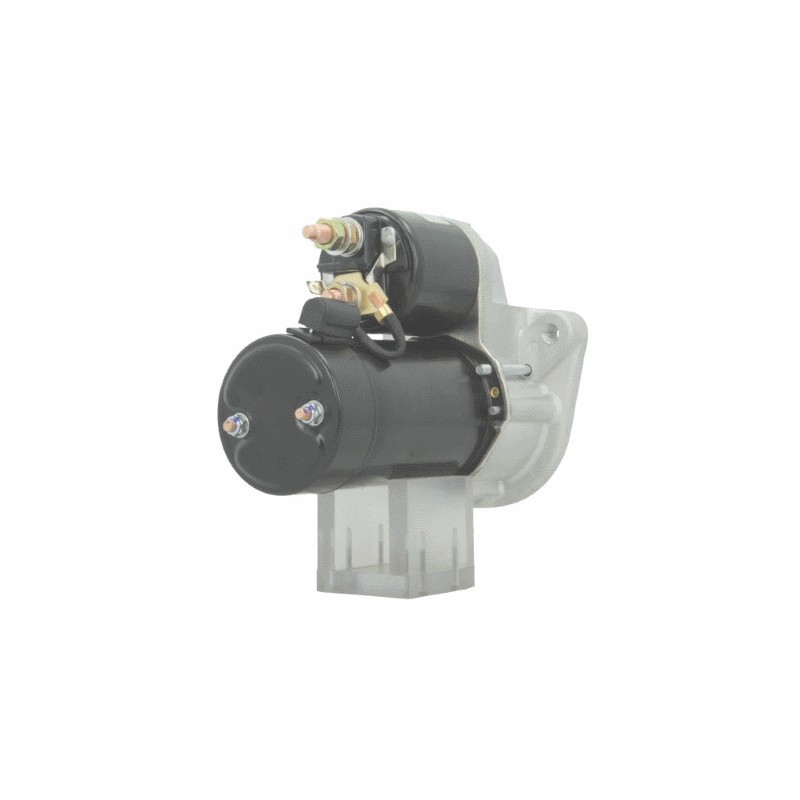

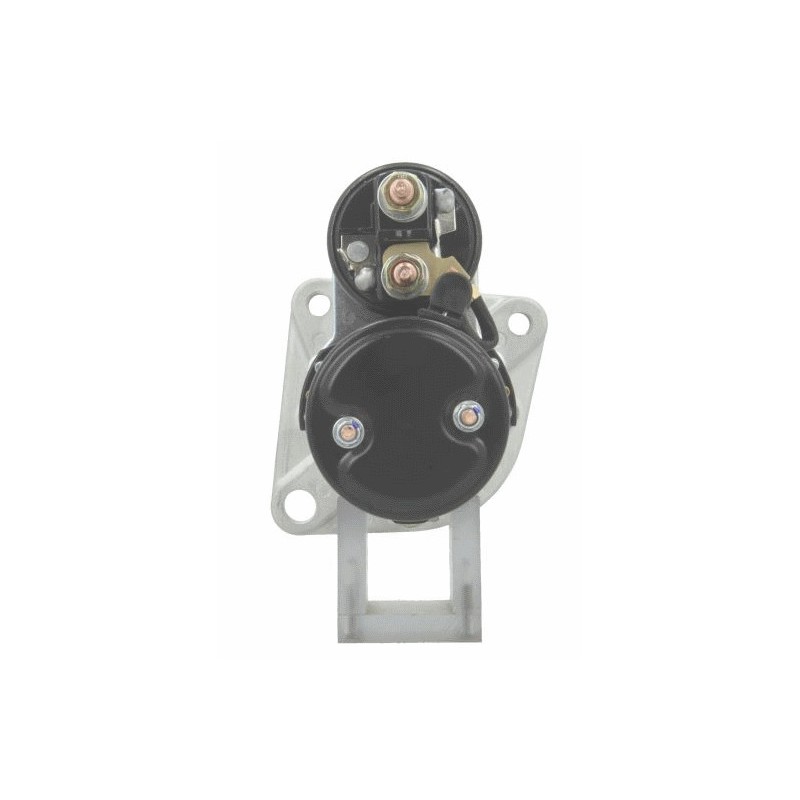

Starter replacing DENSO 228000-3381 / 228000-3380
Starter for MAZDA, MERCURY
0986012270 / 0986014991 / 0B6S818400 / E30118400 / E30118400A / E30118400B / E35618400
MITSUBISHI M003Q38882, M003T30881, M003T38881, M003T38881A, M003T38881B, M003T38881C, M003T38882, M003T38882A
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 12
KW 0.9
A = Mount flange 74.00
B = Drive distance 15.00
F = Distance / Back 145.50
G = Distance / Front 52.00
H = Nbr of teeth 8
B+ M8
Gear type Dd
O = Distance 1 75.75
O = Distance 2 108.50
O = Distance 3 76.50
Rotation Cr
Nbr of mounting holes 3 (2)
Drive Type Steel
R = Total length mm 198.00
generic brand
DENSO228000-3380, 228000-3381, FORD E7GZ-11002-A, E8GY-11002-A, E9JY-11002-A, F0JY-11002-A, F0JY-11002-ARM, F1JY-11002-A, F1JY-11002-ARM, FOJY-11002-A
MAGNETI MARELLI 943251885010, MAZDA B315-18-400A, B505-18-400, B593-18-400, B593-18-400R, B593-18-400R00, B630-18-400, B630-18-400A, B676-18-400, B676-18-400A, B676-18-400B, B676-18-400R00, B6DK-18-400, E356-18-400, E357-18-400, E357-18-400A, F8B1-18-400A
MITSUBISHI M003Q38882, M003T30881, M003T38881, M003T38881A, M003T38881B, M003T38881C, M003T38882, M003T38882A, M003T38882B, M003T38882C, M003T38883, M003T38884, M003T38982, M003T43581, M003V38882, M3Q38882, M3T30881, M3T38881, M3T38881A, M3T38881B, M3T38881C, M3T38882, M3T38882A, M3T38882B, M3T38882C, M3T38883, M3T38884, M3T38982, M3T43581, M3V38882, VALEO 1EM008802, 458326
used on :
| MAZDA | 323 1.0, 1.3, 1.4 | 1.0/1.3/1.4 | 01/85 | / |
| MAZDA | 323 1.1 | 1.1 | 01/85 | 12/87 |
| MAZDA | 323 1.5 | 1.5 | 01/85 | 12/87 |
| MAZDA | 323 1.5 | 1.5 | 01/87 | 12/89 |
| MAZDA | 323 1.6 i | 1.6i | 01/85 | 12/87 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
