Starter BOSCH 0001109301 / 0001109300
Starter BOSCH replacing 0986021640 / 0986021641 / 0986025580 / Fiat 1347058080 / 134705880 / 55195967 / PSA 5802AQ / 5802FA / 5820AQ
BOSCH / SEG AUTOMOTIVE
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features

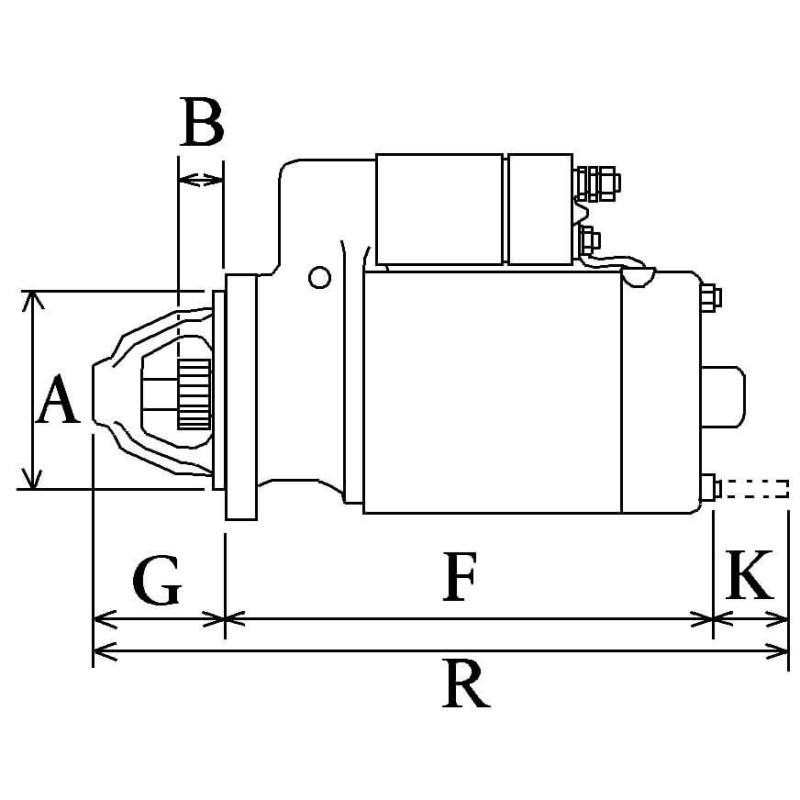

Physical information | ||
---|---|---|
H | No./teeth | 9 |
P | Rotation | CW |
N | Gear type | GR |
A | Mount. flange | 82.00 |
I | B+ | M8x1.25 |
No./mount. holes | 3 (3) | |
B | Drive dist. | 1.00 |
E | Mount. holes | M8 |
E | Mount. hole 2 | M8 |
E | Mount. hole 3 | M8 |
F | Dist./back | 193.00 |
G | Dist./front | 37.80 |
M | Mount. bracket | No |
O | Dist. mm | 117.00 |
O | Dist. 2 | 82.00 |
O | Dist. 3 | 82.00 |
R | Total length mm | 243.80 |
Electrical information | ||
---|---|---|
Voltage | 12 | |
Kw | 2.5 |
replacing
0001109300 | Bosch |
0001109301 | Bosch |
0986021640 | Bosch ruil |
0986021641 | Bosch ruil |
0986025580 | Bosch ruil |
11021640 | EuroTec |
11090073 | EuroTec |
11090134 | EuroTec |
113935 | Cargo |
114145 | Cargo |
115501 | Cargo |
11956 | EAI |
12009 | EAI |
1206241A | PIC |
1347058080 | Fiat |
134705880 | Fiat |
1524014 | Scania |
253395 | Elstock |
300050092 | DRI |
3103 | CEVAM |
33223 | Lester |
438401 | Valeo |
458659 | Valeo |
4831SP | Spidan |
4888SP | Spidan |
500540093 | PSH |
55195967 | Fiat |
551959670 | PSH |
5802AQ | PSA |
5802FA | PSA |
5820AQ | PSA |
63521093000 | Magneti Marelli |
63521093010 | Magneti Marelli |
6992 | Lester |
71724237 | Fiat |
71789529 | Fiat |
8000032 | Remy |
8000320 | Remy |
8000567 | Remy |
8021640 | Friesen |
8080119F | Friesen |
8EA738258151 | Hella |
913967 | EDR |
944280216400 | Magneti Marelli |
A21640 | ATL |
A78670 | ATL |
CS1389 | HC |
CS1434 | HC |
DRS3967 | Remy |
DRS3967N | Remy |
DSN3014 | Denso |
F042S0H075 | Bosch |
H646449C | Valeo |
HCS1389 | HC |
HCS1434 | HC |
K1347058080 | Fiat |
LRS02223 | Lucas |
LRS2223 | Lucas |
MS453 | Mahle |
MSN2026 | Magneti Marelli |
OSM11313 | Optimum |
SP4831 | Spidan |
STR1342sa | Electrolog |
STR2090SA | Electrolog |
STR2248 | Unipoint |
STRH075 | Unipoint |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
