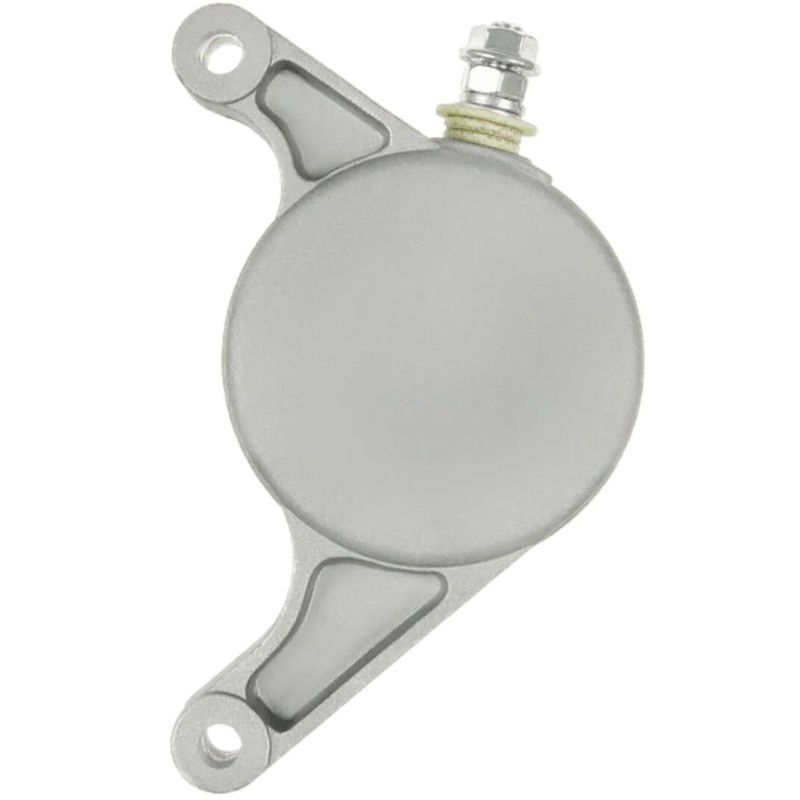

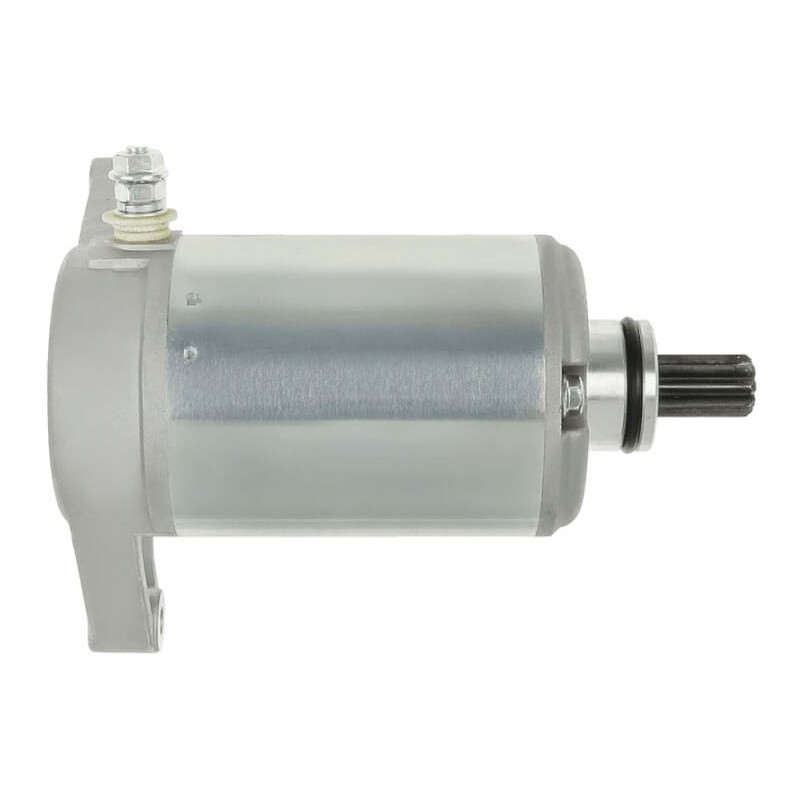

Starter replacing DENSO 228000-9310 / 128000-4994 / 128000-4993

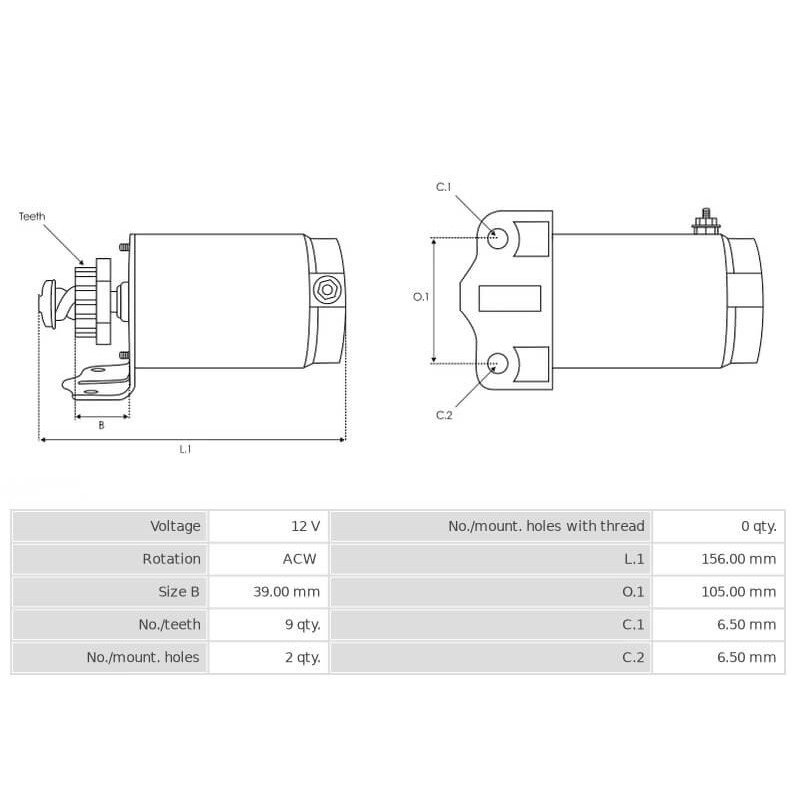

Information:

Rotation COUNTER CLOCKWISE

KW 0.4

Voltage 12

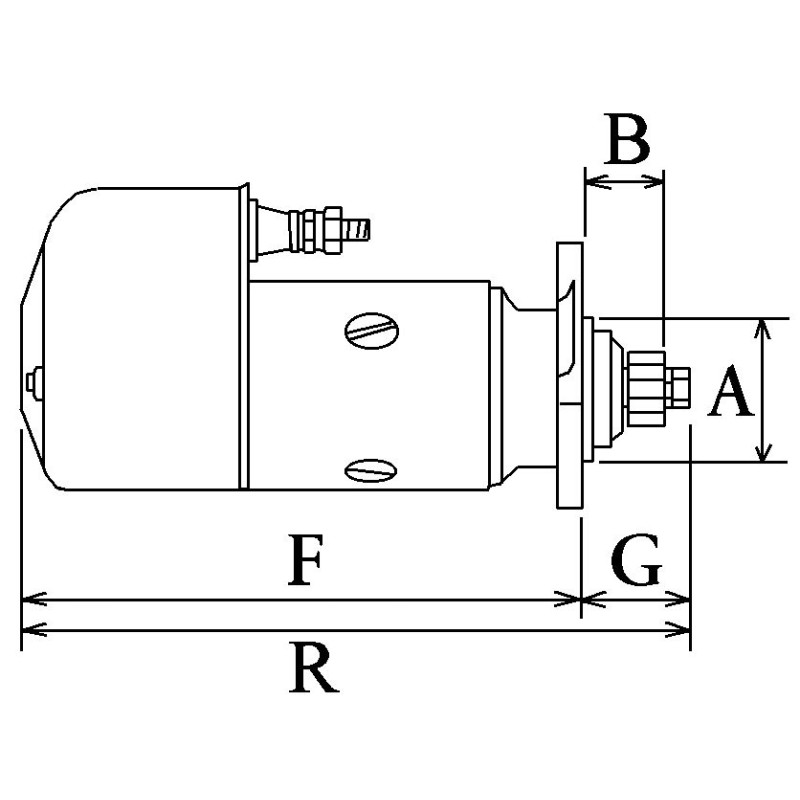

A = Mount flange 35.75

B =  Drive distance 37.60

F =  Distance / Back 118.00

G =  Distance / Front 37.60

H =  Nbr of teeth 9

B+ M6

Gear type Dd

O =  Distance mm 104.75

Nbr of mounting holes 2 (0)

Clutch Tipo Dry

Drive Tipo Steel

R =  Total length mm 156.00

brand / wai

= DENSO 228000-9310 / 128000-4994 / 128000-4993 / 128000-4992 128000-4991 / 128000-4990 / 128000-4242 / 128000-4241 / 128000-4240 / 128000-3762 / 128000-3761 / 128000-3760

= YAMAHA 1UV-81800-50 / 1UY-81800-51-00 / 1UY-81890-00-00 1UY-81890-11  / 1YW-81800-50 / 1YW-81800-50-00 / 1YW-81800-51-00 / 2HR-81800-50 / 2HR-81800-51-00 / 2HR-81800-52-00 / 4SH-81800-00

= YANMAR 2HR-81800-52

for YAMAHA :

YFM 350 Big Bear (1987-1996)

                     NO CORE EXCHANGE NEEDED

                                     TWO YEARS WARRANTY
