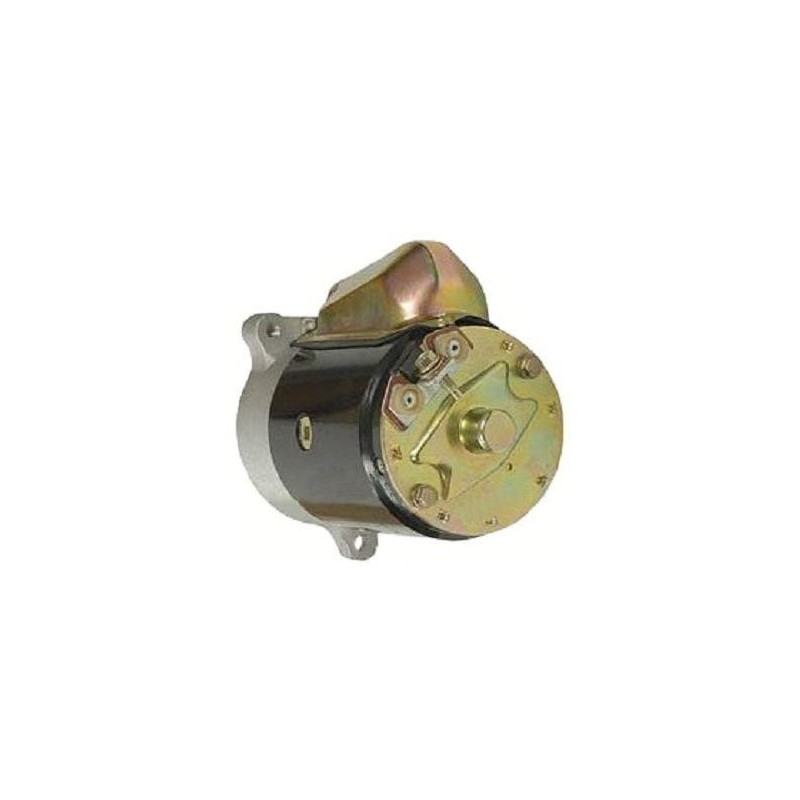

Starter replacing FORD D5AZ11002C / D5AF11001EA / D2AF11001JA

Information:

Voltage 12

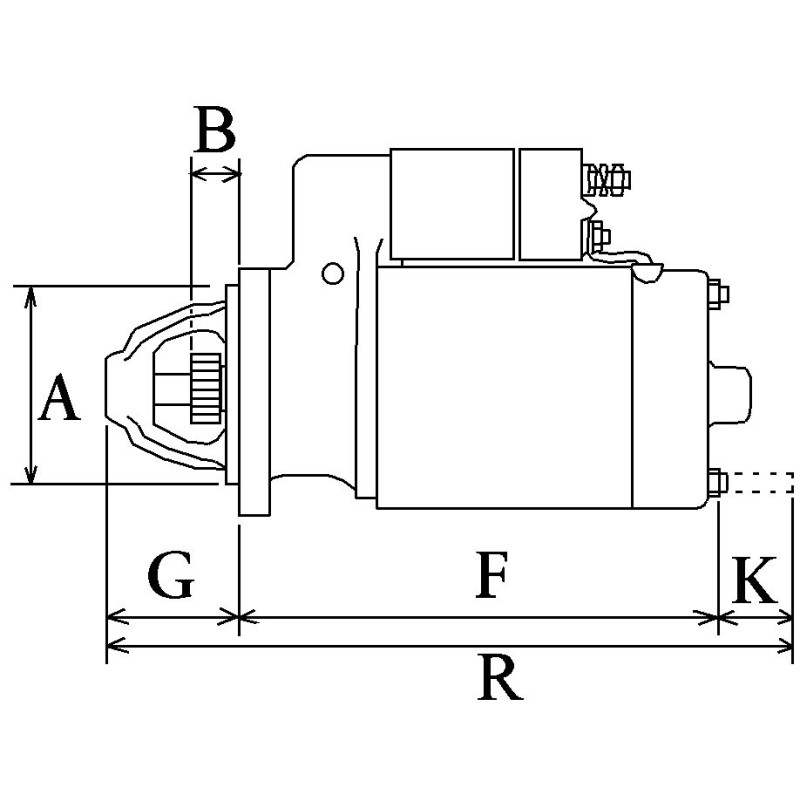

A = Mount flange 103.70

B = Drive distance 11.50

F = Distance / Back 183.00

G = Distance / Front 55.00

H = Nbr of teeth 9

B+ M8

Gear type Dd

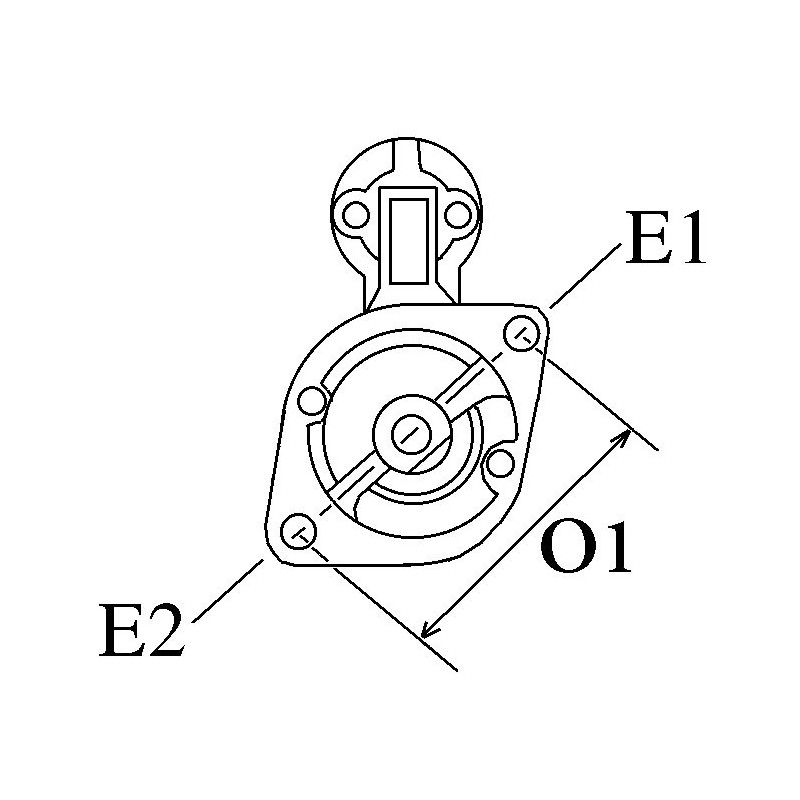

O = Distance 133.00

Rotation Cr

Nbr of mounting holes 2 (1)

Drive Tipo Steel

Tipo starter 4.5"

R = Total length mm 249.00

generic brand

FORD D1AF-11001-AA, D1AF-11002-A, D1AZ-11001-A, D1AZ-11002-A, D2AF-11001-AA, D2AF-11001-JA, D2HF-11001-E, D2HF-11001-EA, D5AF-11001-EA, D5AZ-11002-C, D7AZ-11002-A, D7AZ-11002-B, D7LZ-11002-A, D8AF-11001-AA, D8AF-11001-BA, D8LF-11001-AA, E1TF-11001-BA, E1TF-11001-CA, E1TZ-11002-B, E1TZ-11002-C, E1TZ-11002-CRM, FORD ENGINEERING RM4U2J11A230AA, NEW HOLLAND 501697

                                    NO CORE EXCHANGE NEEDED

                                                          TWO YEARS WARRANTY
