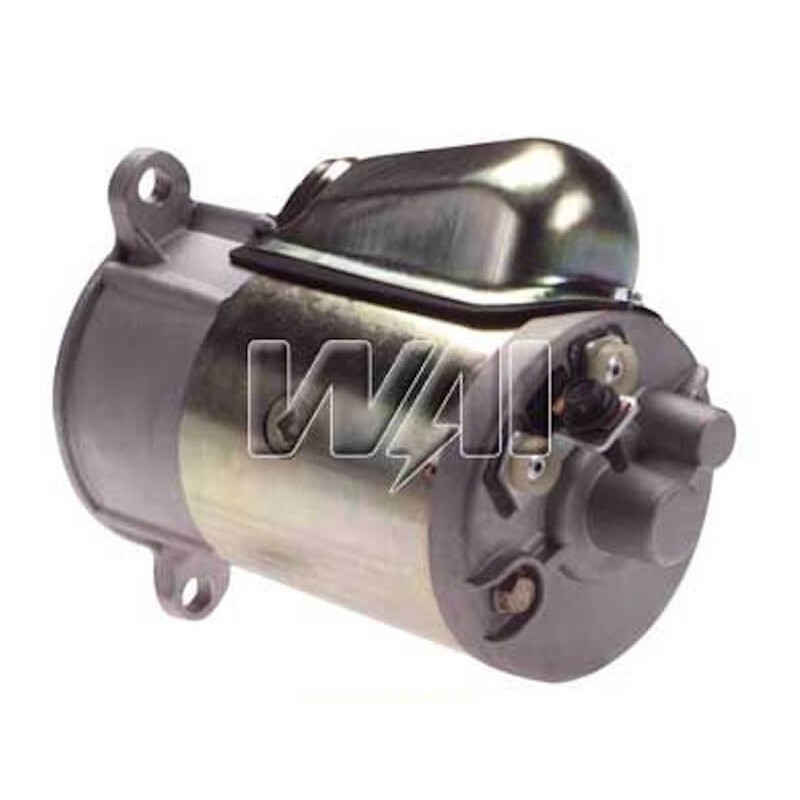

Starter replacing Ford E3TF-11001-AA / E3TZ-11002-A

Information:

Voltage 12

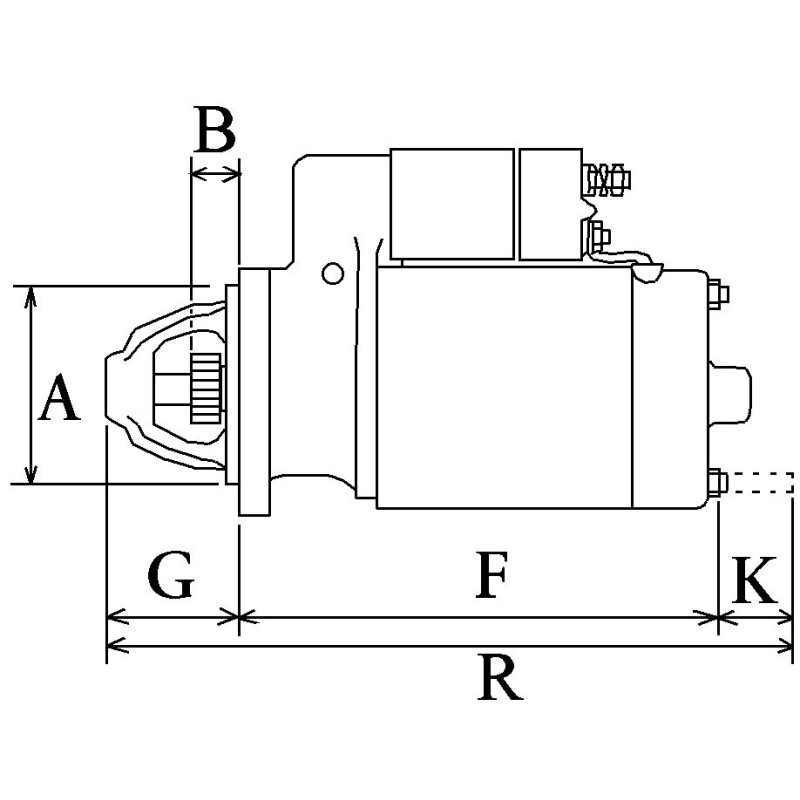

A = Mount flange 105.00

B = Drive distance 6.00

F = Distance / Back 241.75

G = Distance / Front 48.00

H = Nbr of teeth 9

B+ M6

Gear type Dd

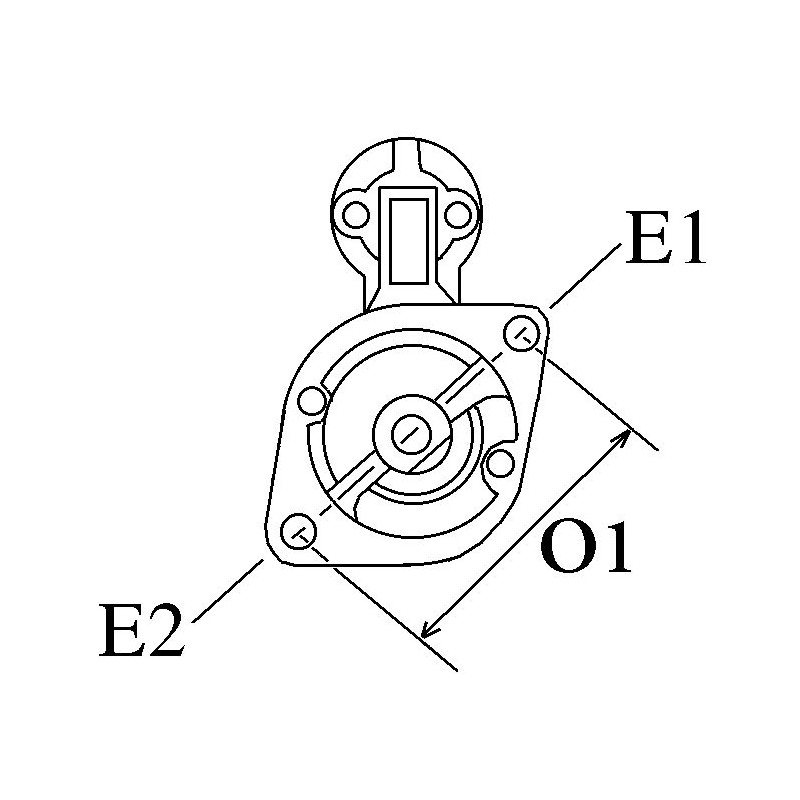

O = Distance mm 134.40

Rotation Cr

Nbr of mounting holes 2 (0)

Clutch Tipo Wet

Drive Tipo Steel

R = Total length mm 241.70

Specifications

    MFR:FORD
    Mfr Series:4 MOD II
    DESIGN:DD
    FEATURE 1:100% New
    FEATURE 2:Zinc plated field case
    FEATURE 3:OE performance torque & output curve
    KW:1.4
    NOTE 1:Will also replace early Ford 4-1/2 in. starter (Lester 3132)
    ROTATION:CW
    SPECS FOR:Ford 4 MOD II DD
    SPECS:1.4Kw/12 Volt, CW, 9-Tooth Pinion
    TEETH:9
    VOLTAGE:12
