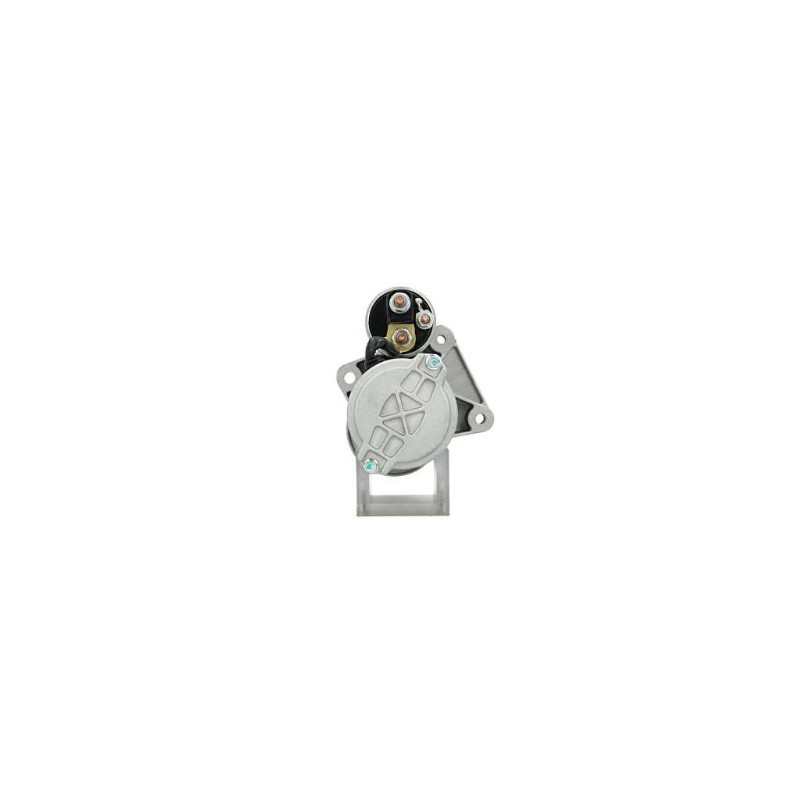

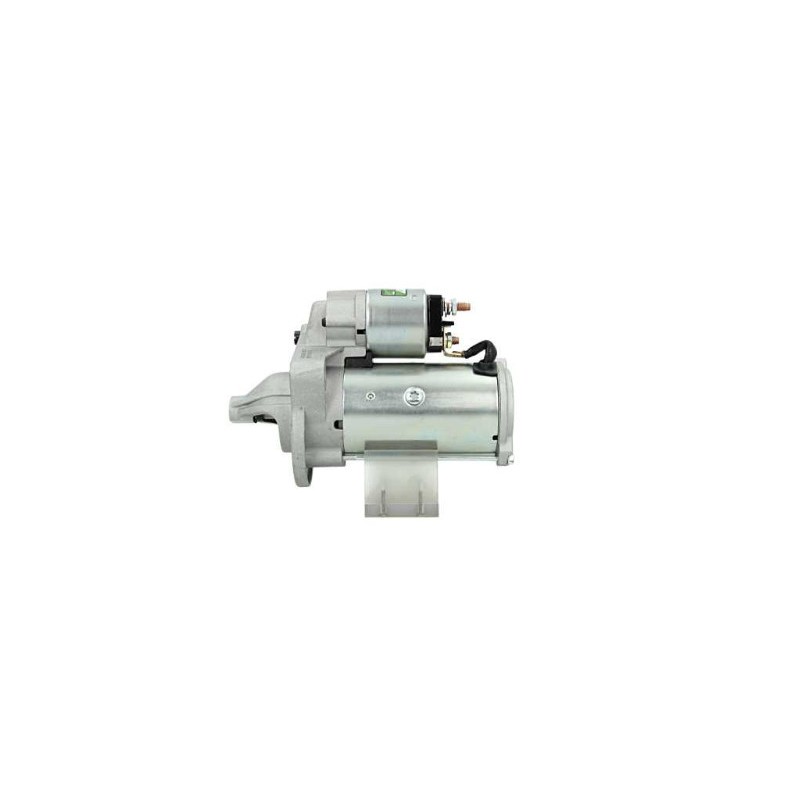

Starter replacing VALEO TS22E36 / TS22E37 / FORD 1687623 / 9M5T11000AA
Starter replacing VALEO TS22E36 / TS22E37 / 458398 / 458713
= FORD 1687623 / 9M5T11000AA / 9M5N11000AA
= VOLVO 30659478 / 36000947 / 36001519
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 2.3 | |

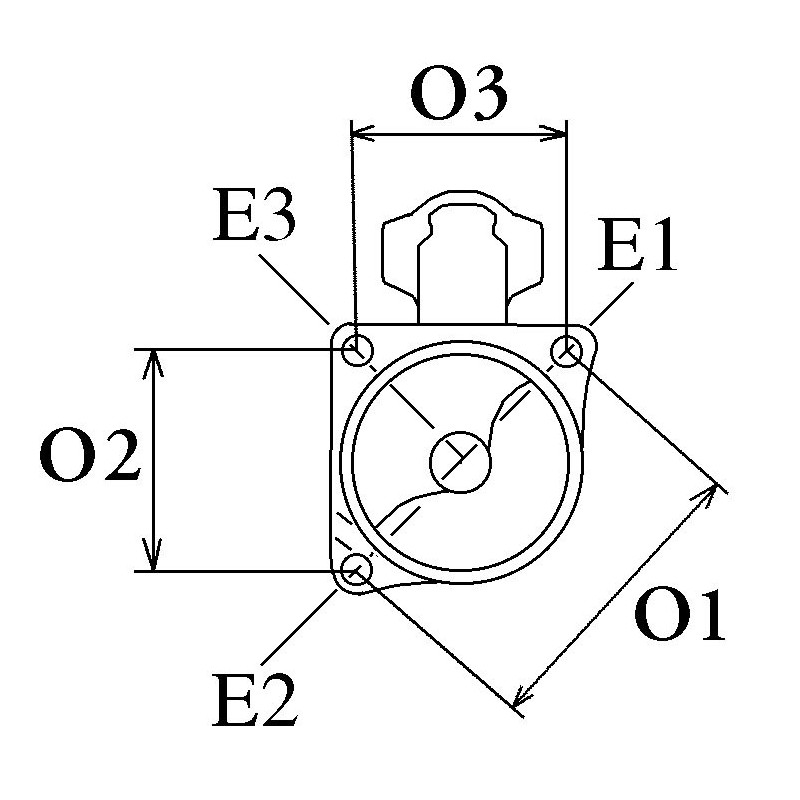

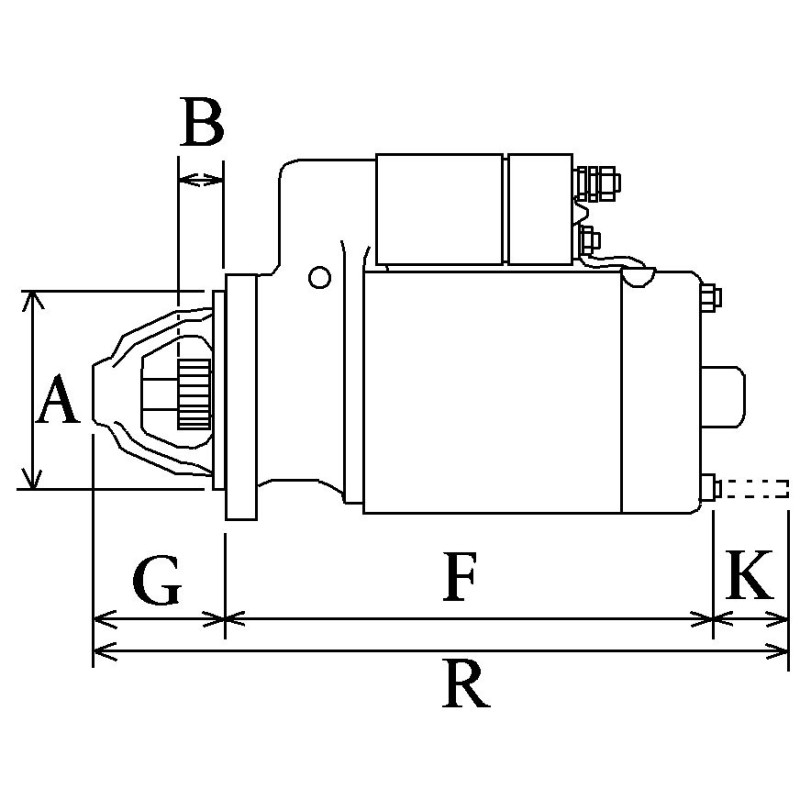

Physical Information | ||
|---|---|---|
| E | Mounting holes | 9.50 |
| E | Mounting holes 2 | M10 |
| E | Mounting holes 3 | M8 |
| B | Drive distance | 13.00 |
| F | Distance / Back | 164.40 |
| G | Distance / Front | 51.50 |
| H | Nbr of teeth | 11 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 116.20 |
| O | Distance 2 | 74.85 |
| O | Distance 3 | 84.15 |
| P | Rotation | Cr |
| R | Total length mm | 216.00 |
Replacing | |
|---|---|
| 1687623 | FORD |
| 30659478 | VOLVO |
| 36000947 | VOLVO |
| 36001519 | VOLVO |
| 9M5N11000AA | FORD |
| 9M5T11000AA | FORD |
| ts22e36 | VALEO |
| TS22E37 | VALEO |
| 199750 |
| 30659478 |
| 31296302 |
| 36001519 |
| 438230 |
| 458398 |
| 458713 |
| 6906194 |
| 6906214 |
| 810535113 |
| 810535113000 |
| 810535113500 |
| 810535113500001 |
| 810535113500002 |
| 810535113501 |
| 810535113505 |
| 910664 |
| 9M5N11000AA |
| 9m5t11000aa |
| AV6N11000GA |
| AV6N11000GD |
| DRS0664 |
| LRS02660 |
| TS22E36 |
| TS22E36+ |
| TS22E36CO |
| TS22E36R |
| ts22e37 |
| TS22E37CO |
Mounted on
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C30 | C30 | 1.6 | Diesel | 2010 10 | - | D4162T | Diesel | 84 | 115 | Hayon | 1560 | 4 | |||
| S40 | S40 | 1.6 | Diesel | 2010 10 | - | D4162T | Diesel | 84 | 115 | D2 | 1560 | 4 | MS | ||
| S60 | S60 | 1.6 | Diesel | 2011 01 | - | D4162T | Diesel | 84 | 114 | 1560 | 4 | ||||
| S80 | S80 | 1.6 | Diesel | 2011 06 | - | D4162T | Diesel | 84 | 114 | DRIVe | 1560 | 4 | |||
| V40 | V40 | 1.6 | Diesel | 2012 03 | - | D4162T | Diesel | 84 | 114 | Hayon | 1560 | 4 | |||
| V50 | V50 | 1.6 | Diesel | 2005 03 | - | Diesel | 80 | 109 | Break | 1560 | 4 | MW | Med start / stop | ||
| V60 | V60 | 1.6 | Diesel | 2011 06 | - | D4162T | Diesel | 84 | 114 | Break | DRIVe | 1560 | 4 | ||
| V70 | V70 | 1.6 | Diesel | 2011 06 | - | D4162T | Diesel | 84 | 114 | Break | D5 AWD | 1560 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
