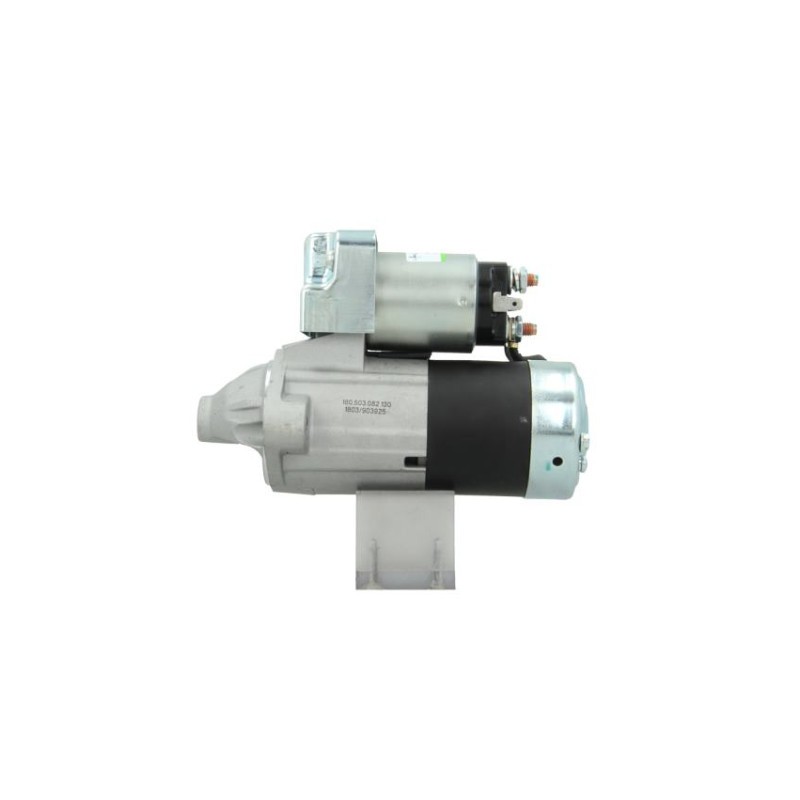

Starter replacing M0T85681 / M000T85681 / 31100-65DA0 / 31100-67D10 / 31100-77E10 / 31100-77E20
GM 30020753, MITSUBISHI M000T85681, M000T85681ZC, M000T85881, M001T76481, M001T79581, M001T86181, MITSUBISHI Sales M0T85681, M0T85681ZC, M0T85881, M1T76481, M1T79581, M1T86181, SUZUKI 31100-60A3, 31100-60A30, 31100-65DA0, 31100-67D10
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 1.4 | |
| H | Nbr of teeth | 8 |
| P | Rotation | Cr |
| N | Gear type | Gr |
| A | Mount flange | 66.00 |
| I | B+ | M8 |
| B | Drive distance | 4.50 |
| E | Mounting holes | M10-1.25 |
| E | Mounting holes 2 | M10-1.25 |
| F | Distance / Back | 163.50 |
| G | Distance / Front | 40.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 100.00 |
| R | Total length mm | 208.00 |
Replacing | |
|---|---|
| 31100-65DA0 | SUZUKI |
| 31100-67D10 | SUZUKI |
| 31100-67D20 | SUZUKI |
| 31100-77E10 | SUZUKI |
| 31100-77E11 | SUZUKI |
| 31100-77E20 | SUZUKI |
| 31100-77E22 | SUZUKI |
| 6840 | Fae |
| JS1153 | HC-PARTS |
| M000T85681 | MITSUBISHI |
| M000T85681ZC | MITSUBISHI |
| M000T85881 | MITSUBISHI |
| M001T76481 | MITSUBISHI |
| M001T79581 | MITSUBISHI |
| M001T86181 | MITSUBISHI |
| M0T85681 | MITSUBISHI |
| M0T85681ZC | MITSUBISHI |
| M0T85881 | MITSUBISHI |
| M1T76481 | MITSUBISHI |
| M1T79581 | MITSUBISHI |
| M1T86181 | MITSUBISHI |
generic brand
replacing
| 0986020501 | BOSCH |
| 11040626 | EuroTec |
| 112300 | Cargo |
| 113585 | Cargo |
| 12003 | EAI |
| 17783 | Lester |
| 17783N | WAI |
| 17783R | WAI |
| 180503082 | PSH |
| 19020024 | DELCO REMY |
| 252150 | Elstock |
| 3110065DA0 | SUZUKI |
| 3110065DB0000 | SUZUKI |
| 3110067D10 | SUZUKI |
| 3110067D20 | SUZUKI |
| 3110077E10 | SUZUKI |
| 3110077E11 | SUZUKI |
| 3110077E20 | SUZUKI |
| 3110077E22 | SUZUKI |
| 458577 | VALEO |
| 4622SP | Spidan |
| 8052814F | Friesen |
| 91273254 | WILSON |
| 91273255 | WILSON |
| A75710 | ATL |
| AZS260 | ATK |
| DRS3885 | DELCO REMY |
| F042001100 | BOSCH |
| F042S01100 | BOSCH |
| HJS1153 | HC |
| ISJ0024 | MAHLE |
| J5218014 | Nipparts |
| JS1153 | HC |
| KTR361006164 | KTR |
| LRS01341 | LUCAS |
| M000T85681 | MITSUBISHI |
| M001T49581 | MITSUBISHI |
| M001T76481 | MITSUBISHI |
| M001T79581 | MITSUBISHI |
| M001T86181 | MITSUBISHI |
| M0T85681 | MITSUBISHI |
| M1T49581 | MITSUBISHI |
| M1T76481 | MITSUBISHI |
| M1T79581 | MITSUBISHI |
| M1T86181 | MITSUBISHI |
| STM686 | Rolling Components |
| STR3514 | UNIPOINT |
| STR5141sa | Electrolog |
| TRS108 | TWA |
Mounted on :
SUZUKI EU
| Model | Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | Remark | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grand Vitara | Grand Vitara | 2.0 | Unleaded | 2005 10 | - | J20A | 103 | 140 | 1995 | 4 | Automatic Transmission | |||||
| Grand Vitara | Grand Vitara | 2.7 | Unleaded | 2001 09 | 2003 07 | H27A | V6 | 127 | 173 | 2736 | 6 | |||||
| Grand Vitara | Grand Vitara | 2.5 | Unleaded | 2001 04 | 2003 07 | H25A | V6 24V | 116 | 158 | 2493 | 6 | FT, GT | ||||
| Grand Vitara | Grand Vitara | 2.7 | Unleaded | 2003 04 | 2003 07 | H27A | 135 | 184 | XL-7 | 2736 | 6 | FT, GT | ||||
| Grand Vitara | Grand Vitara | 2.0 | Unleaded | 1998 04 | 2005 08 | J20A | 103 | 140 | 4x4 | 1995 | 4 | FT, GT | ||||
| Vitara | Vitara | 2.5 | Unleaded | 1998 04 | 2003 07 | H25A | V6 24V | 106 | 144 | 2493 | 6 | |||||
| Vitara | Vitara | 2.5 | Unleaded | 1995 12 | 1998 03 | H25A | i 24V | 118 | 160 | 2493 | 6 | ET | ||||
| Vitara | Vitara | 2.0 | Unleaded | 1994 12 | 1998 03 | H20A | i | 100 | 136 | Lang | 1998 | 6 |
