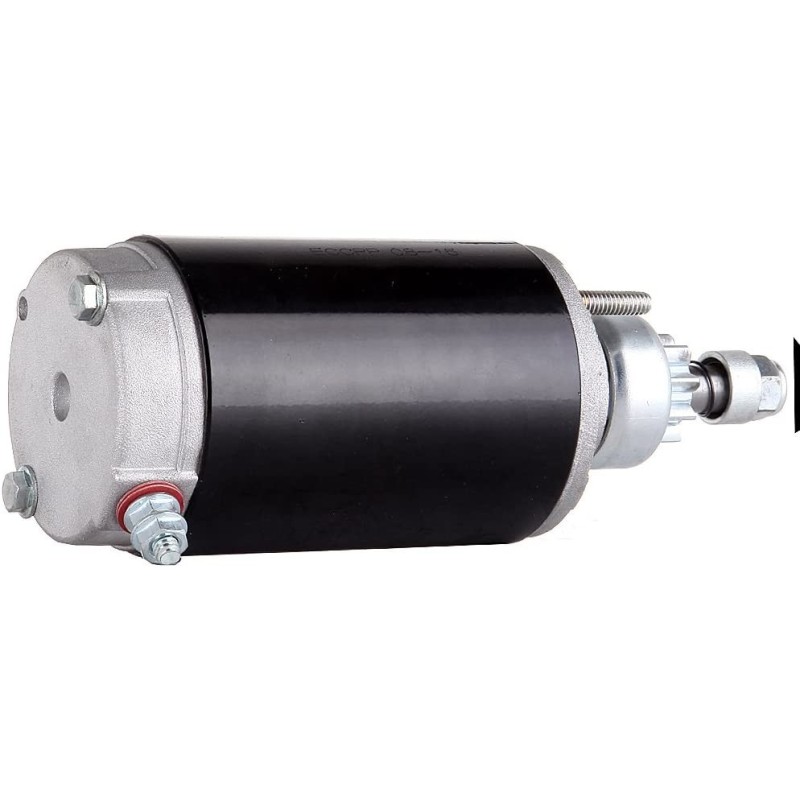

Starter for Bobcat (1983-1985) ** Cub Cadet (1980-1993) ** Toro (1989-1989)
Gravely 032546, Kohler 52-098-03, 52-098-09, 52-098-12, Reference 5213140, 5666240, United Technologies 1770540, 1819040, 1819040-M030SM, 1819040MO30SM, 5213140-M030SM, 5213140MO30SM, 5666240-M030SM, 5666240MO30SM
Information:
Voltage 12
KW 0.6

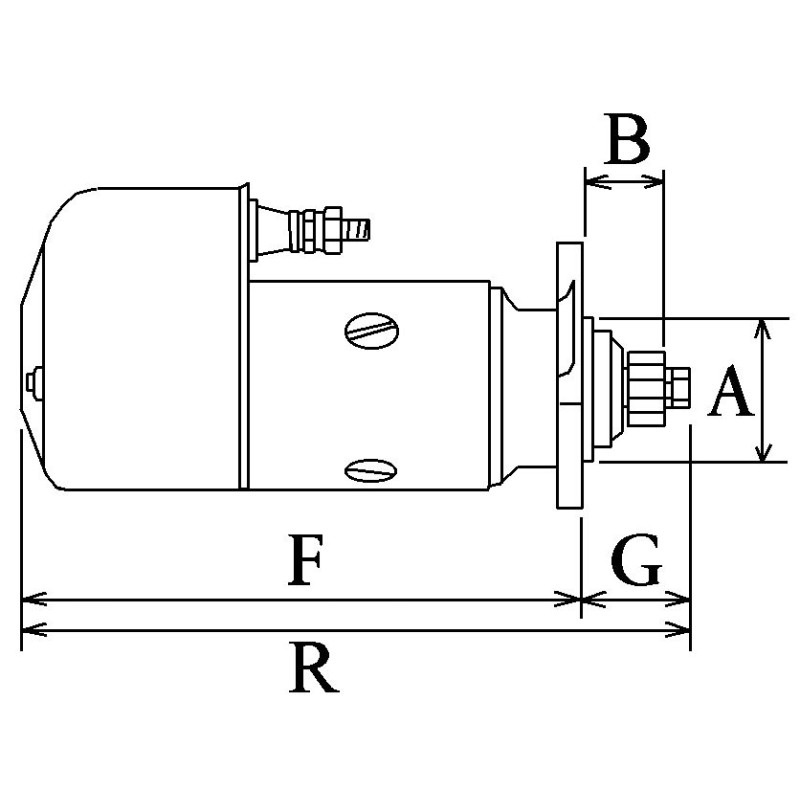

A = Mount flange 63.40
B = Drive distance 45.80
F = Distance / Back 135.25
G = Distance / Front 80.50
H = Nbr of teeth 9
B+ M6
Gear type Dd
Rotation COUNTER CLOCKWISE
Nbr of mounting holes 0 (0)
Drive Tipo Bronze
R = Total length mm 215.25
generic brand
replacing
Gravely 032546, Kohler 52-098-03, 52-098-09, 52-098-12, Reference 5213140, 5666240, United Technologies 1770540, 1819040, 1819040-M030SM, 1819040MO30SM, 5213140-M030SM, 5213140MO30SM, 5666240-M030SM, 5666240MO30SM
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
Original and adaptable
No return of the old
Amex,CB,Visa,MasterCard in 3D Secure and PayPal
France and International
