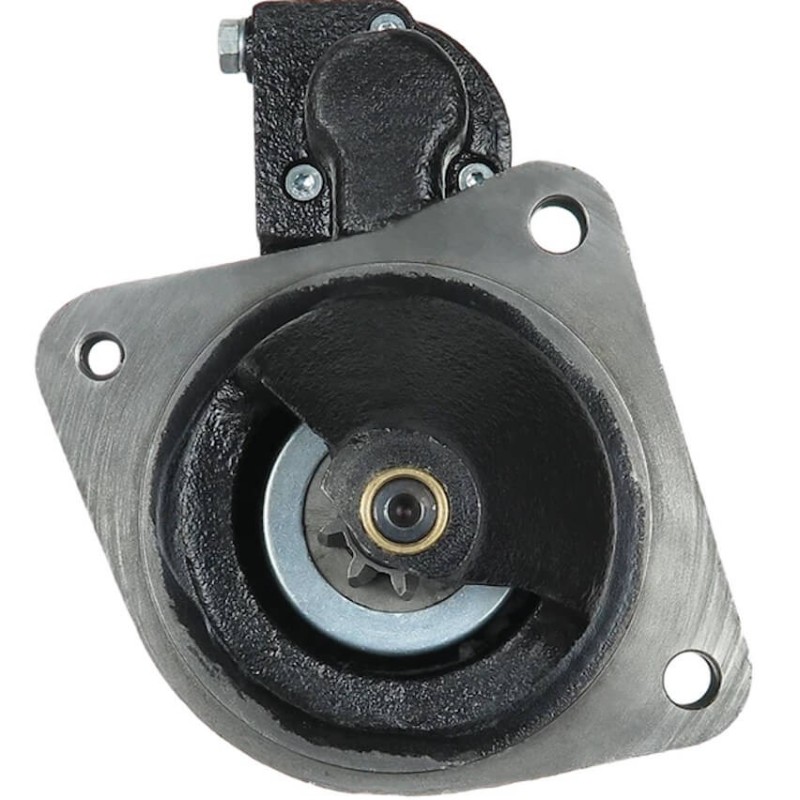

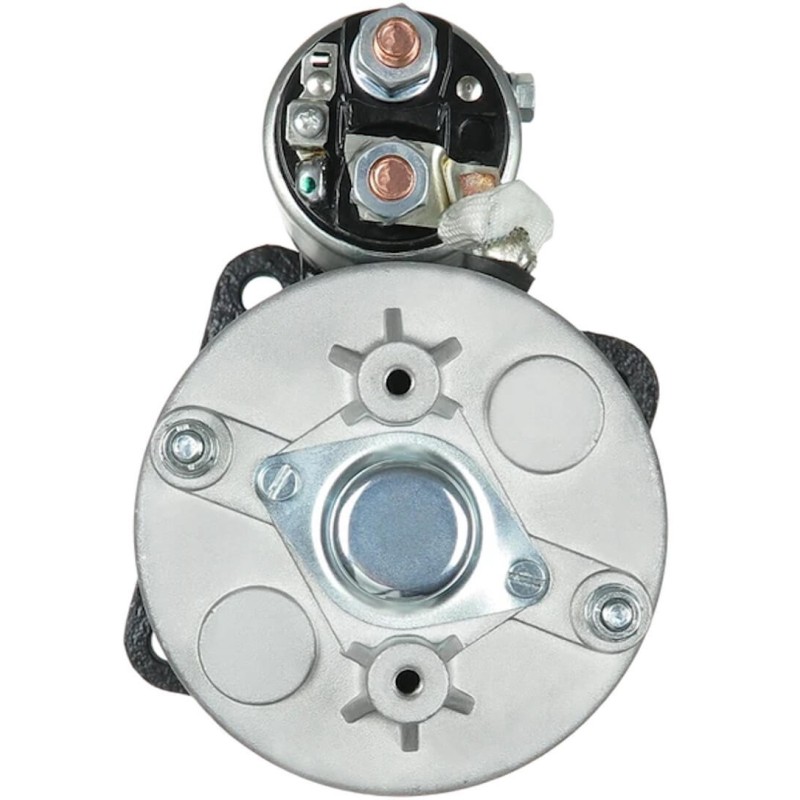

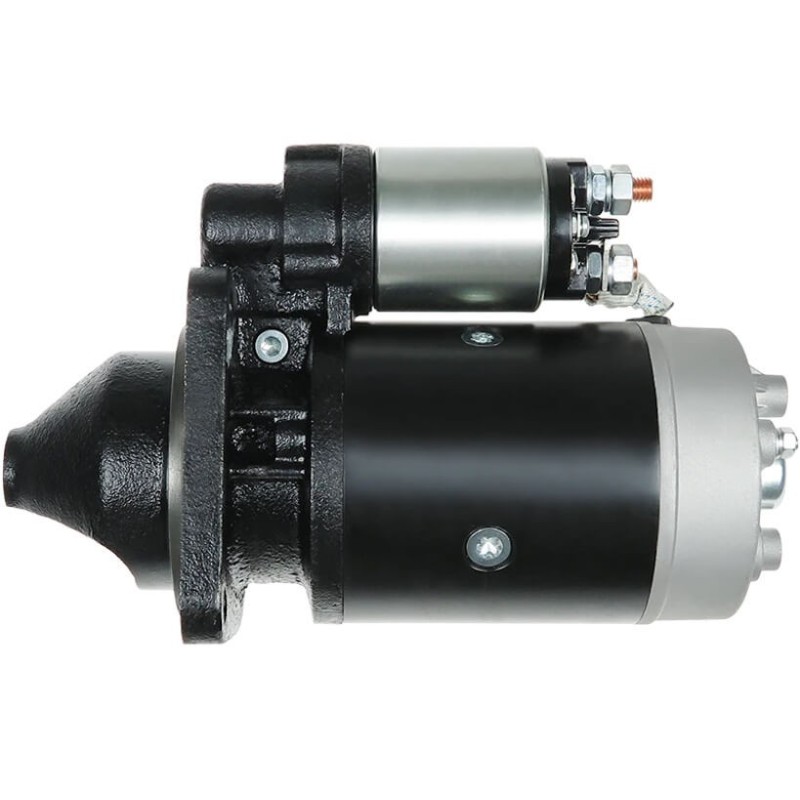

Starter
= BOSCH 0001362062 / 0001362031 / 0001362102 / 0986011060 / 0986011061 / 0986019320
= ISKRA AZJ3137 / AZJ3156
= FIAT 42498138 / 42498149 / 42498505 / 42498506 / 4711699
non-threaded hole
NO CORE EXCHANGE NEEDED
Information:
Voltage 12
KW 2.4
A =Mount flange 110.00
B =Drive distance 26.80
F =Distance / Back 222.50
G =Distance / Front 74.00
Nbr of teeth 9
B+ M10
Gear type Dd
O1 =Distance 103.00
O2 =Distance 2 146.00
O3 =Distance 3 103.00
Rotation Cr
Nbr of mounting holes 3 (0)
Drive Tipo Steel
R =Total length mm 296.50
generic brand
= Reference :
| 0001362031 |
| 0001362062 |
| 0001362102 |
| 004719664 |
| 0986011060 |
| 0986011061 |
| 0986019320 |
| 11130123 |
| 11130500 |
| 11130532 |
| 120124 |
| 14660 |
| 14860 |
| 1569SP |
| 182170 |
| 182331 |
| 18461 |
| 18461N |
| 19024254 |
| 20404077 |
| 250340 |
| 251472 |
| 27401 |
| 30036 |
| 4089SP |
| 42498138 |
| 42498149 |
| 42498505 |
| 42498506 |
| 436037 |
| 4711699 |
| 4719664 |
| 4745930 |
| 4807374 |
| 4856055 |
| 4856056 |
| 500011093 |
| 63217104 |
| 63217147 |
| 63217148 |
| 63217410 |
| 77028560 |
| 8011060F |
| 8EA012526561 |
| 8EA726029001 |
| 8EA730205001 |
| 911063 |
| 943217147 |
| AZJ3137 |
| AZJ3156 |
| AZJ3514 |
| CS230 |
| CS689 |
| DEM145 |
| DRS1060 |
| DRS1063 |
| HCS230 |
| HCS689 |
| IS0123 |
| IS0500 |
| IS0532 |
| KTR1000022186 |
| LRS00838 |
| LRS838 |
| LRT00136 |
| MS187 |
| MSN229 |
| MSN242 |
| MT71D |
| MT71DA |
| MT71DB |
| MT74L |
| S23061 |
| STR1335sa |
| STR7927sa |
| STR9069sa |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
Original and adaptable
No return of the old
Amex,CB,Visa,MasterCard in 3D Secure and PayPal
France and International
