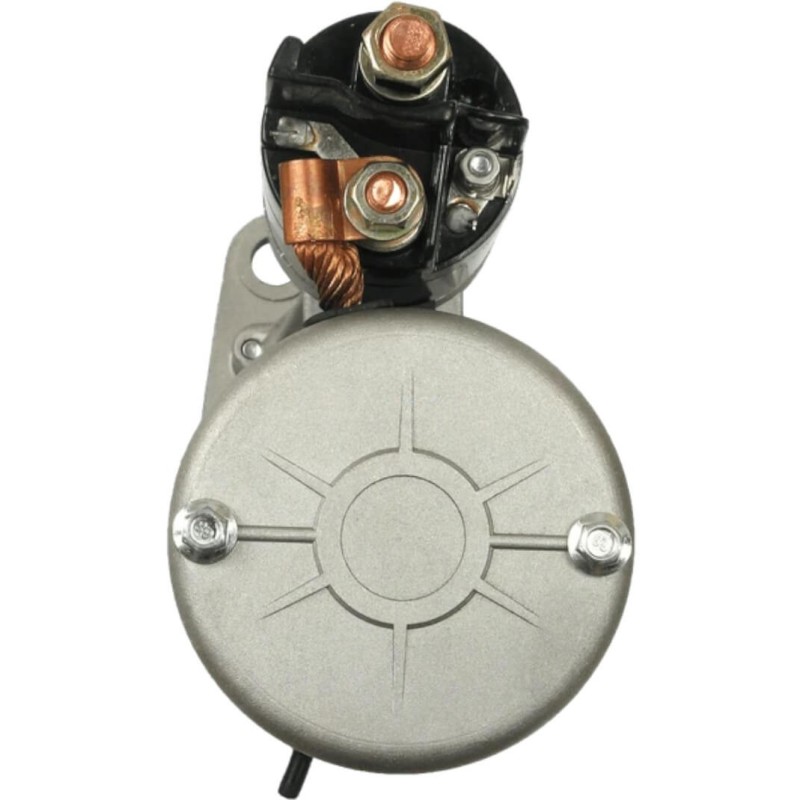

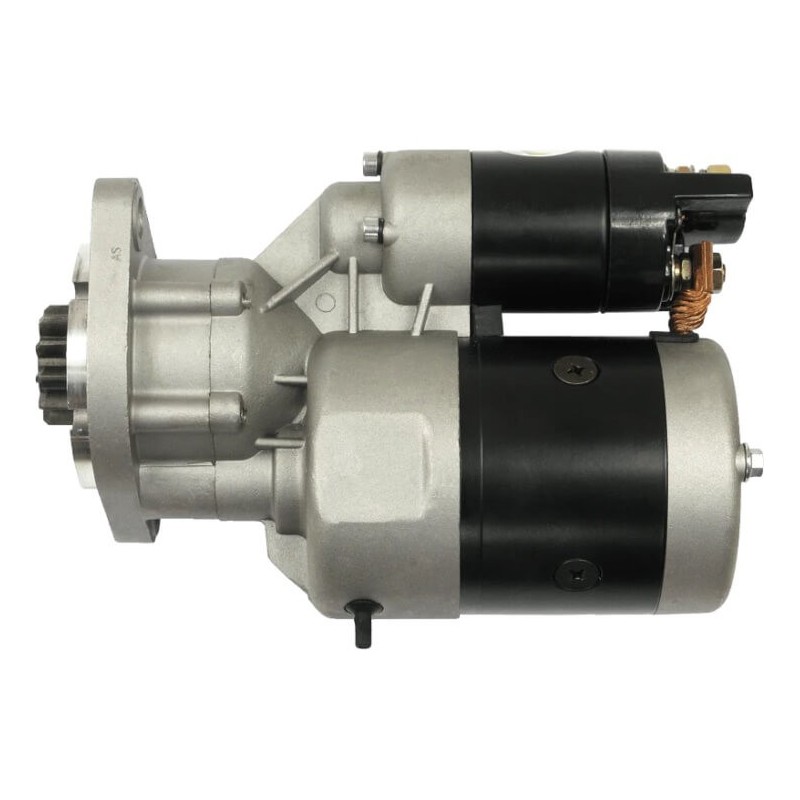

Starter replacing :
BOSCH 0001354010 / 0001354014 / 0001354033 / 0001354090 / 0001362022 / 0001362035
CLAAS 6853800 / DELCO DRS3325 / ISKRA MAHLE IS0521
NO CORE EXCHANGE NEEDED
reduction type
Information :
Adjustment (mm) 81.9
B+ M10
tooth 11
kW 2.7
Fixing points 2
Rotation CW
Volt 12
used on :
| Huerlimann | 535clab | 3.0 / 1000.3 W/ WT | 06/86 | 06/86 |
| LAMBORGHINI | C | / | 08/76 | |
| LAMBORGHINI | R235/235Dt | 3.0 / 1000.3W | 02/88 | / |
| LAMBORGHINI | R574.60 | 3.0 / 1000.3W | 02/88 | / |
| Same | Corsaro 70 | 02/72 | 06/76 | |
| Same | Delfino 35 | 1.8 / 982L | 01/72 | 08/85 |
| Same | Explorer 260 | / | / | |
| Same | Explorer 60 | / | / | |
| Same | Falcon | 2.7 / 983L | 01/74 | 06/75 |
| Same | Minitauro60 | 3.1 / 105.3L | 01/72 | 12/73 |
| Same | Saturno80 | 4.2 / 1054P | 03/72 | 01/79 |
| Same | Sirenetta | 982L | 01/72 | 10/81 |
| STEYR | 40 | WD405 | / | / |
generic brand
replacing :
| 0001354010 | BOSCH |
| 0001354014 | BOSCH |
| 0001354033 | BOSCH |
| 0001354090 | BOSCH |
| 0001362022 | BOSCH |
| 0001362035 | BOSCH |
| 11130521 | MAHLE |
| 120556 | PIC |
| 17114 | Lester |
| 17114N | WAI |
| 182178 | Lester |
| 251443 | Elstock |
| 251444 | Elstock |
| 296190800 | Same |
| 2961928 | VALEO |
| 296193600 | Same |
| 296193700 | Same |
| 33371 | EAI |
| 610002112 | PSH |
| 63217163 | MAGNETI MARELLI |
| 6853800 | CLAAS |
| 91156996 | WILSON |
| 91157059 | WILSON |
| 9142602 | MAGNETON |
| A76520 | ATL |
| A77350 | ATL |
| AZJ3149 | MAHLE |
| AZJ3503 | MAHLE |
| CS996 | HC |
| DEM135 | ADI |
| DRS3325 | DELCO REMY |
| IS0521 | MAHLE |
| LRS00933 | LUCAS |
| LRS01620 | LUCAS |
| LRS02050 | LUCAS |
| MS300 | MAHLE |
| MT71FA | MAGNETI MARELLI |
| MT71FB | MAGNETI MARELLI |
Acheteur Vérifié
Second exchange of this starter following a flood, but just like the first, it has to be adapted/reversed to the assembly ..... doesn't quite fit, but it works! (Translated review)
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
