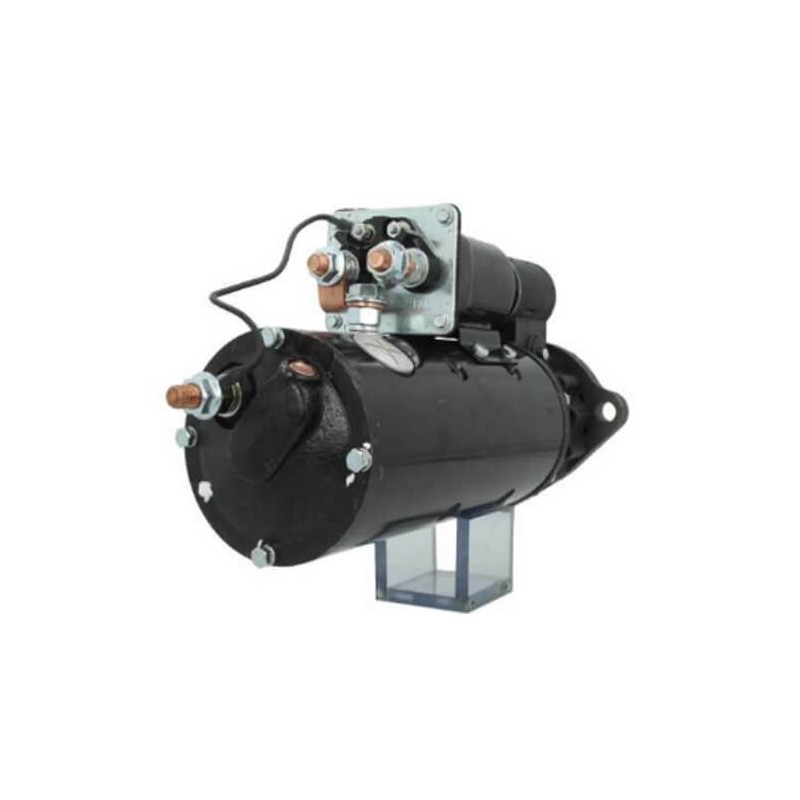

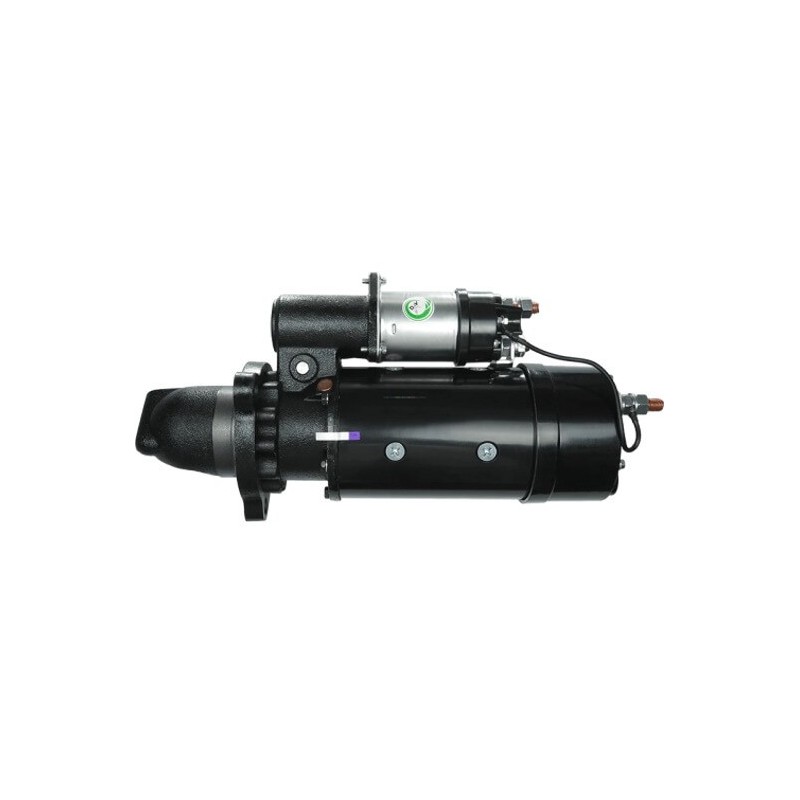

Démarreur remplace 3604233RX / 0R2186 / 10461031 / M105R3503SE
pour Caterpillar / Cummins / IH / Fiat Allis / Volvo Truck
remplace Delco remy
| 1113811 |
| 1113817 |
| 1113827 |
| 1113840 |
| 1113853 |
| 1113901 |
| 1113904 |
| 1113910 |
| 1113919 |
| 1113923 |
| 1113925 |
| 1113928 |
| 1113930 |
| 1113934 |
| 1113942 |
| 1113943 |
| 1113949 |
| 1113950 |
| 1113951 |

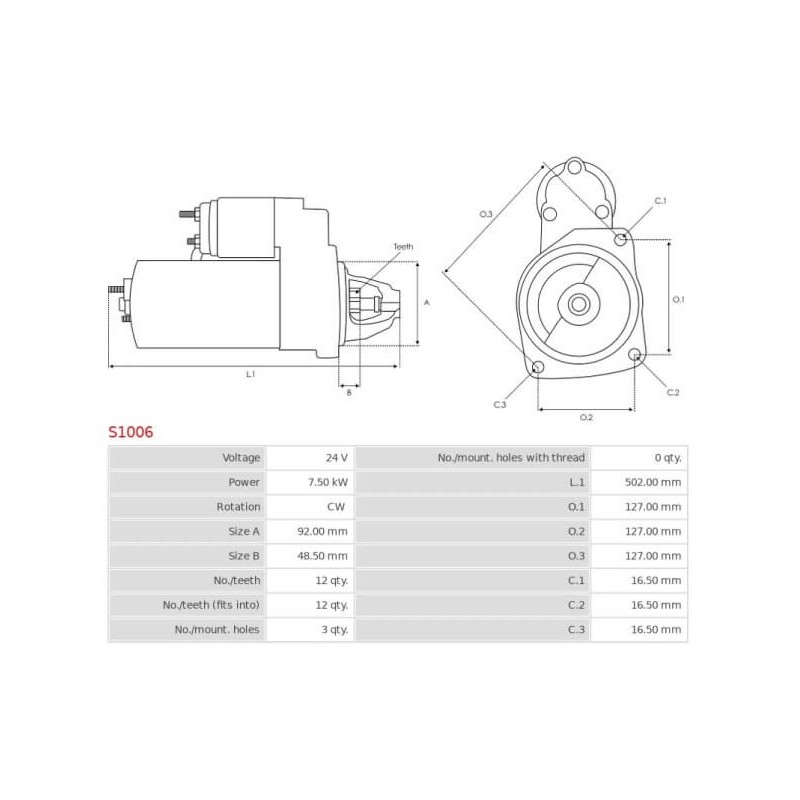

Caractéristiques
| Tension [ V ] | 24 |
| Puissance [ kW ] | 7.50 |
| Rotation du demarreur | CW |
| Taille A [ mm ] | 92.00 |
| Taille B [ mm ] | 48.50 |
| Nombre de dents [ qty. ] | 12 |
| Nombre de dents (s'insère dans) [ qty. ] | 12 |
| Nombre d'ouvertures dans la tete [ qty. ] | 3 |
| Nombre de trous filetes [ qty. ] | 0 |
| L.1 [ mm ] | 502.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 16.50 |
| C.2 [ mm ] | 16.50 |
| C.3 [ mm ] | 16.50 |
marque générique
remplace
| 0001420001 | BOSCH | 3011895 | CUMMINS |
| 0001420003 | BOSCH | 301581RI | KUHNER |
| 0001420004 | BOSCH | 301581RID | KUHNER |
| 0001420005 | BOSCH | 33515 | EAI |
| 0001420009 | BOSCH | 3604233RX | CUMMINS |
| 0001420013 | BOSCH | 3604484RX | CUMMINS |
| 0R2186 | CATERPILLAR | 3604784RX | CUMMINS |
| 0R4256 | CATERPILLAR | 3675120RX | CUMMINS |
| 0R4257 | CATERPILLAR | 3902661 | CUMMINS |
| 0R5207 | CATERPILLAR | 3907821 | CUMMINS |
| 0R5270 | CATERPILLAR | 3910646 | CUMMINS |
| 10461025 | DELCO | 3938502 | CUMMINS |
| 10461031 | DELCO | 3948N | WAI / TRANSPO |
| 10461107 | DELCO | 3P0006 | CATERPILLAR |
| 10461136 | DELCO | 3P0007 | CATERPILLAR |
| 10461345 | DELCO | 3P0110 | CATERPILLAR |
| 10461357 | DELCO | 3P3006 | CATERPILLAR |
| 10461358 | DELCO | 3P3007 | CATERPILLAR |
| 10461533 | DELCO | 3R7356 | CATERPILLAR |
| 10478864 | DELCO | 3T2579 | CATERPILLAR |
| 10478939 | DELCO | 3T2647 | CATERPILLAR |
| 10478942 | DELCO | 3T2652 | CATERPILLAR |
| 10478995 | DELCO | 3T2660 | CATERPILLAR |
| 10479115 | DELCO | 3T2772 | CATERPILLAR |
| 10479118 | DELCO | 3T4581 | CATERPILLAR |
| 10479120 | DELCO | 3T4582 | CATERPILLAR |
| 10479136 | DELCO | 3T4584 | CATERPILLAR |
| 10479178 | DELCO | 3T4586 | CATERPILLAR |
| 10479225 | DELCO | 3T6305 | CATERPILLAR |
| 10479245 | DELCO | 3Y8852 | CATERPILLAR |
| 10479264 | DELCO | 45-1267 | ELSTOCK |
| 106-8552 | CATERPILLAR | 4816170 | FIAT |
| 10797 | KUHNER | 4N3181 | CATERPILLAR |
| 10R0399 | CATERPILLAR | 4N3182 | CATERPILLAR |
| 110302 | CARGO | 4N3347 | CATERPILLAR |
| 1109298 | DELCO | 4N3348 | CATERPILLAR |
| 1109831 | DELCO | 4N3350 | CATERPILLAR |
| 110999 | CARGO | 4N7901 | CATERPILLAR |
| 1113811 | DELCO | 50-152-1 | WAI / TRANSPO |
| 1113817 | DELCO | 5A6494 | CATERPILLAR |
| 1113827 | DELCO | 5A6495 | CATERPILLAR |
| 1113840 | DELCO | 5A6522 | CATERPILLAR |
| 1113853 | DELCO | 5R3155 | CATERPILLAR |
| 1113901 | DELCO | 5R3857 | CATERPILLAR |
| 1113904 | DELCO | 6060601 | SANDO |
| 1113910 | DELCO | 60823 | KUHNER |
| 1113919 | DELCO | 60823P | KUHNER |
| 1113923 | DELCO | 60823W | KUHNER |
| 1113925 | DELCO | 60827 | KUHNER |
| 1113928 | DELCO | 60827M | KUHNER |
| 1113930 | DELCO | 60827P | KUHNER |
| 1113934 | DELCO | 60863 | KUHNER |
| 1113942 | DELCO | 60863D | KUHNER |
| 1113943 | DELCO | 6360N | WAI / TRANSPO |
| 1113949 | DELCO | 6363N | WAI / TRANSPO |
| 1113950 | DELCO | 6823N | WAI / TRANSPO |
| 1113951 | DELCO | 6N1889 | CATERPILLAR |
| 1113959 | DELCO | 6V5207 | CATERPILLAR |
| 1113960 | DELCO | 6V5537 | CATERPILLAR |
| 1113962 | DELCO | 7T0798 | CATERPILLAR |
| 1113967 | DELCO | 7T0799 | CATERPILLAR |
| 1113969 | DELCO | 7T1082 | CATERPILLAR |
| 1113982 | DELCO | 7T1799 | CATERPILLAR |
| 1113990 | DELCO | 8824 | CEVAM |
| 1113991 | DELCO | 8C3597 | CATERPILLAR |
| 1113992 | DELCO | 8C3647 | CATERPILLAR |
| 1113993 | DELCO | 8C3650 | CATERPILLAR |
| 1113998 | DELCO | 8C3651 | CATERPILLAR |
| 1114706 | DELCO | 8EA730303-001 | HELLA |
| 1114711 | DELCO | 8EA732855-001 | HELLA |
| 1114712 | DELCO | 8N2145 | CATERPILLAR |
| 1114729 | DELCO | 9G4337 | CATERPILLAR |
| 1114735 | DELCO | 9G4339 | CATERPILLAR |
| 1114740 | DELCO | 9G5584 | CATERPILLAR |
| 1114742 | DELCO | 9M1662 | CATERPILLAR |
| 1114759 | DELCO | A187568 | CASE |
| 1114767 | DELCO | ALT136080 | SIOM |
| 1114777 | DELCO | ALT4850 | SIOM |
| 1114793 | DELCO | CGB-1083 | AINDE |
| 1114805 | DELCO | CGB-1139 | AINDE |
| 1114843 | DELCO | CGB-1252 | AINDE |
| 1114845 | DELCO | CGB-13479 | AINDE |
| 1114856 | DELCO | CGB-1502 | AINDE |
| 1114859 | DELCO | CGB-1503 | AINDE |
| 1114860 | DELCO | CST60601 | CASCO |
| 1114862 | DELCO | CST60601AS | CASCO |
| 1114872 | DELCO | CST60601ES | CASCO |
| 1114905 | DELCO | CST60601GS | CASCO |
| 1114910 | DELCO | CST60601OS | CASCO |
| 1114914 | DELCO | CST60601RS | CASCO |
| 1114917 | DELCO | DRZ5115 | DELCO |
| 1114945 | DELCO | EAA-121363 | EAA |
| 1114949 | DELCO | EAA-121500 | EAA |
| 1114953 | DELCO | EAA-141394 | EAA |
| 1114968 | DELCO | F048972 | JOHN DEERE |
| 1114980 | DELCO | F6HT11001EA | FORD |
| 1114989 | DELCO | F6HZ11002EA | FORD |
| 114769A1 | CASE | L118276 | CASE |
| 128000-7510 | DENSO | LRS01854 | LUCAS |
| 128000-7520 | DENSO | LRS1854 | LUCAS |
| 1990204 | DELCO | M0017260ME | PRESTOLITE |
| 1990283 | DELCO | M0017280ME | PRESTOLITE |
| 1990297 | DELCO | M0017422ME | PRESTOLITE |
| 1990324 | DELCO | M007T03774 | MITSUBISHI |
| 1990343 | DELCO | M007T03777 | MITSUBISHI |
| 1990357 | DELCO | M105R3503SE | PRESTOLITE |
| 1990359 | DELCO | M105R3505SE | PRESTOLITE |
| 1990360 | DELCO | M125R3001SEP | PRESTOLITE |
| 1990364 | DELCO | M125R3003SEP | PRESTOLITE |
| 1990366 | DELCO | M128R3601SE | PRESTOLITE |
| 1990373 | DELCO | M128R3837SE | PRESTOLITE |
| 1990402 | DELCO | M128R3838SE | PRESTOLITE |
| 1990413 | DELCO | M7T03774 | MITSUBISHI |
| 1990414 | DELCO | M7T03777 | MITSUBISHI |
| 1990432 | DELCO | MAV626010 | SIOM |
| 1990433 | DELCO | MAV626040 | SIOM |
| 1990453 | DELCO | MAV626090 | SIOM |
| 1990455 | DELCO | MFY6201I | PRESTOLITE |
| 1990457 | DELCO | MFY6201K | PRESTOLITE |
| 1990474 | DELCO | MFY6401K | PRESTOLITE |
| 1990497 | DELCO | MFY6401L | PRESTOLITE |
| 1990809 | DELCO | MFY6601I | PRESTOLITE |
| 1993704 | DELCO | MFY6601K | PRESTOLITE |
| 1993796 | DELCO | MS1-330A | PRESTOLITE |
| 1993797 | DELCO | MS1-401A | PRESTOLITE |
| 1993804 | DELCO | MS1-410A | PRESTOLITE |
| 1993808 | DELCO | MS1-419A | PRESTOLITE |
| 1993809 | DELCO | MS1-453 | PRESTOLITE |
| 1993814 | DELCO | MS7-300A | PRESTOLITE |
| 1993815 | DELCO | MS7-403 | PRESTOLITE |
| 1993833 | DELCO | MS7-404 | PRESTOLITE |
| 1993929 | DELCO | MS7-406 | PRESTOLITE |
| 1993940 | DELCO | MS7-407 | PRESTOLITE |
| 1993944 | DELCO | MS7-408 | PRESTOLITE |
| 1993945 | DELCO | RE28782 | JOHN DEERE |
| 1993982 | DELCO | RE63094 | JOHN DEERE |
| 20409106BN | REAL | RE69591 | JOHN DEERE |
| 20409106OE | REAL | REM1990453 | WOODAUTO |
| 2071560 | CATERPILLAR | S1006 | AS-PL |
| 228000-0070 | DENSO | SE501454 | JOHN DEERE |
| 254484 | KUHNER | STR20012 | WOODAUTO |
| 254484D | KUHNER | STRF092 | 3EFFE |
| 254484P | KUHNER | STRF782 | 3EFFE |
| 255569D | KUHNER | STRJ646 | 3EFFE |
| 255569P | KUHNER | STRL262 | 3EFFE |
| 25900 | CATERPILLAR | STRS029 | 3EFFE |
| 2P2501 | CATERPILLAR | STRS208 | 3EFFE |
| 2S0900 | CATERPILLAR | UD02185S | AS-PL |
| 2S900 | CATERPILLAR | UD12392S | AS-PL |
| US823 | HC PARTS | ||
| US863 | HC PARTS | ||
| F042003074 | BOSCH | ||
| 3Y3066 | CATERPILLAR | ||
| 441728 | LOGISTIK | ||
| S24DR0089A2 | SIDAT | ||
| 339025 | LOGISTIK |
pour
| Marque | Modèle | Type | Année |
| CATERPILLAR | 3208 | 01.1975-01.1984 | |
| CATERPILLAR | 1694 | 01.1974-01.1979 | |
| CATERPILLAR | 916 Wheel Loader | 01/02/93 | |
| CATERPILLAR | 920 Wheel Loader | 01/02/93 | |
| CATERPILLAR | 922 B | 01/01/93 | |
| CATERPILLAR | 3306 | 01.1975-12.1984 | |
| FIAT-ALLIS | FA 150 8.1 Diesel | [8365.25.542] | 12.1986-03.1999 |
| FIAT-ALLIS | FD 14E 8.1 Diesel | [8365.25.541] | 12.1988-12.1992 |
| FIAT-ALLIS | FR 160 8.1 Diesel | [8365.25..] | 01/07/90 |
