Starter replacing 31200-ZJ1-004 / 31200-ZJ1A-0040 / 31200-ZJ4-003

Display all pictures

Starter replacing 31200-ZJ1-004 / 31200-ZJ1A-0040 / 31200-ZJ4-003

Reference: w5918n

Condition: New product

3 Item Items

Starter replacing :

HONDA 31200-ZJ1-004, 31200-ZJ1A-0040, 31200-ZJ4-003,2817-00113

UNITED TECHNOLOGIES 5680640-M030SM, 5680640MO30SM, SM56804

possible on : HONDA Honda GX610 / GX620 / GXV610 / GXV620 / GX630RH / EB11000A

BE SURE TO CHECK THE CORRESPONDENCE WITH THE REFERENCE NUMBER OF YOUR OLD STARTER BEFORE PURCHASE

NO CORE EXCHANGE NEEDED

More info

More info

Electrical information
Voltage		12
Kw		0.6

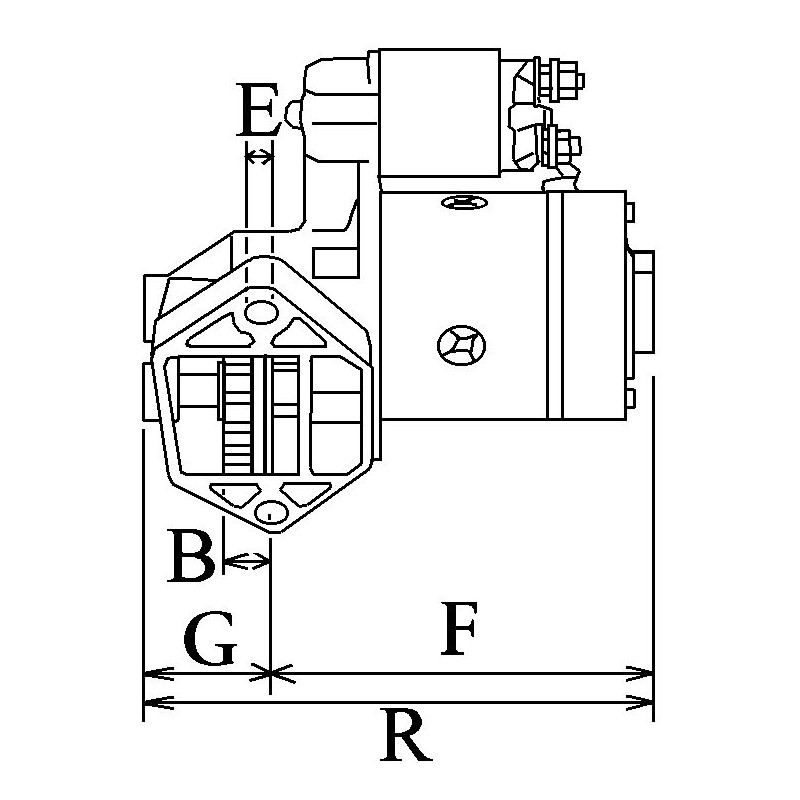

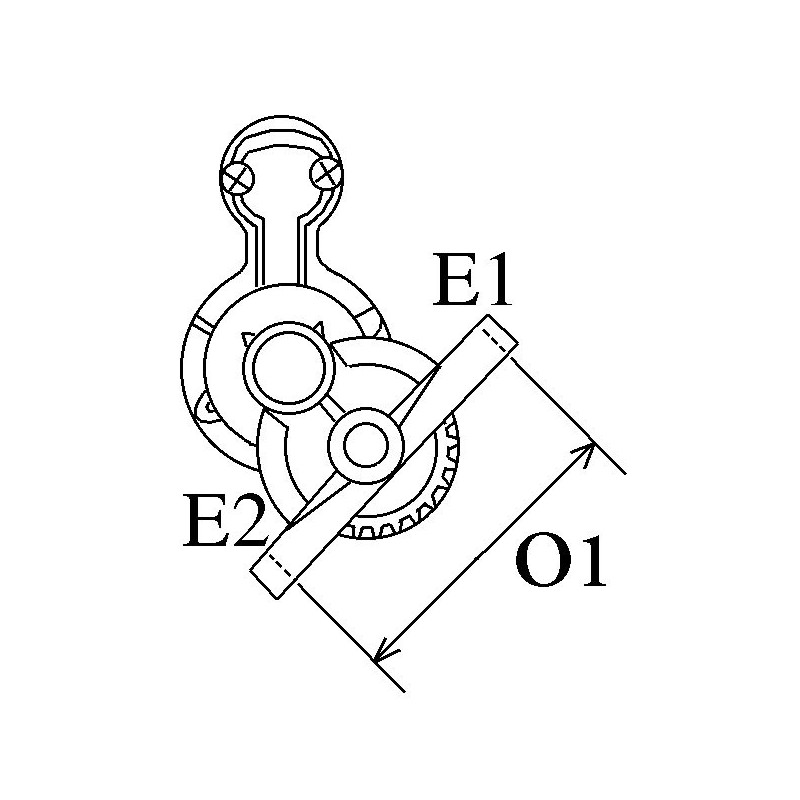

Physical Information
H	Nbr of teeth	10
P	Rotation	COUNTER CLOCKWISE
N	Gear type	Dd
I	B+	1/4" UNC
B	Drive distance	9.00
E	Mounting holes	8.90
E	Mounting holes 2	8.90
F	Distance / Back	142.00
G	Distance / Front	42.00
M	Mount. bracket	Non
O	Distance mm	66.00
R	Total length mm	188.00

generic brand

fits :

Ditch Witch (1995-2005) , HONDA (1995-2005) , Terramite (1991-2005)
