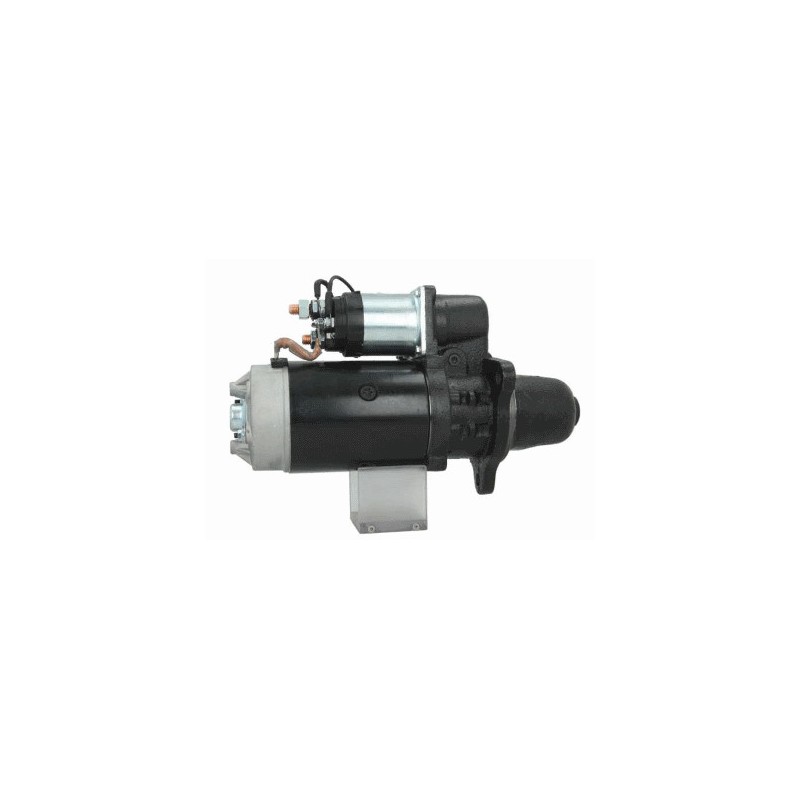

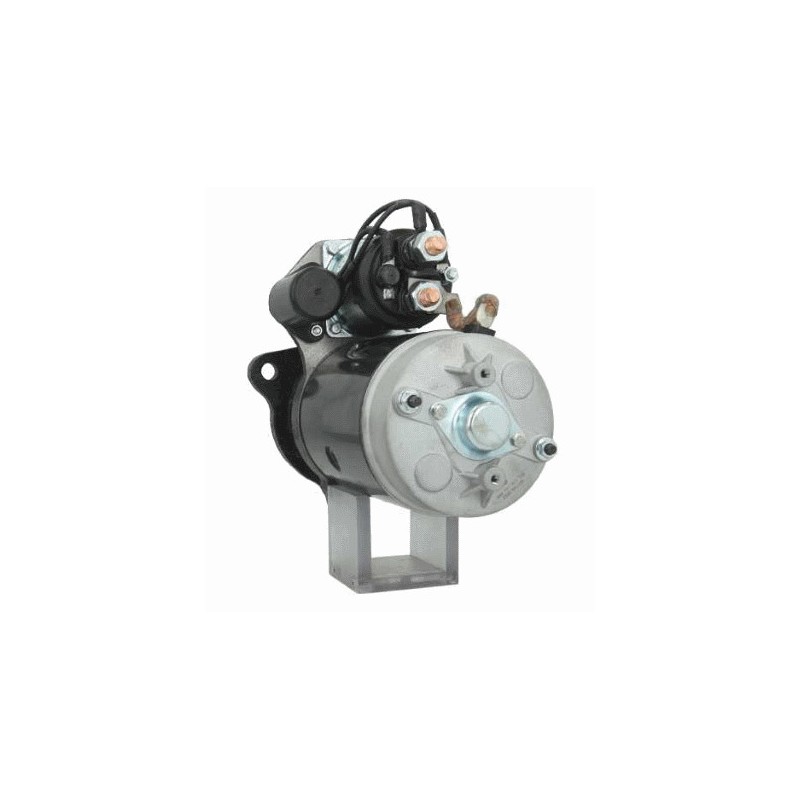

Starter replacing 0001372003 / 0001372008 / 0986021200
w112581
Starter for DAF replacing :
BOSCH 0001371010, 0001372002, 0001372007, F042002100
DAF 1317220, 1318615, 1357210, 1357211, 1528600
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Electrical information | ||
---|---|---|
Voltage | 24 | |
Kw | 6.2 |
Physical Information | ||
---|---|---|
H | Nbr of teeth | 11 |
P | Rotation | Cr |
N | Gear type | Dd |
A | Mount flange | 110.00 |
I | B+ | M12 |
B | Drive distance | 48.00 |
E | Mounting holes | 13.50 |
E | Mounting holes 2 | 13.50 |
E | Mounting holes 3 | 13.50 |
F | Distance / Back | 267.00 |
G | Distance / Front | 101.00 |
M | Mount. bracket | Non |
O | Distance mm | 126.50 |
O | Distance 2 | 126.50 |
O | Distance 3 | 126.50 |
R | Total length mm | 380.00 |
generic brand
replacing :
Replacing | |
---|---|
0001371010 | BOSCH |
0001371015 | BOSCH |
0001372002 | BOSCH |
0001372003 | BOSCH |
0001372007 | BOSCH |
0001372008 | BOSCH |
11.139.163 | ISKRA |
11.139.165 | ISKRA |
1284775 | DAF |
1317220 | DAF |
1318615 | DAF |
1357210 | DAF |
1357211 | DAF |
1357212 | DAF |
1528598 | DAF |
19070032 | DELCO REMY (DELCO) |
81392007 | Monark |
AZJ3448 | ISKRA |
AZJ3452 | ISKRA |
B001860021 | BOSCH |
B001860023 | BOSCH |
CS1274 | HC-PARTS |
0001372003 | BOSCH |
0001372008 | BOSCH |
0986021200 | BOSCH |
11018780 | EuroTec |
11021200 | EuroTec |
1284775 | |
1357212 | Daf |
19070032 | DELCO REMY |
30108N | WAI |
33937 | EAI |
453066 | VALEO |
458342 | VALEO |
4735 | Lester |
860819 | PRESTOLITE |
901020113 | PSH |
921200 | EDR |
CS1274 | HC |
CS1567 | HC |
DRT1200 | DELCO REMY |
F042S02101 | UNIPOINT |
LRS01938 | LUCAS |
STR2373 | UNIPOINT |
BOSCH 0 001 371 010, 0 001 372 002, 0 001 372 007, F 042 002 100
DAF 1317220, 1318615, 1357210, 1357211, 1528600
DELCO REMY 19070031
LETRIKA (ISKRA) 11.139.163, 11139163
PRESTOLITE 860816, M90R3543SE
Mounted on :
DAF (1997-2010)
DAF - Europe (1987-2013)
fitsDAF :
Model | Model série | litre | Tipo of Gas | Start build | End built | Tipo engine | KW | chevaux | châssis | cm3 | Cylindres |
75 | 75 CF.250 | 9.2 | Diesel | 1998 02 | 2000 12 | PF183M | 183 | 249 | Pick-up | 9200 | 6 |
75 | 75 CF.250 | 9.2 | Diesel | 1998 02 | 2000 12 | PF183M | 183 | 249 | Pick-up | 9200 | 6 |
75 | 75 CF.250 | 9.2 | Diesel | 1998 02 | 2000 12 | PF183M | 183 | 249 | Pick-up | 9200 | 6 |
75 | 75 CF.250 | 9.2 | Diesel | 1998 02 | 2000 12 | PF183M | 183 | 249 | Pick-up | 9200 | 6 |
75 | 75 CF.250 | 9.2 | Diesel | 1998 02 | 2000 12 | PF183M | 183 | 249 | Trailer | 9200 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Pick-up | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Pick-up | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Pick-up | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Pick-up | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Pick-up | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Pick-up | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Pick-up | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Trailer | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Trailer | 12580 | 6 |
85 | 85 CF.340 | 12.6 | Diesel | 1998 02 | 2000 12 | XF250M | 250 | 340 | Trailer | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Pick-up | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Pick-up | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Pick-up | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Pick-up | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Pick-up | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Pick-up | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Pick-up | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Trailer | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Trailer | 12580 | 6 |
85 | 85 CF.430 | 12.6 | Diesel | 1998 02 | 2000 12 | XF315M | 315 | 428 | Pick-up | 12580 | 6 |
85 | 85 CF.430 | 12.6 | Diesel | 1998 02 | 2000 12 | XF315M | 315 | 428 | Pick-up | 12580 | 6 |
85 | 85 CF.380 | 12.6 | Diesel | 1998 02 | 2000 12 | XF280M | 280 | 381 | Trailer | 12580 | 0 |
85 | 85 CF.430 | 12.6 | Diesel | 1998 02 | 2000 12 | XF315M | 315 | 428 | Pick-up | 12580 | 6 |
85 | 85 CF.430 | 12.6 | Diesel | 1998 02 | 2000 12 | XF315M | 315 | 428 | Pick-up | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XE315C | 315 | 428 | Trailer | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XF315M | 315 | 428 | Trailer | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XF315M | 315 | 428 | Trailer | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XE315C | 315 | 428 | Trailer | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XE315C | 315 | 428 | Trailer | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XF315M | 315 | 428 | Trailer | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XF315M | 315 | 428 | Trailer | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XE315C | 315 | 428 | Trailer | 12580 | 6 |
95 | 95 XF.430 | 12.6 | Diesel | 1997 01 | 2002 09 | XE315C | 315 | 428 | Trailer | 12580 | 6 |
CF | CF 85.430 | 12.6 | Diesel | 2005 12 | - | XE315C | 315 | 428 | Pick-up | 12580 | 6 |
CF | CF 85.480 | 12.6 | Diesel | 2005 12 | - | XE355C | 355 | 483 | Pick-up | 12580 | 6 |
CF | CF 85.340 | 12.6 | Diesel | 2001 01 | - | XE250C | 250 | 340 | Pick-up | 12580 | 6 |
CF | CF 85.340 | 12.6 | Diesel | 2001 01 | - | XE250C | 250 | 340 | Trailer | 12580 | 6 |
CF | CF 85.380 | 12.6 | Diesel | 2001 04 | - | XE280C | 279 | 380 | Pick-up | 12580 | 6 |
CF | CF 85.430 | 12.6 | Diesel | 2001 04 | - | XE315C | 315 | 430 | Pick-up | 12580 | 6 |
CF | CF 85.480 | 12.6 | Diesel | 2001 04 | - | XE355C | 351 | 477 | Pick-up | 12580 | 6 |
CF | CF 85.380 | 12.6 | Diesel | 2001 04 | - | XE280C | 280 | 380 | Trailer | 12580 | 6 |
LF | LF 55.160 | 4.5 | Diesel | 2006 05 | - | FR118S1 | 118 | 160 | Pick-up | 4500 | 4 |
XF | XF 95.530 | 12.6 | Diesel | 1997 01 | 2002 09 | XE390C | 390 | 530 | Pick-up | 12580 | 6 |
XF | XF 95.530 | 12.6 | Diesel | 1997 01 | 2002 09 | XE390C | 390 | 530 | Pick-up | 12580 | 6 |
XF | XF 95.530 | 12.6 | Diesel | 1997 01 | 2002 09 | XE390C | 390 | 530 | Pick-up | 12580 | 6 |
XF | XF 95.530 | 12.6 | Diesel | 1997 01 | 2002 09 | XE390C | 390 | 530 | Pick-up | 12580 | 6 |
XF | XF 95.530 | 12.6 | Diesel | 1997 01 | 2002 09 | XE390C | 390 | 530 | Trailer | 12580 | 6 |
XF | XF 95.530 | 12.6 | Diesel | 1997 01 | 2002 09 | XE390C | 390 | 530 | Trailer | 12580 | 6 |
XF | XF 95.480 | 12.6 | Diesel | 1997 01 | - | XE355C | 355 | 483 | Pick-up | 12580 | 6 |
XF | XF 95.380 | 12.6 | Diesel | 1997 01 | - | XF280M | 280 | 381 | Pick-up | 12580 | 6 |
XF | XF 95.380 | 12.6 | Diesel | 1997 01 | - | XE280C | 280 | 381 | Pick-up | 12580 | 6 |
