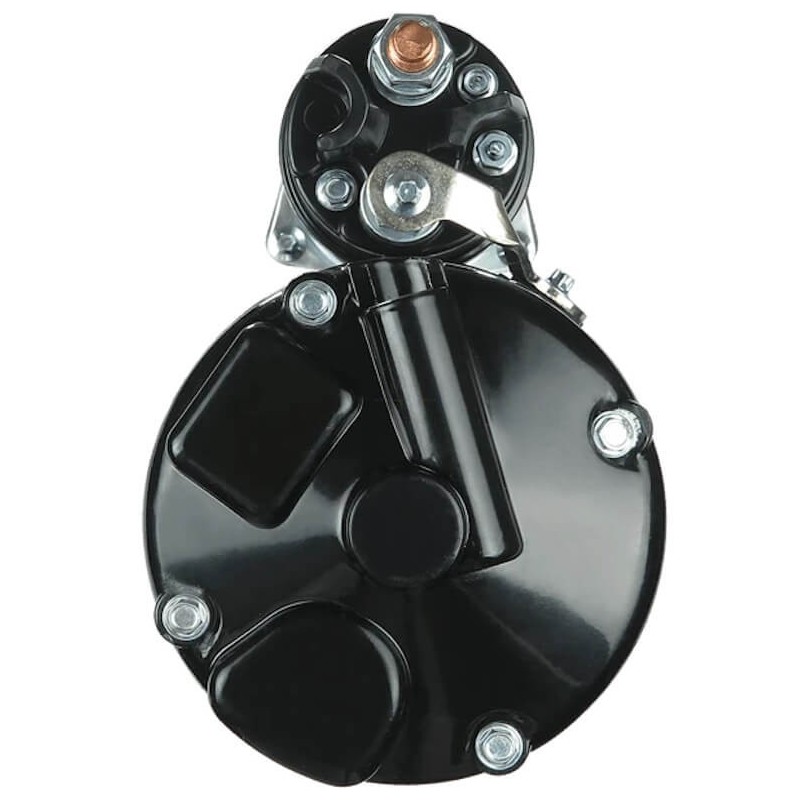

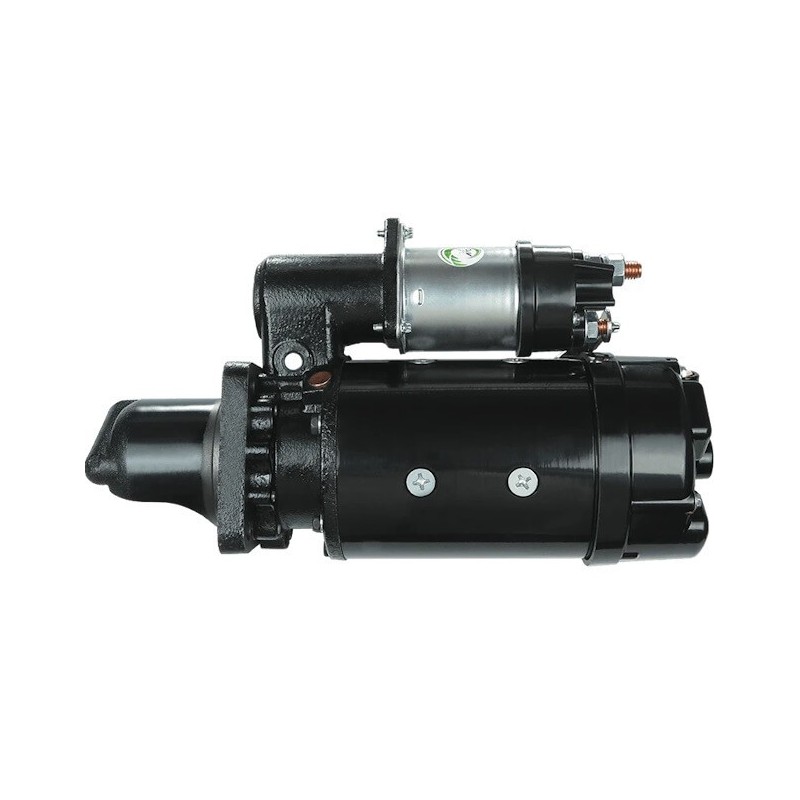

Starter replacing A169694 / 3675116RX / 3908594 / 10479108 / 1990499 / 1993903 / 1993954
Starter replacing :
Case A169694
CUMMINS 3675116RX, 3908594
DELCO REMY 10479108, 1990499, 1993903, 1993954
24 Volt / 10 Teeth / 3 mounting points
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical information | ||
|---|---|---|
| Voltage | 24 | |
| Kw | 4.5 | |
Physical Information | ||
|---|---|---|
| H | Nbr of teeth | 10 |
| P | Rotation | Cr |
| N | Gear type | Dd |
| A | Mount flange | 89.00 |
| I | B+ | 3/8" UNF |
| B | Drive distance | 46.00 |
| E | Mounting holes | 11.00 |
| E | Mounting holes 2 | 11.00 |
| E | Mounting holes 3 | 11.00 |
| F | Distance / Back | 288.00 |
| G | Distance / Front | 93.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 90.00 |
| O | Distance 2 | 127.00 |
| O | Distance 3 | 90.00 |
| R | Total length mm | 401.00 |
Solenoid to 322°
generic brand
Case A169694
CUMMINS 3675116RX, 3908594
DELCO REMY 10479108, 1990499, 1993903, 1993954
Replacing | |
|---|---|
| 10479108 | DELCO REMY (DELCO) |
| 112187 | Cargo |
| 1993903 | DELCO REMY (DELCO) |
| 1993954 | DELCO REMY (DELCO) |
| 3908594 | CUMMINS |
| 8200024 | DELCO REMY (DELCO) |
| A169694 | Case |
Mounted on :
Case (1983-1999)
Dresser (1984-1992)
Samsung (1992-1998)
| Brand | Model | Year |
|---|---|---|
| CASE | 880 | 01.1986- |
| CASE | Various Models | 01.1990-01.1998 |
| CASE | W14 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
