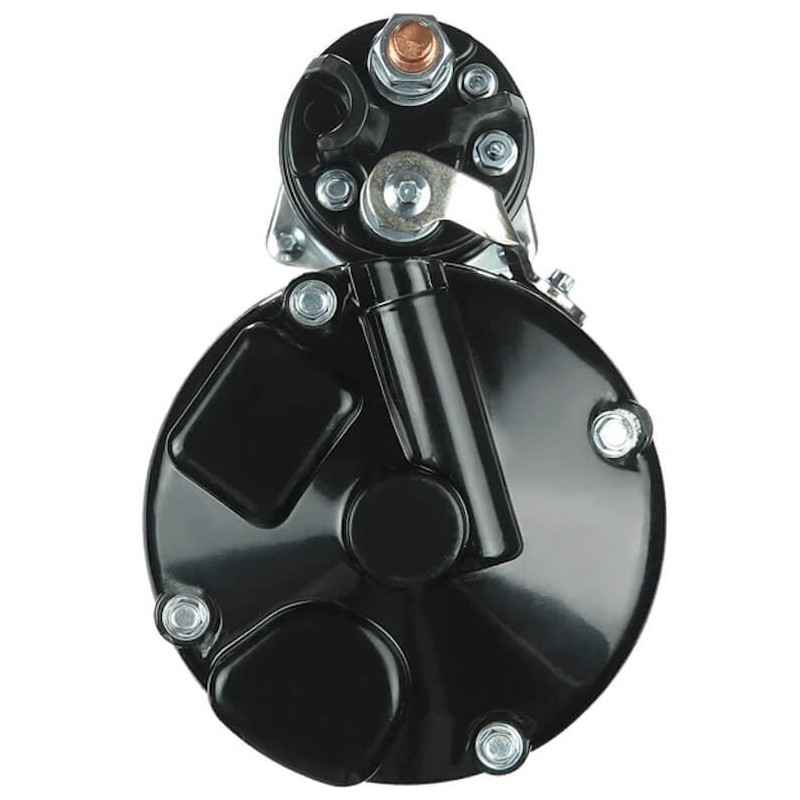

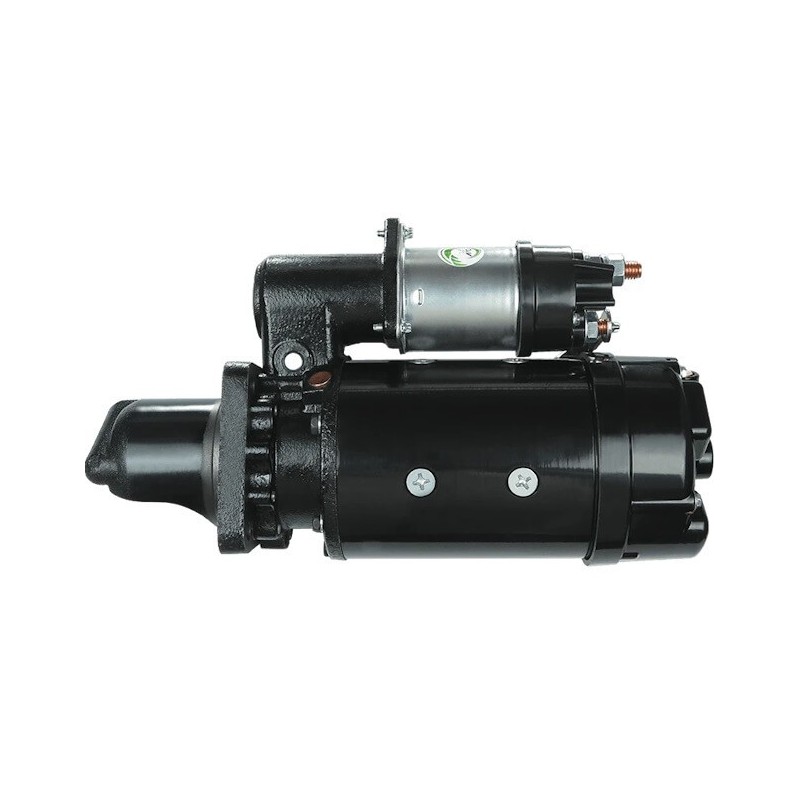

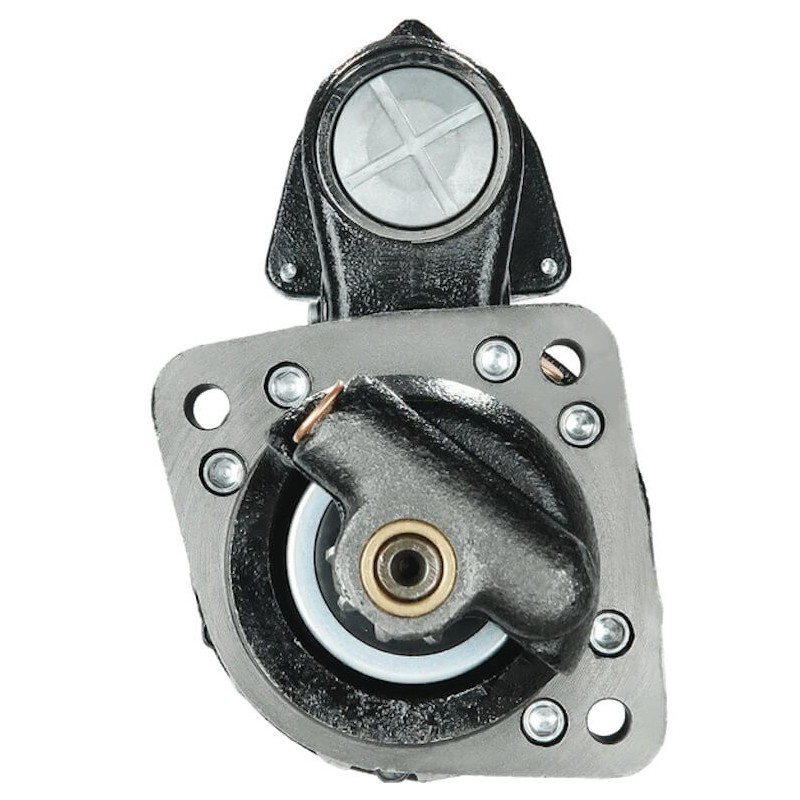

Starter replacing :
Case A169694
CUMMINS 3675116RX, 3908594
DELCO REMY 10479108, 1990499, 1993903, 1993954
24 Volt / 10 Teeth / 3 mounting points / 4.5 kW
Mounting hole spacing: 128 mm / 90 mm / 90 mm
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
All of our alternators and starters are new and come with a two-year warranty.
About Us
WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.
Our Logistics
Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.
Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product
Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers
Electrical information |
||
|---|---|---|
| Voltage | 24 | |
| Kw | 4.5 | |

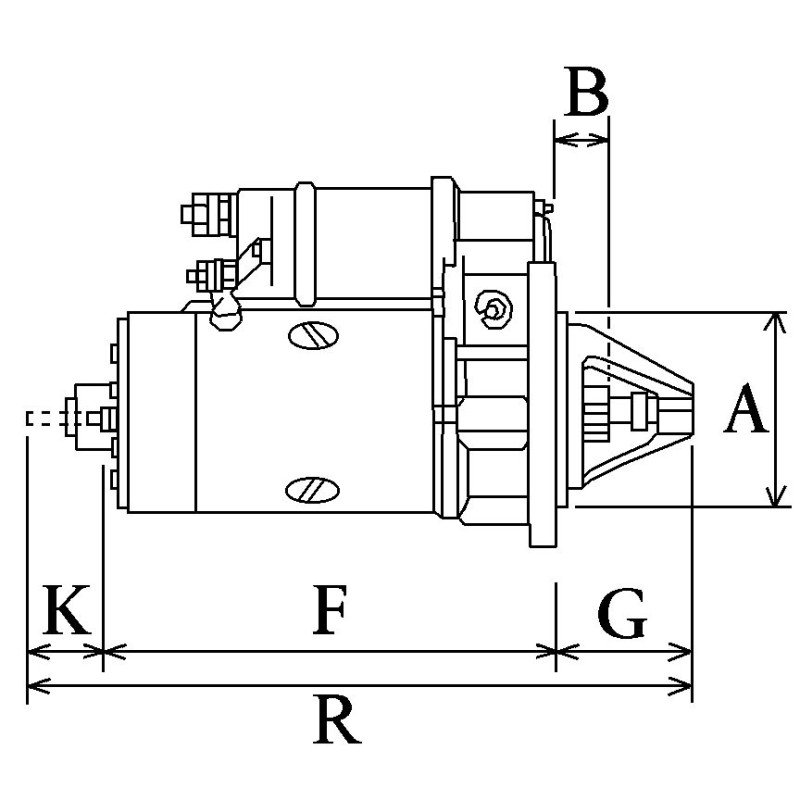

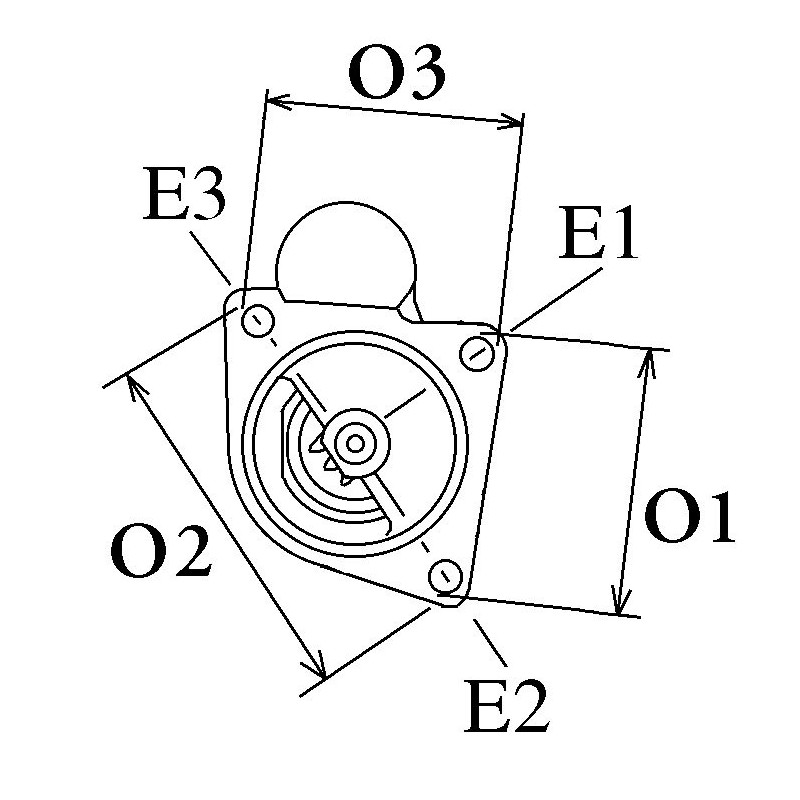

Physical Information |
||
|---|---|---|
| H | Nbr of teeth | 10 |
| P | Rotation | Cr |
| N | Gear type | Dd |
| A | Mount flange | 89.00 |
| I | B+ | 3/8" UNF |
| B | Drive distance | 46.00 |
| E | Mounting holes | 11.00 |
| E | Mounting holes 2 | 11.00 |
| E | Mounting holes 3 | 11.00 |
| F | Distance / Back | 288.00 |
| G | Distance / Front | 93.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 90.00 |
| O | Distance 2 | 127.00 |
| O | Distance 3 | 90.00 |
| R | Total length mm | 401.00 |
Solenoid to 322°
generic brand
Case A169694
CUMMINS 3675116RX, 3908594
DELCO REMY 10479108, 1990499, 1993903, 1993954
Replacing |
|
|---|---|
| 10479108 | DELCO REMY (DELCO) |
| 112187 | Cargo |
| 1993903 | DELCO REMY (DELCO) |
| 1993954 | DELCO REMY (DELCO) |
| 3908594 | CUMMINS |
| 8200024 | DELCO REMY (DELCO) |
| A169694 | Case |
Mounted on :
Case (1983-1999)
Dresser (1984-1992)
Samsung (1992-1998)
| Brand | Model | Year |
|---|---|---|
| CASE | 880 | 01.1986- |
| CASE | Various Models | 01.1990-01.1998 |
| CASE | W14 |
