Starter replacing 31200-ZF5A-L310 / 31200-ZF5-L32 / 31200-zf5-l320
Starter replacing HONDA 31200-ZF5A-L310 / 31200-ZF5-L32 / 31200-zf5-l320
10 teeth model for Honda GXV340 / GXV390
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 0.8 | |

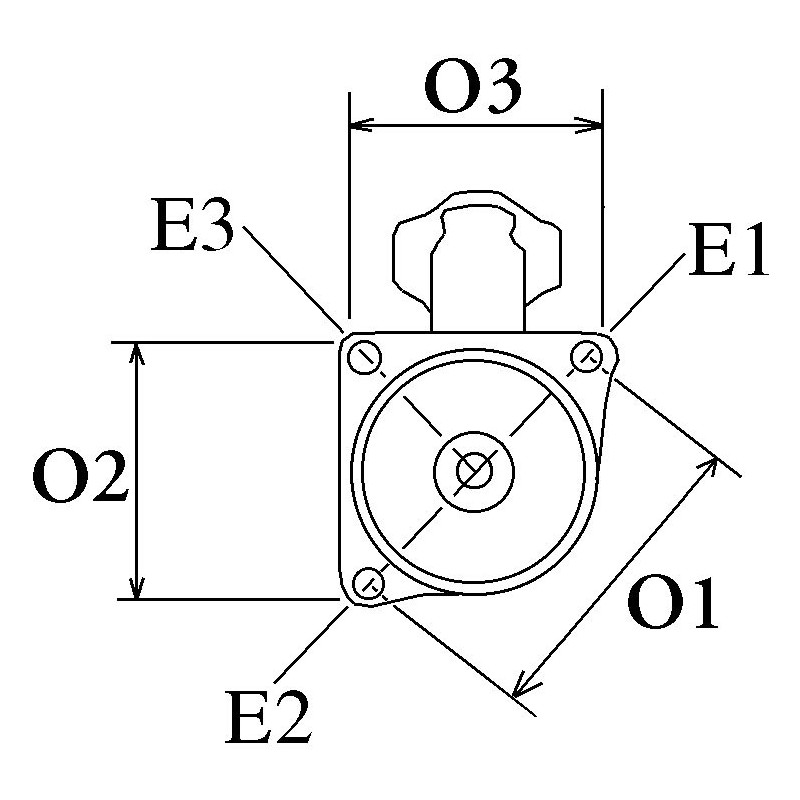

Physical Information | ||
|---|---|---|
| A | Mount flange | 60.50 |
| E | Mounting holes | 6.00 |
| E | Mounting holes 2 | 9.00 |
| E | Mounting holes 3 | 9.00 |
| B | Drive distance | 8.00 |
| F | Distance / Back | 160.00 |
| G | Distance / Front | 44.50 |
| H | Nbr of teeth | 10 |
| I | B+ | 1/4" UNC |
| N | Gear type | Dd |
| O | Distance mm | 26.00 |
| O | Distance 2 | 91.50 |
| O | Distance 3 | 109.50 |
| P | Rotation | COUNTER CLOCKWISE |
| R | Total length mm | 204.00 |
Replacing | |
|---|---|
| 31200-ZF5A-L310 | HONDA |
| 31200-ZF5-L32 | HONDA |
| 31200-zf5-l320 | HONDA |
| 010310 | Andre Niermann |
| 106531 | PIC |
| 12041110 | EuroTec |
| 12041660 | EuroTec |
| 120544103 | PSH |
| 22946 | LUCAS |
| 31200ZF5AL310 | HONDA |
| 31200ZF5L31 | HONDA |
| 31200ZF5L32 | HONDA |
| 5917 | Lester |
| 5917N | WAI |
| 5917R | WAI |
| 71095917 | WILSON |
| 91091087 | WILSON |
| L41065 | ATL |
| L41110 | ATL |
| L41660 | ATL |
generic brand
Mounted on :
HONDA
| GX | GXV340 | |
| GX | GXV390 | 0.5 |
Toro :
Z320 micro tractor
