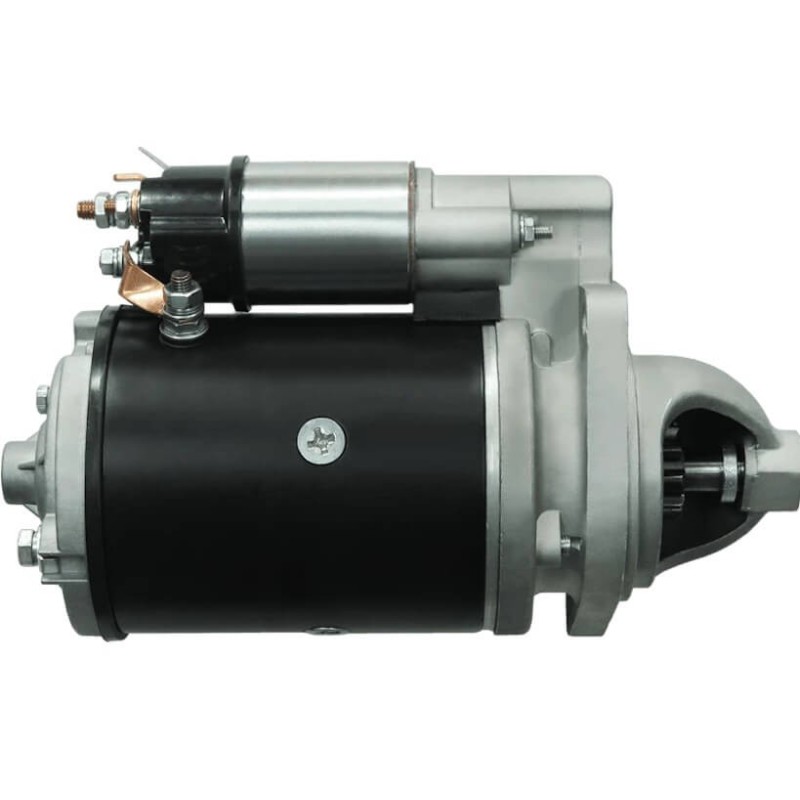

Starter replacing 0001359116 / 26246 / 26304 / 26343a / 26376 for JCB / LEYLAND / PERKINS machinery

w111573

It is important to carefully check the launcher's opening and determine which side the toothed section is on, as there are different configurations depending on the engine and original part numbers.

Starter / for Avia, JCB, TCM

engins agriculturals

= BOSCH 0001359116

= LUCAS 27526D / 27526A / 27526 / 27513A / 27513 / 26376L / 26376K / 26376A 26376 / 26351 / 26343K / 26343D / 26343B

Read more
€169.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

0001359116 BOSCH
111573 CARGO
17071N WAI
17071R WAI
20405011BN REAL
20405011OE REAL
20500106 PRESTOLITE
25-0081 ELSTOCK
254103P KUHNER
26025183 LUCAS
26025183A LUCAS
26246 LUCAS
26246A LUCAS
26246E LUCAS
26246F LUCAS
26246J LUCAS
26246K LUCAS
26246L LUCAS
26246M LUCAS
26304 LUCAS
26304A LUCAS
26304B LUCAS
26304D LUCAS
26343 LUCAS
26343A LUCAS
26343B LUCAS
26343D LUCAS
26343E LUCAS
26343F LUCAS
26343K LUCAS
26351 LUCAS
26351B LUCAS
26351D LUCAS
26376 LUCAS
26376A LUCAS
26376E LUCAS
26376K LUCAS
26376L LUCAS
27513 LUCAS
27513A LUCAS
27526 LUCAS
27526A LUCAS
27526D LUCAS
6025110 SANDO
700.014.103 WAI
714-03000R JCB
AES1106 AUTOELECTRO
AES2112 AUTOELECTRO
CGB-23456 AINDE
CST25110 CASCO
CST25110AS CASCO
CST25110ES CASCO
CST25110GS CASCO
CST25110OS CASCO
CST25110RS CASCO
LRD132 LUCAS
LRS00106 LUCAS
LRS0106 LUCAS
LRS106 LUCAS
MAV3620 SIOM
MAV3810 SIOM
SG0164 GHIBAUDI
STR25007 WOODAUTO
STRS092 3EFFE
TS-4048 DIXIE
UD12401S AS-PL
S4054 AS-PL
336227 LOGISTIK
STR4139 ELECTROLOG
26294 JCB
714-11200 JCB
714-40006 JCB
714/11200 JCB
STX200542 STARDAX
F032111573 CARGO
S134.941 WAI

Features

Information:

Rotation Cr

KW 2.8

Voltage 12

A = Mount flange 101.00

B =  Drive distance 25.50

F =  Distance / Back 238.70

G =  Distance / Front 72.40

H =  Nbr of teeth 10

B+ M8

Gear type Dd/gr

O =  Distance mm 102.25

O =  Distance 2 144.90

O =  Distance 3 102.75

Nbr of mounting holes 3 (0)

Drive Type Steel

R =  Total length mm 311.00

= LUCAS 26246  / 26246A / 26246E / 26246L / 26246M / 26304
26304A   / 26304B / 26304D / 26343 / 26343A / 26343B / 26343D
26343K / 26351 / 26376 / 26376A / 26376K / 26376L / 27513
27513A / 27526 / 27526A / 27526D

= JCB 71403000R

                 NO CORE EXCHANGE NEEDED

                                 TWO YEARS WARRANTY

Mounting on

Brand Model Typ Year
DENNIS Bulkmaster 50/70   01.1972 - 12.1979
HEDEN 345   -
JCB 2B   01.1969 - 01.0001
JCB 520M   01.1986 - 12.1997
JCB 4D   01.1969 - 12.1980
JCB 520   01.1975 - 12.1981
JCB 410   01.1982 - 12.1994
JCB 3CX   01.1980 - 12.1981
JCB 4D 384/4 01/01/72
JCB 3D 384/4 01/01/72
JCB 3 384/4 01/01/71
JCB 2D 384/4 01.1972 - 01.0001
JCB 3/3C 384/4 01/01/72
JCB 3D 01/04/65 01/01/71
JCB 3 01/04/65 01/01/71
JCB 3/3C 01/04/65 01/01/71
JCB 2D 01/04/65 01/01/71
JCB 4D 01/04/65 01/01/71
JCB 2D/2DS 01/04/65 01/01/71
LEYLAND Various Models   01.1971 - 12.1976
LEYLAND 262 4/98DT 01.1976 - 12.1979
LEYLAND 270 4/98NT 01.1974 - 12.1976
LEYLAND 285 6/98DT 01.1977 - 12.1979
LEYLAND 245 D3.152 01.1974 - 12.1977
TCM FC 3024   04.1986 - 01.0001
