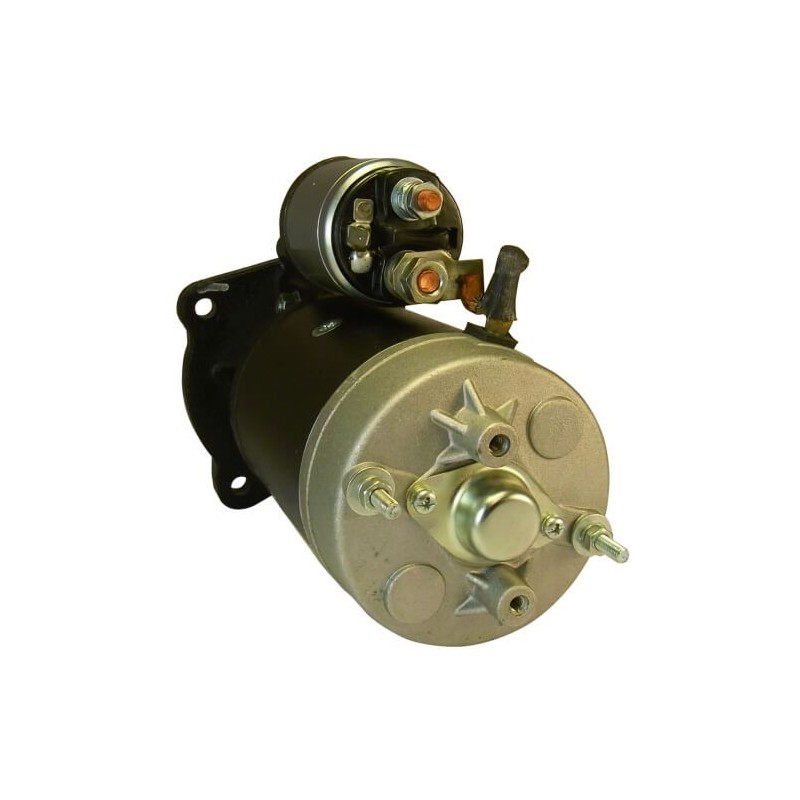

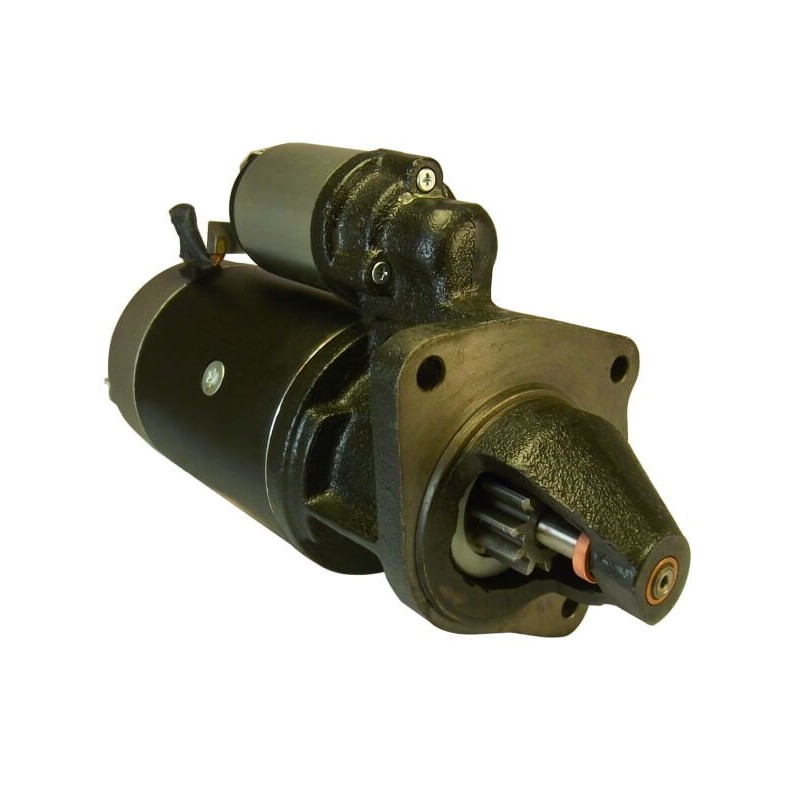

Starter replacing 0001369023 / 0001369020 / 0001369015 for FORD / CASE IH / NEW HOLLAND tractors

This new 12-volt, 3.1 kW starter is designed as a direct replacement for a faulty starter on public works machinery or agricultural equipment. It features a 10-tooth pinion and an M8 B+ terminal. It replaces OEM part numbers from brands such as Bosch, Ford, Iskra, Lucas, and Magneton, making it easy to identify the correct part based on your existing reference number. Before ordering, please verify compatibility with your original starter's part number and check the mounting dimensions to ensure a perfect fit. This starter is supplied brand new with a 2-year warranty and requires no core exchange—meaning the old unit does not need to be returned—thereby simplifying and speeding up the purchasing process. Installation and checks

Check voltage (V) and power (kW)

Check number of teeth and fit (mm)

Check number of mounting holes and position (°)

Check B+ connection

Check direction of rotation

Technical specifications

Voltage: 12

kW: 3.1

Mounting flange: 92.00

Pinion distance: 21.00

Distance/rear: 250.00

Distance/front: 68.00

No. of teeth: 10

B+: M8

Drive type: Dd

O1 = Distance: 103.50

Distance 2: 146.10

Distance 3: 103.50

Rotation: Cr

No. of mounting holes: 3 (0)

Pinion type: Steel

Total length: 329.00

generic brand

Warranty, delivery, and returns

Brand new product

No core charge, no old unit return required

2-year warranty

Fast shipping from our European warehouses
