Starter replacing BOSCH 0001416035 / 0001416030 / 0001410109

Information:

Voltage 24

KW 5.4

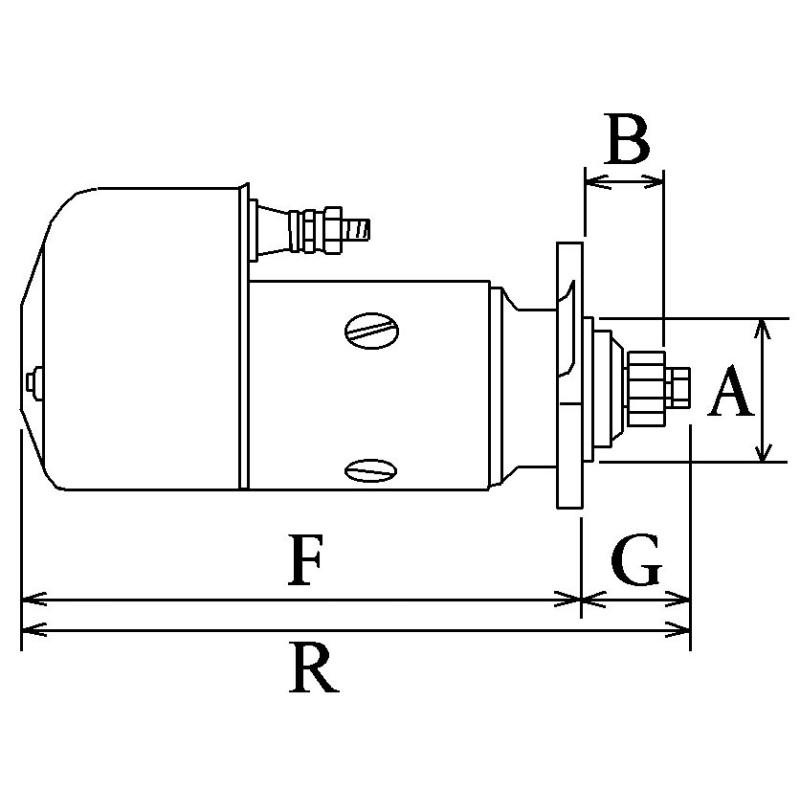

A = Mount flange 89.00

B = Drive distance 47.00

F = Distance / Back 324.00

G = Distance / Front 61.50

H = Nbr of teeth 11

B+ M10

Gear type Dd

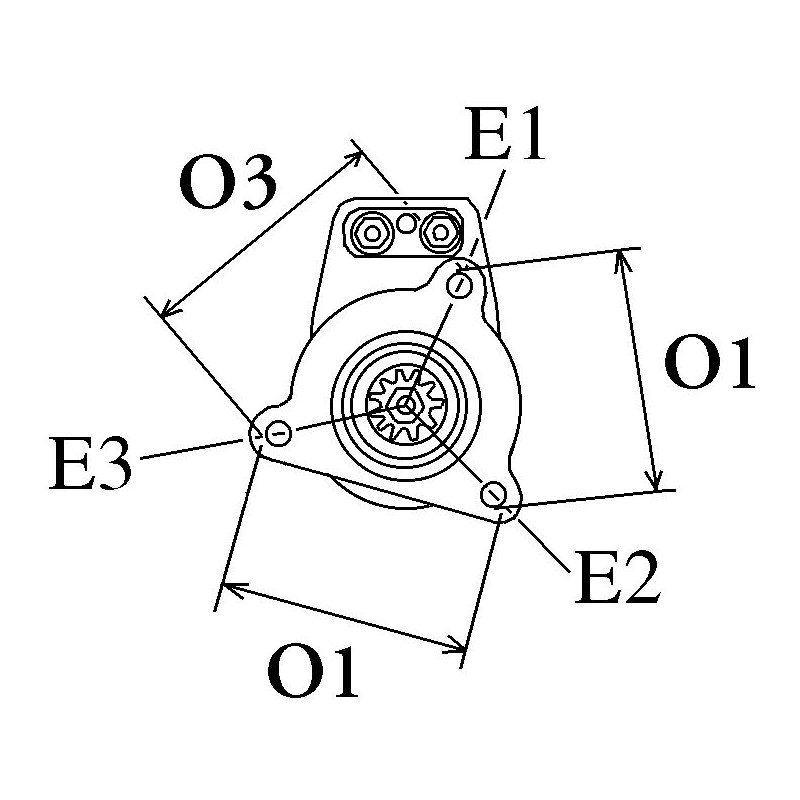

O = Distance 90.00

O = Distance 2 90.00

O = Distance 3 127.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 390.00

 = AVF (DELCO - H / MOG ) IM530
  = BOSCH 0001410053 / 0001410063 / 0001410099 / 0001410109
0001416030 / 0001416035 / 0986011460

  = BOWERS-UK BSO7249
  = DELCO remy 19024030 / DRS1460
  = DRI 618,009,114
  = Efel 10600 / 22617
  = ELMOT 6180000 / R23.18
  = ELSTOCK 45-0184 / 45-1274 / 45-184
  = FIAT 8122161
  = FRIESEN 88-11.460
  = HELLA 8EA726131-001
  = ISKRA IS0428 / IS9002
  = LUCAS LRS00861 / LRS02151
  = MAGNETI MARELLI 943252189 / 943252189010
  = MAGNETON 9125370
  = PIC 120-582B
  = RCP 27909
  = SPIDAN 1557
  = WAI 50-9115
  = WILSON 91-15-6930
  = WOOD-UK STR22014 / STR22016 / STR22019
  STR50061

                                 NO CORE EXCHANGE NEEDED

                                                   TWO YEARS WARRANTY
