Starter replacing BOSCH 0001416003 / 0001415011 / 0001410062

Information:

Voltage 24

KW 5.4

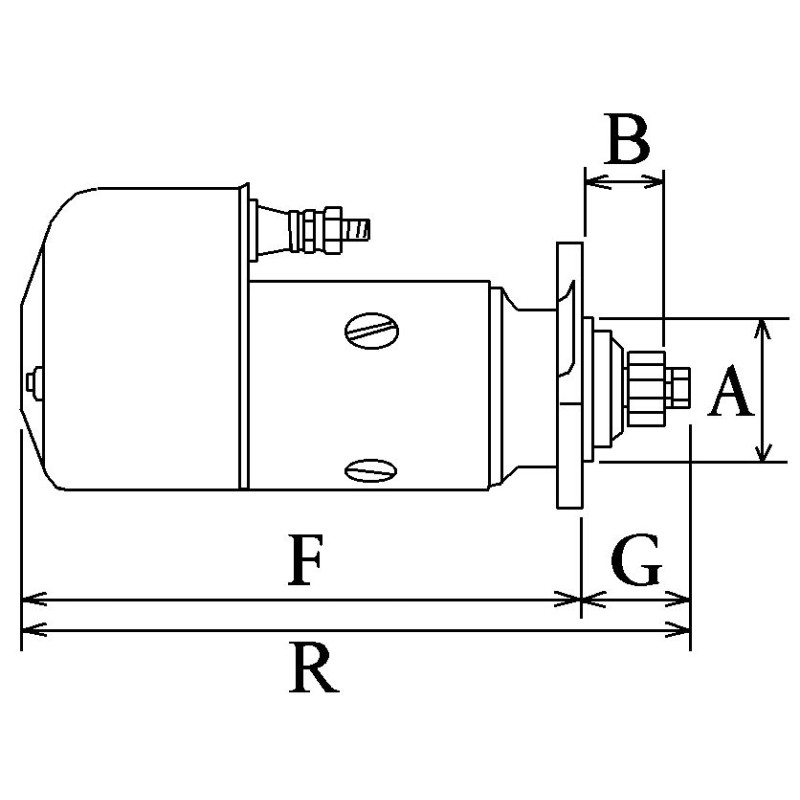

A = Mount flange 89.00

B = Drive distance 46.50

F = Distance / Back 319.00

G = Distance / Front 61.50

H = Nbr of teeth 11

B+ M10

B- M10

Gear type Dd

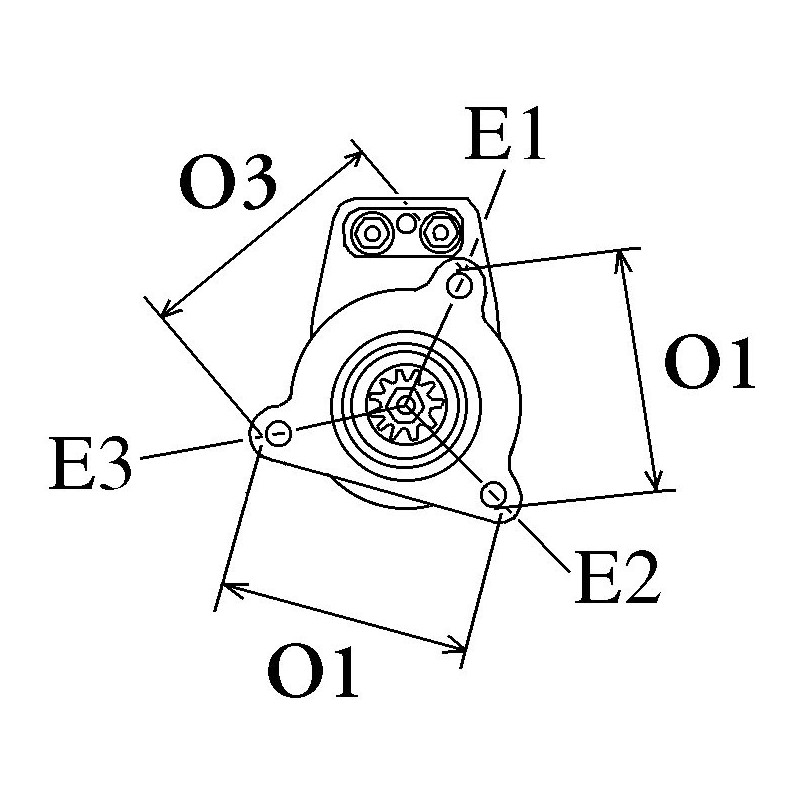

O = Distance 90.00

O = Distance 2 90.00

O = Distance 3 126.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 387.00

generic brand

= AVF IM503 /IM323 / IM 323 / IM 503

= BOSCH 0001415011 / 0986011580 / 0001416003 / 0001410062

= CLAAS 1326431 / 132 643 1

= DAF 678627

= DELCO REMY 11670003 / 19024011 / DRS1580

= EDR 911580

= EFEL 22603 / 10650

= Elmot R23-09 /609000.0

= HELLA 8EA726190001 / 8EA726190-001 / 8EA 726 190

= LETRIKA / ISKRA 11139010 / 11130287 / AZL3624 / IS9010 / AZK5170

= LUCAS LRS865 / LRS00865

= MAGNETI MARELLI MSR691 / 943252191 / MSR 691

= MAN 51262019042 / 51262017042

= Monark 081 466 003 / 081466003

= RENAULT 51262017042 / 7701003914 / 5000804191 / 7701003914

= STEYR 61500090029 / 61560090001 /61500090012

                                 NO CORE EXCHANGE NEEDED

                                                   TWO YEARS WARRANTY
