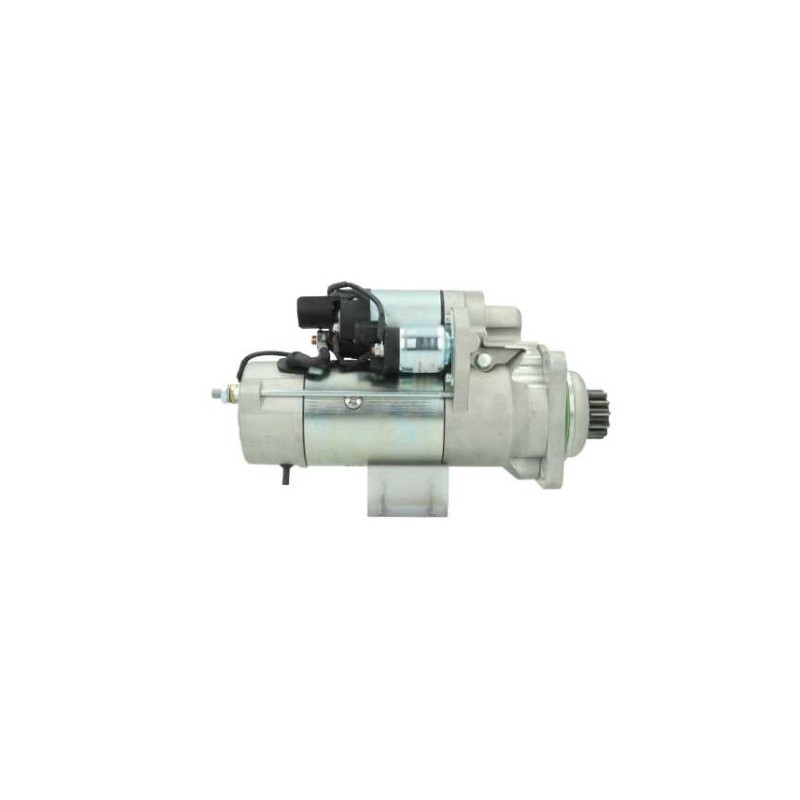

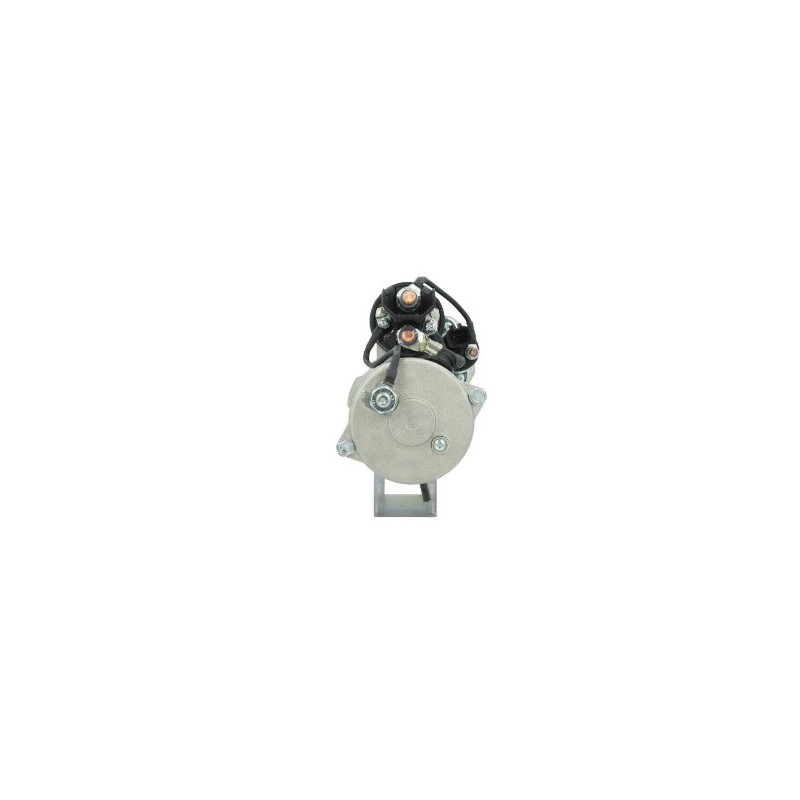

Starter ISKRA AZF4671 / AZF4697 / 11.131.870 / 11.131.688
Starter ISKRA AZF4671 / AZF4697 / 1183033 / 11131870 / 11131688 / 01183033 / IS1241
for DEUTZ-FAHR, KHD
NO CORE EXCHANGE NEEDED
More info
| Voltage | 24 | |
| Kw | 5.4 |
Physical Information | ||
|---|---|---|
| H | Nbr of teeth | 12 |
| P | Rotation | Cr |
| N | Gear type | Gr |

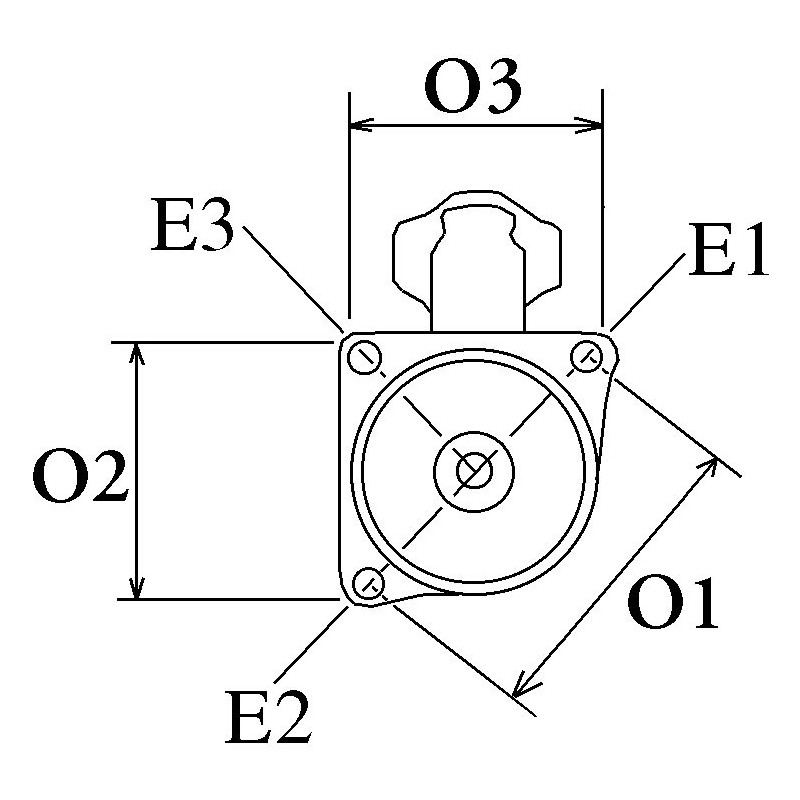

| A | Mount flange | 89.00 |
| I | B+ | M10 |
| B | Drive distance | 48.00 |
| E | Mounting holes | 10.90 |
| E | Mounting holes 2 | 10.90 |
| E | Mounting holes 3 | 10.90 |
| F | Distance / Back | 272.00 |
| G | Distance / Front | 48.00 |
| S | B- | M10 |
| K | Thread length mm | 25.00 |
| M | Mount. bracket | Non |
| O | Distance mm | 89.90 |
| O | Distance 2 | 89.90 |
| O | Distance 3 | 127.00 |
| R | Total length mm | 355.00 |
| MARQUE | MAHLE ISKRA LETRIKA | |
Replacing | |
|---|---|
| 01183033 | KHD |
| 11.131.688 | ISKRA |
| 11.131.870 | ISKRA |
| 1183033 | KHD |
| AZF4671 | ISKRA |
| AZF4697 | ISKRA |
