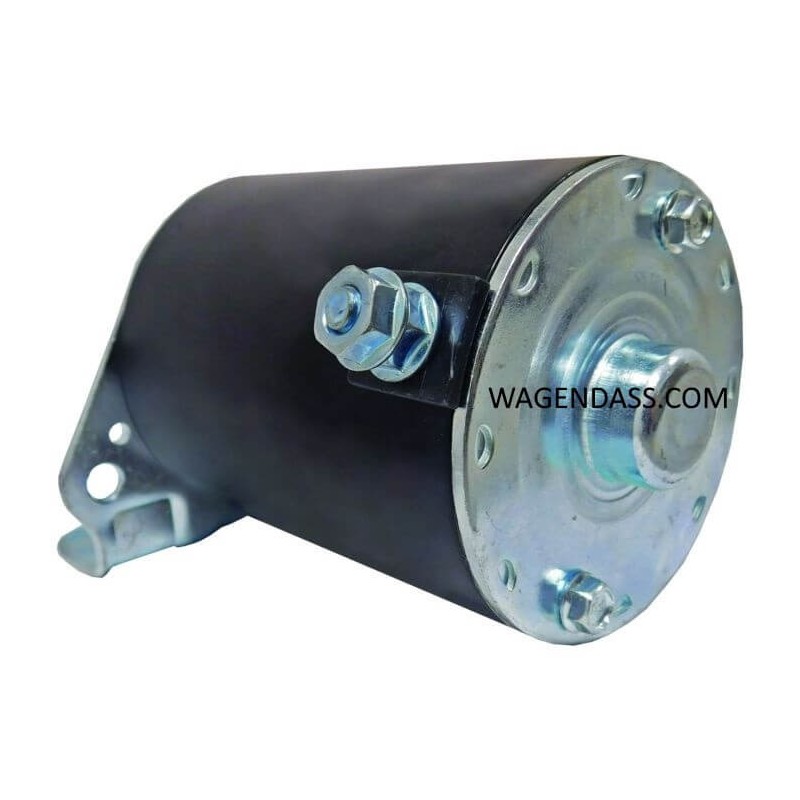

Starter 14 Teeth replacing Brigs & Stratton 693551

Information:

Voltage 12

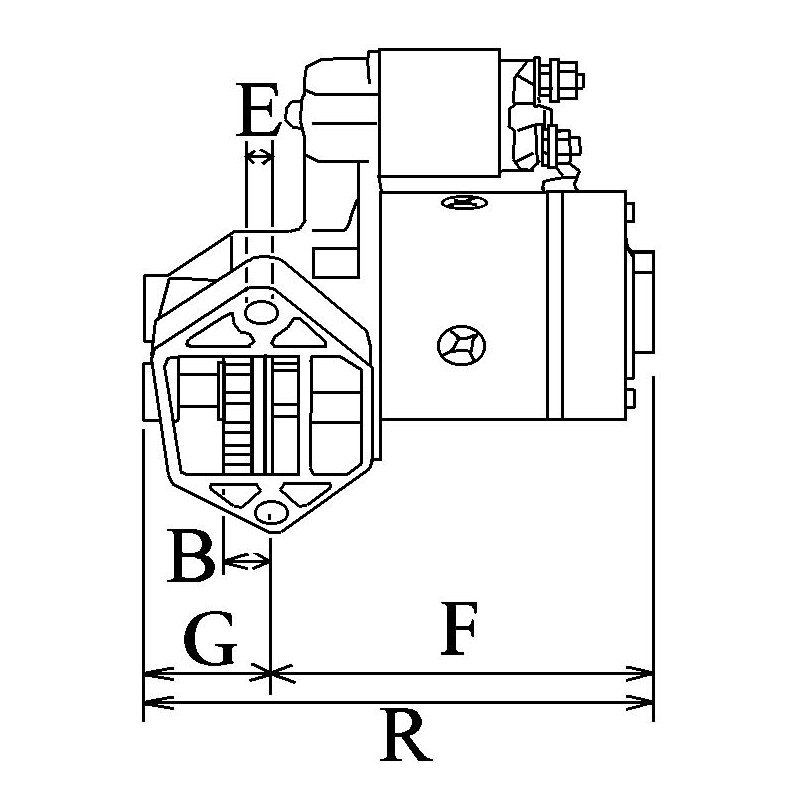

B = Drive distance 13.00

F = Distance / Back 129.50

G = Distance / Front 37.50

H = Nbr of teeth 14

B+ 1/4" UNC

Gear type PMDD

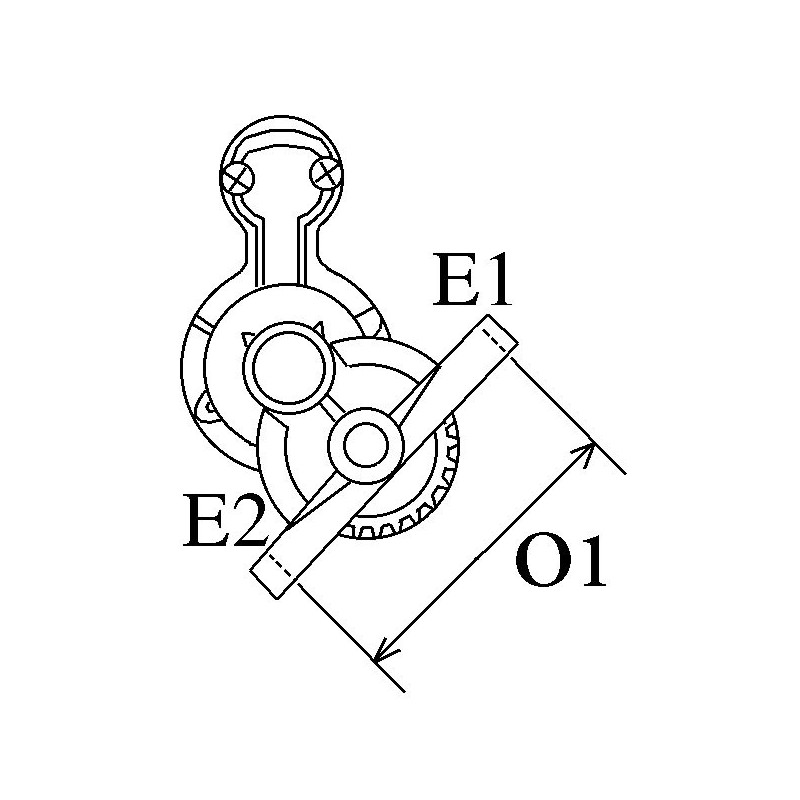

O = Distance 58.10

Rotation COUNTER CLOCKWISE

Nbr of mounting holes 3 (0)

Drive Tipo Bronze

R = Total length mm 170.00

can be mounted on :

- Mc Culloch M105-77X - M105-77XC be sure to check the number of teeth and center distance before purchase.

BRIGGS et STRATTON
Model 280700 à 289799 - 310700 à 313799 - 31C700 à 31C799 - 31F700 à 31F799

CUB CADET : RZT17 04 Briggs & Stratton 17 CV

CUB CADET : RZT42 06-05 Briggs & Stratton 17.5 CV

CUB CADET : Z-Force 42 04 Briggs & Stratton 18.5 CV

CUB CADET : 1170 01-00 Briggs & Stratton 17 CV (Sgl.)

CUB CADET : 1170 01-00 Briggs & Stratton 17 CV (Twin)

CUB CADET : 1600 99 Briggs & Stratton 16.5 CV Courrone en Acier

CUB CADET : 1800 99 Briggs & Stratton 18 CV Courrone en Acier

CUB CADET : LT1018 04 Briggs & Stratton 18.5 CV

JOHN DEERE : Europa 1642HS Briggs & Stratton 16 CV

JOHN DEERE : L100 Briggs & Stratton 17 CV

JOHN DEERE : L105 Briggs & Stratton 14.5 CV :

JOHN DEERE : L107 Briggs & Stratton 17 CV

JOHN DEERE : Sabre 14.542GS Briggs & Stratton 14.5 CV

JOHN DEERE : Sabre 1642HS Briggs & Stratton 16 CV

JOHN DEERE : Sabre 1742GS Briggs & Stratton 17 CV

JOHN DEERE : Sabre 1742HS Briggs & Stratton 17 CV

SABO : 107-17HS Briggs & Stratton 17 CV

SABO : 108-14.5 Briggs & Stratton 14.5 CV

SABO : 108-17HS Briggs & Stratton 17 CV

SCOTTÍS : L1742 Briggs & Stratton 17 CV

SCOTTÍS : S1742 Briggs & Stratton 17 CV

motor Briggs et Stratton :

212707, 212907, 214707, 214907, 215707, 215807, 215907, 216907, 217707, 217807, 217907, 219702, 219707, 219807, 219907, 21A707, 21A807, 21A902, 21A907, 21A972, 21A977, 21B707, 21B807, 21B902, 21B907, 21B972, 21B977, 280H07, 280J07, 281H07, 282H07, 283702, 283707, 283H07, 284702, 284707, 284H07, 284H77, 285H07, 285H77, 286702, 286707, 287707, 288702, 288707, 289702, 289707, 28B702, 28B707, 28CH77, 28D707, 28M707, 28N707, 28N777, 28P777, 28Q777, 28R707, 28S707, 28S777, 28T707, 28U707, 28V707, 28W707, 310707, 311707, 311777, 312777, 313707, 313777, 31A507, 31A607, 31A677, 31A707, 31A777, 31B707, 31C707, 31D707, 31D777, 31E777, 31F707, 31F777, 31G777, 31H777, 31L777, 31M777, 31P677, 31P707, 31P777, 31P877, 31P977, 31Q677, 31Q777

                                      NO CORE EXCHANGE NEEDED
