Starter replacing BOSCH 0001368077 / 0001231006 for KHD

Information:

Voltage 24

KW 4.0

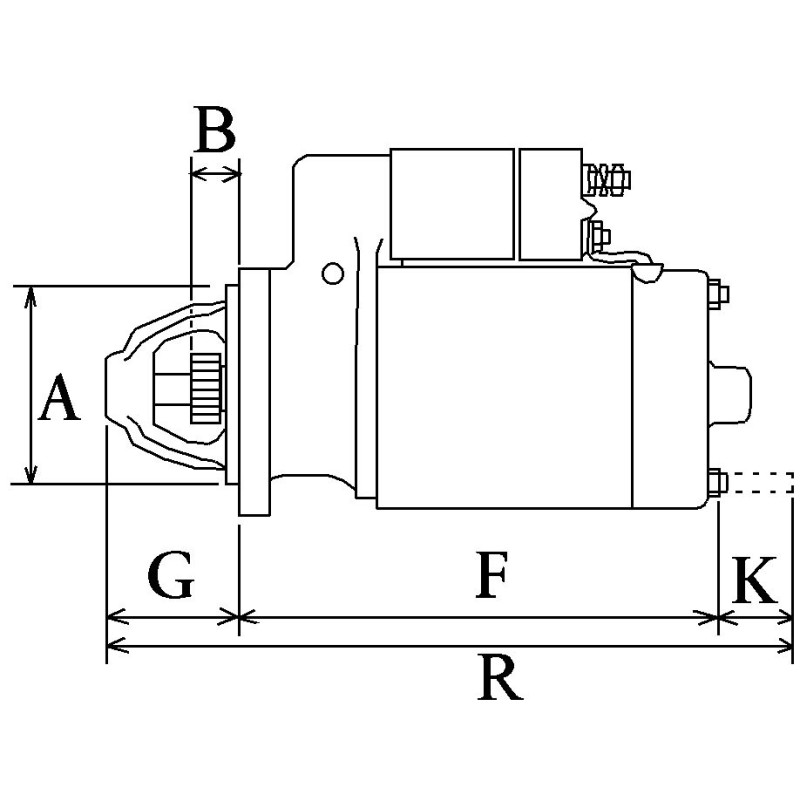

A = Mount flange 82.50

B = Drive distance 23.00

F = Distance / Back 232.00

G = Distance / Front 71.00

H = Nbr of teeth 11

B+ M10

Gear type Gr

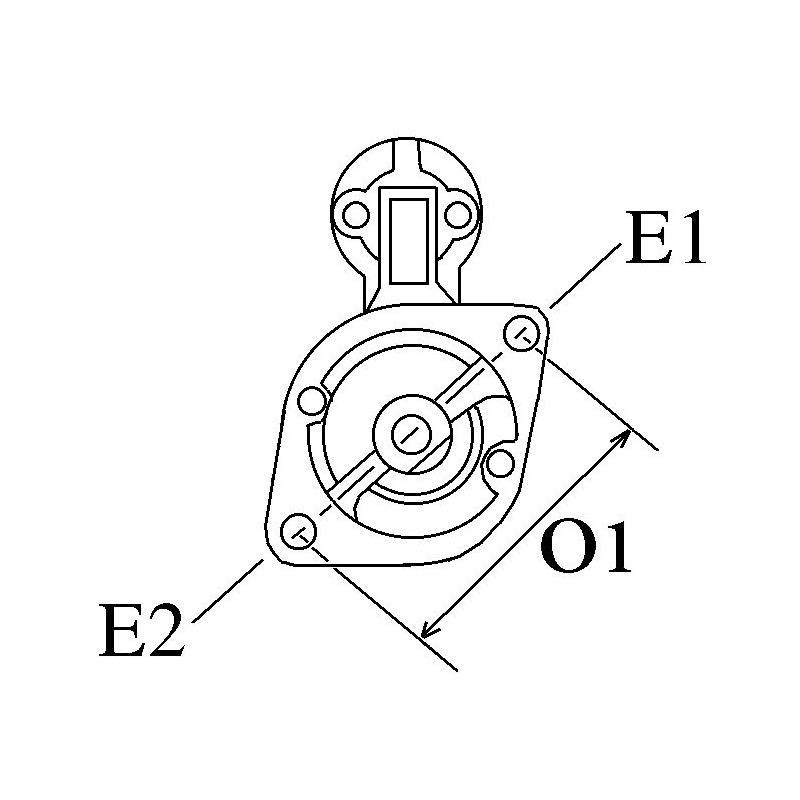

O1 = Distance 101.50

Rotation Cr

Nbr of mounting holes 2 (0)

Drive Tipo Steel

R = Total length mm 319.00

= BOSCH 0001368077 / 0001231006

= KHD 01177442 / 01178671 / 01181101 / 1177442 / 1178671 / 1181101

                       NO CORE EXCHANGE NEEDED

                                      TWO YEARS WARRANTY
