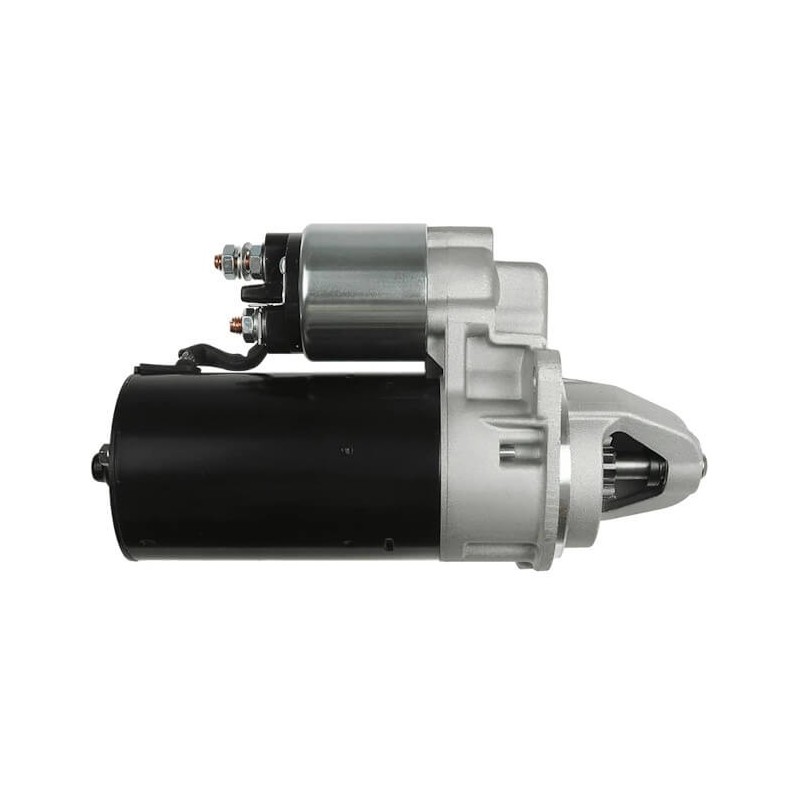

Starter replacing BOSCH 0001108210 / 0001115035 for LOMBARDINI

Information:

Voltage 12

KW 1.6

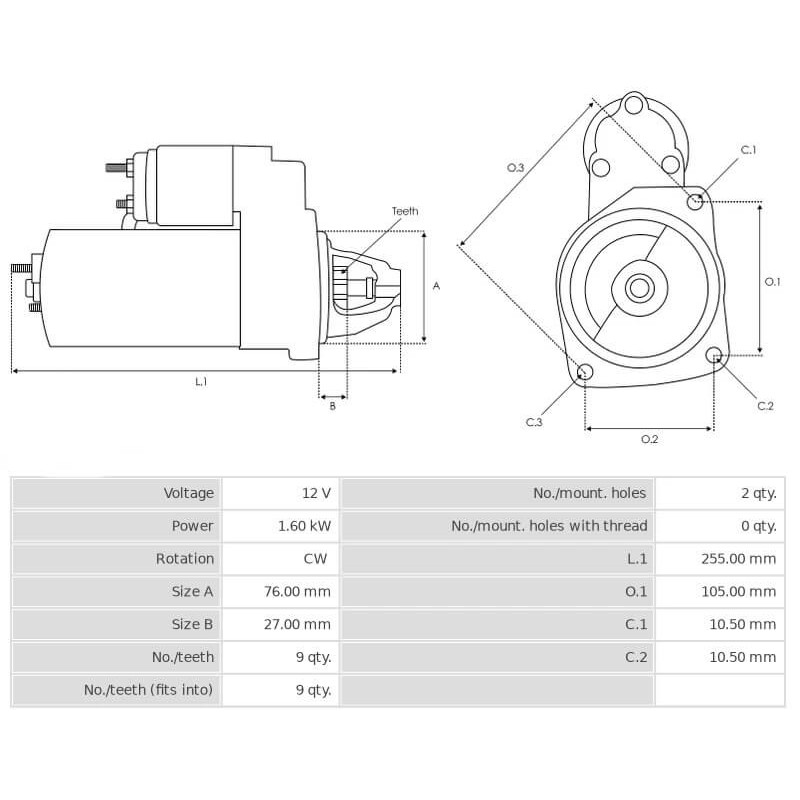

A =Mount flange 76.00

B =Drive distance 28.00

F =Distance / Back 173.00

G =Distance / Front 62.50

Nbr of teeth 9

diameter pinion 29.5 mm

B+ M8

Gear type Gr

O1 =Distance 105.00

Rotation Cr

Nbr of mounting holes 2 (0)

R =Total length mm  247.00

generic brand

= BOSCH 0001108210 / 0001109009 / 0001115035

= LOMBARDINI 5840147 / 58401470 / 58402240

for engine LOMBARDINI :

- 3LD450/S - 3LD510/S (rotation to left)

- 8LD600-2 /  8LD665-2 /   8LD665-2/L / 8LD740-2

- 9LD561-2 /  9LD625-2 /  9LD 626-2

- FOCS / LDW602 / LDW702 / LDW903 / LDW1003 /  LDW1003M / LDW1204 / LDW1404 / LDW1204/T

for engine DEUTZ :

- F2M1008 / F3M1008 / F4M1008

for engine RUGGERINI :

- RD290
