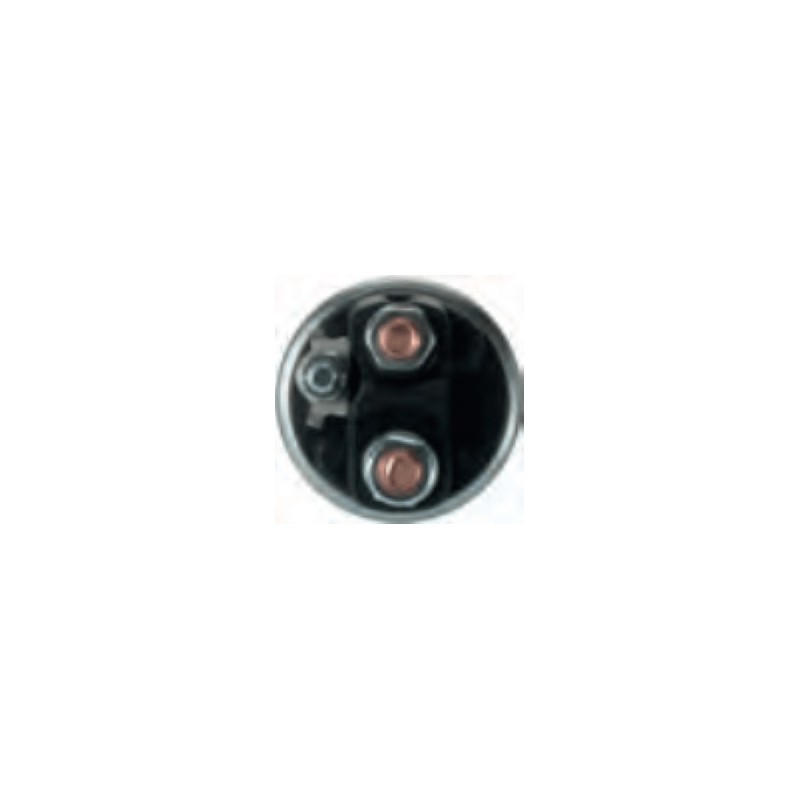

Solenoid for starter BOSCH 0001138009 / 0001138010 / 0001139005
w335056
Solenoid for starter BOSCH 0001138009, 0001138010,0001139005, 0001139006, 0001139013,
0001139014
Replacing | ||
---|---|---|
2339305124 | BOSCH |
Features
generic brand

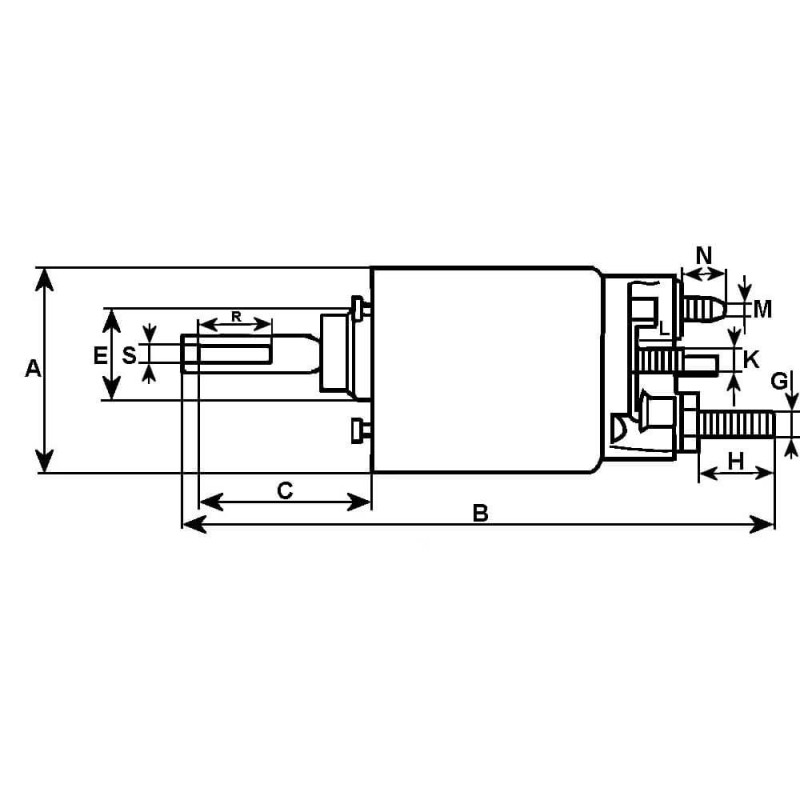

Physical information | ||
---|---|---|
A | OD mm | 52.50 |
B | Total length mm | 138.55 |
No./mount. holes | 3 | |
H | Mount. hole 2 | 20 |
H | Mount. hole 3 | 40 |
H | Mount. hole 4 | 60 |

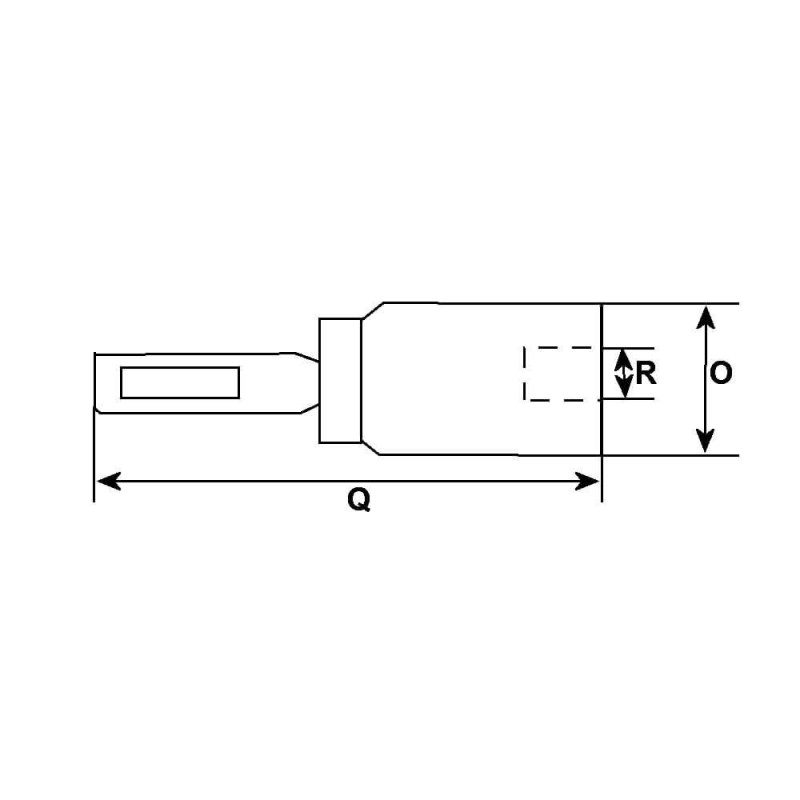

Plunger information | ||
---|---|---|
Q | Length mm | 57.35 |
Fork Lever | w/o | |
S | ID/eye | 4.85 |
Bracket information | ||
---|---|---|
Bracket type | Crimp | |
G | B+ | M8 |
Height/B+ | 16.05 | |
M | Coil bolt | M8 |
N | Coil bolt l. | 4.00 |
No./terminals | 3 |
Electrical information | ||
---|---|---|
Voltage | 12 |
