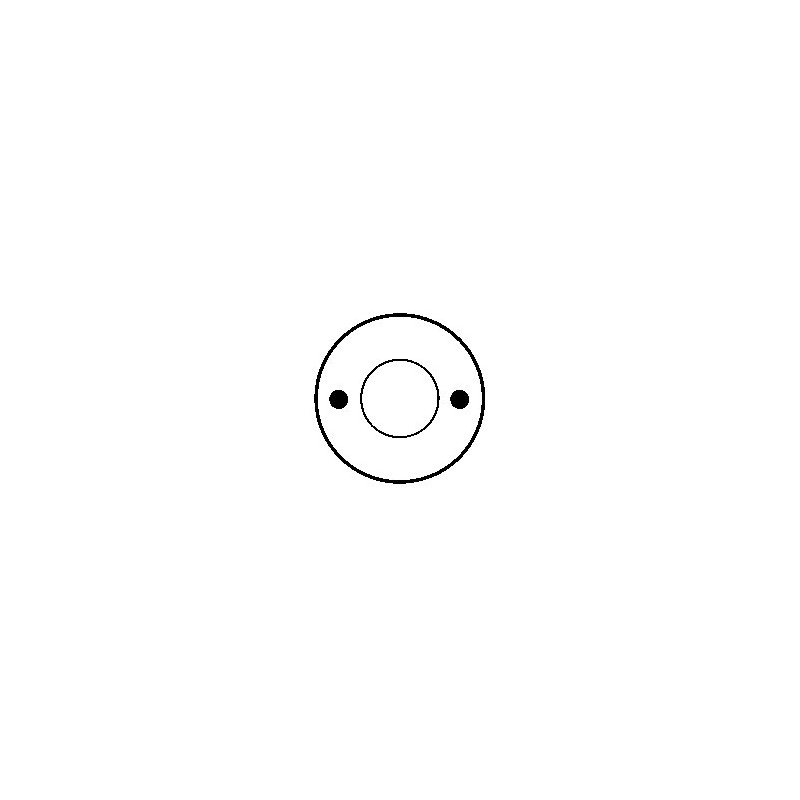

Solenoid for starter DENSO 028000-1850 / 028000-1973 / 028000-2000
Relay / Solenoid for starter
DENSO053400-1150, 053400-1740, 053400-1810, 053400-1811, 053400-1870, 053400-1880, 053400-2120, 053400-2160, 053400-2250
More info
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
Bracket information | ||
|---|---|---|
| D | OD/cover mm | 49.25 |
| G | B+ | M8 |
| Height/B+ | 23.75 | |
| M | Coil bolt | M8 |
| N | Coil bolt l. | 10.50 |
| No./terminals | 4 | |
Physical information | ||
|---|---|---|
| A | OD mm | 50.20 |
| B | Total length mm | 141.80 |
| No./mount. holes | 2 | |
generic brand
= DENSO 053400-3340 / 053400-2557 / 053400-2551 / 053400-2160
053400-1831 / 053400-1830 / 053400-1811
for starter :
| 028000-0197 | DENSO | 3110079610 | SUZUKI |
| 028000-0370 | DENSO | 2810014014 | TOYOTA |
| 028000-1010 | DENSO | 2810020540 | TOYOTA |
| 028000-1011 | DENSO | 2810023010 | TOYOTA |
| 028000-1850 | DENSO | 2810024020 | TOYOTA |
| 028000-1970 | DENSO | 2810024022 | TOYOTA |
| 028000-1971 | DENSO | 2810024060 | TOYOTA |
| 028000-1972 | DENSO | 2810024090 | TOYOTA |
| 028000-1973 | DENSO | 2810024100 | TOYOTA |
| 028000-1975 | DENSO | 2810031022 | TOYOTA |
| 028000-1976 | DENSO | 2810031030 | TOYOTA |
| 028000-2000 | DENSO | 2810033010 | TOYOTA |
| 028000-2001 | DENSO | 2810033011 | TOYOTA |
| 028000-2240 | DENSO | 2810033020 | TOYOTA |
| 028000-2241 | DENSO | 2810034010 | TOYOTA |
| 028000-2570 | DENSO | 2810034020 | TOYOTA |
| 028000-2571 | DENSO | 2810034070 | TOYOTA |
| 028000-2572 | DENSO | 2810034090 | TOYOTA |
| 028000-2660 | DENSO | 2810036020 | TOYOTA |
| 028000-2661 | DENSO | 2810036030 | TOYOTA |
| 028000-2662 | DENSO | 2810036040 | TOYOTA |
| 028000-2665 | DENSO | 2810036050 | TOYOTA |
| 028000-2680 | DENSO | 2810036051 | TOYOTA |
| 028000-2681 | DENSO | 2810036060 | TOYOTA |
| 028000-2682 | DENSO | 2810036070 | TOYOTA |
| 028000-3005 | DENSO | 2810036090 | TOYOTA |
| 028000-3006 | DENSO | 2810037011 | TOYOTA |
| 028000-3051 | DENSO | 2810040010 | TOYOTA |
| 028000-3052 | DENSO | 2810040011 | TOYOTA |
| 028000-3700 | DENSO | 2810040012 | TOYOTA |
| 028000-3710 | DENSO | 2810040013 | TOYOTA |
| 028000-3770 | DENSO | 2810040014 | TOYOTA |
| 028000-3800 | DENSO | 2810040040 | TOYOTA |
| 028000-3830 | DENSO | 2810040041 | TOYOTA |
| 028000-3840 | DENSO | 2810040050 | TOYOTA |
| 028000-3841 | DENSO | 2810040060 | TOYOTA |
| 028000-3842 | DENSO | 2810040061 | TOYOTA |
| 028000-3920 | DENSO | 2810040100 | TOYOTA |
| 028000-3950 | DENSO | 2810040110 | TOYOTA |
| 028000-3960 | DENSO | 2810040120 | TOYOTA |
| 028000-4030 | DENSO | 2810040130 | TOYOTA |
| 028000-4031 | DENSO | 2810040140 | TOYOTA |
| 028000-4032 | DENSO | ||
| 028000-4042 | DENSO | ||
| 028000-4270 | DENSO | ||
| 028000-4330 | DENSO | ||
| 028000-4331 | DENSO | ||
| 028000-4332 | DENSO | ||
| 028000-4440 | DENSO | ||
| 028000-4490 | DENSO | ||
| 028000-4491 | DENSO | ||
| 028000-4500 | DENSO | ||
| 028000-4600 | DENSO | ||
| 028000-4601 | DENSO | ||
| 028000-4640 | DENSO | ||
| 028000-4690 | DENSO | ||
| 028000-4691 | DENSO | ||
| 028000-4700 | DENSO | ||
| 028000-4750 | DENSO | ||
| 028000-4810 | DENSO | ||
| 028000-4811 | DENSO | ||
| 028000-4812 | DENSO | ||
| 028000-4820 | DENSO | ||
| 028000-5200 | DENSO | ||
| 028000-5201 | DENSO | ||
| 028000-5210 | DENSO | ||
| 028000-5290 | DENSO | ||
| 028000-5740 | DENSO | ||
| 028000-6420 | DENSO | ||
| 028000-6421 | DENSO | ||
| 028000-6422 | DENSO | ||
| 028000-6430 | DENSO | ||
| 028000-6510 | DENSO | ||
| 028000-6511 | DENSO | ||
| 028000-6801 | DENSO | ||
| 028000-7530 | DENSO | ||
| 028000-9020 | DENSO | ||
| 128000-1540 | DENSO |
